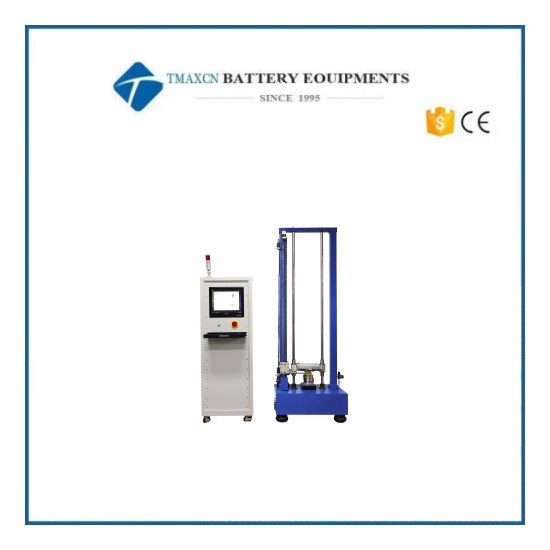

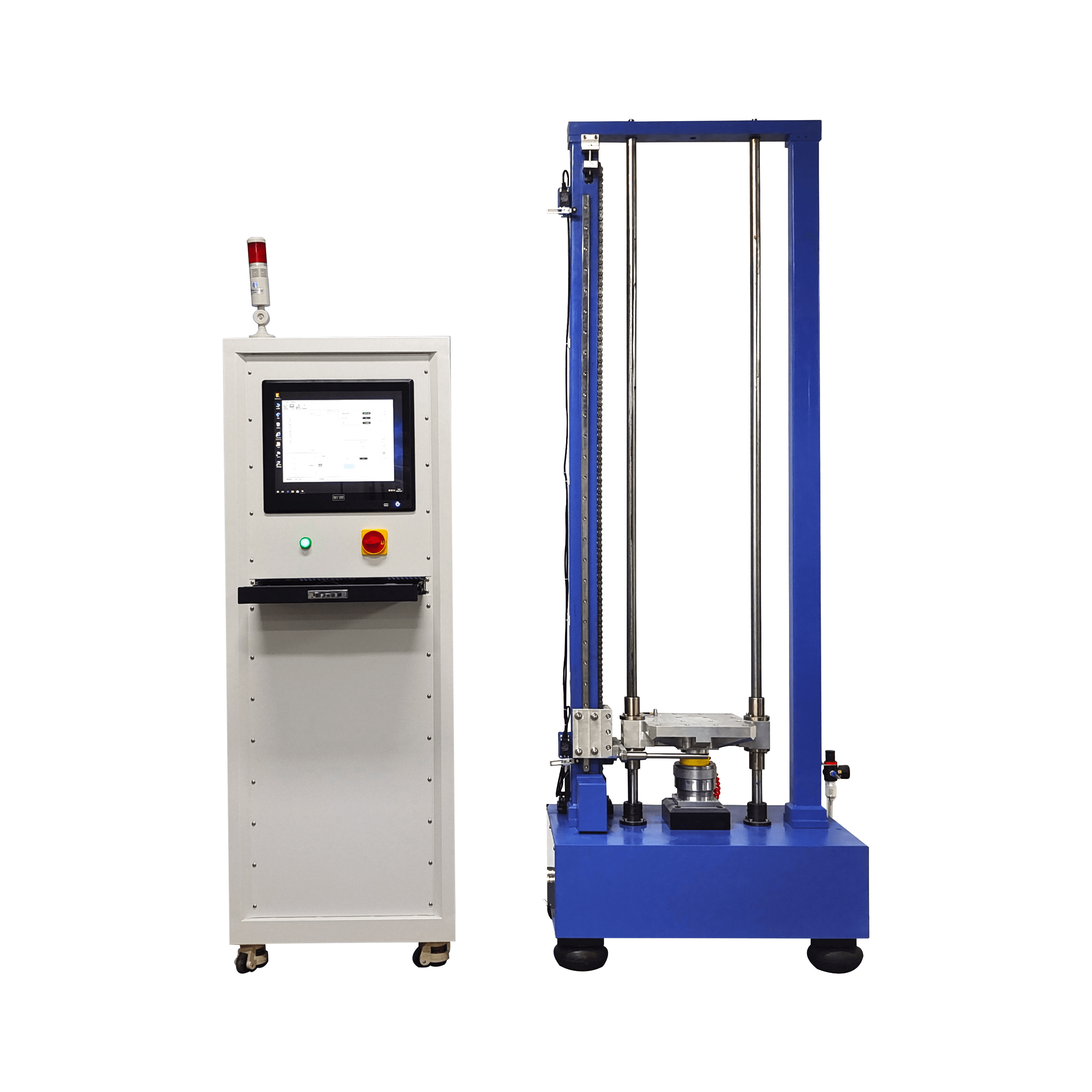

Laboratory Acceleration Impact Tester Machine For Single Cell And Battery Pack Safety Testing

Laboratory Acceleration Impact Tester Machine For Single Cell And Battery Pack Safety Testing

Introduction

1. This machine is suitable for electronic components, mechanical products and other equipment to provide simulated impact environment test, and can complete the relevant requirements of half sine wave pulse impact test according to the impact damage degree of the product during transportation and use. Test the ability of the test product to withstand impact damage. Often used in electronic components, electronic circuit boards and other environmental tests.

Scope of application:

Applicable to electronic components, instruments and mechanical products

Technical specifications

1. Table size: 500*500mm

2. Maximum load: 20kg (can be customized)

3. Maximum acceleration: 20~1500g

4. Pulse time: 0.5~20ms

5. Vibration waveform: half sine wave

6. Main controller: computer *1 set

Measurement system

Analysis software: The system has accurate,

Fast impact waveform capture capability

Power supply voltage

Equipment power: 5.2KW

Instrument power supply: AC220/380V 50HZ
