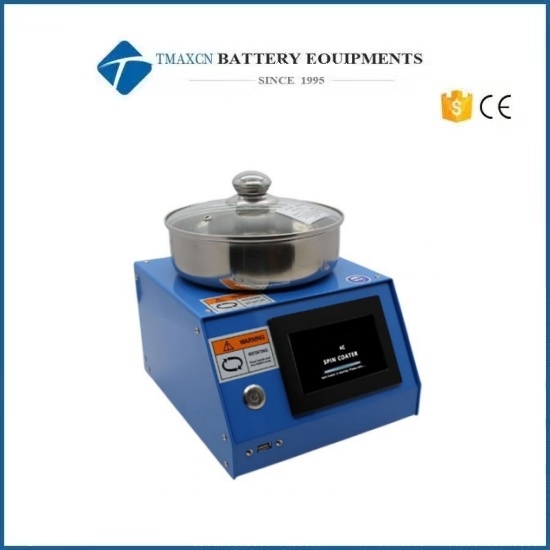

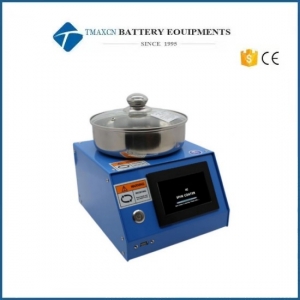

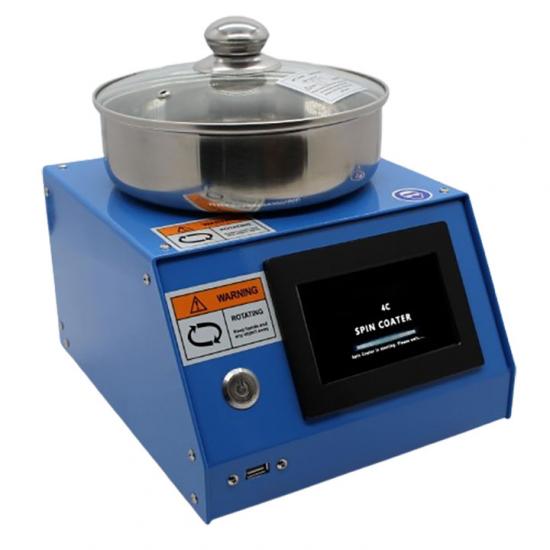

Laboratory 4.3 Inch Touch Screen Vacuum Coating Machine Spin Coater with Vacuum Chunk For Perovskite Solar Cells Line

Model Number:
TMAX-4C
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Laboratory 4.3 Inch Touch Screen Vacuum Coating Machine Spin Coater with Vacuum Chunk For Perovskite Solar Cells Line

Key Features：

1. Anti-flying protection and alarm

2. Anti-glue protection and alarm

3. Real-time monitoring of adsorption force, alarm if adsorption force is insufficient, prohibit starting if adsorption force is insufficient, stop immediately if adsorption force is insufficient

4. The motor can rotate forward and reversely

5. Formula with power-offprotection function

6. Adjustable acceleration (acceleration:10-10000RPM/S, speed range: 50-10000RPM)

7. With communication interface: USB, external mouse and keyboard, transfer recipes through U disk.

Spin Coater Specifications

Substrate size	5mm to 150mm（ 6 inches）
Speed range	50- 10000RPM
Acceleration range	10- 10000RPM/S， Adjustable
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Human machine interface	4.3 inch touch screen
Communication interface	can be connected to the wireless mouse and keyboard: the machine can be placed in the glove
Turn around	Can rotate forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Vacuum Pump	SC-550V
Set data	Unlimited group data, each group of 10 speeds (standard)
Seconds per period	0- 10000s
Storage data	Unlimited data
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	200W
Pump power	350W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Weight(Spin Coater)	10KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year

battery equipment
