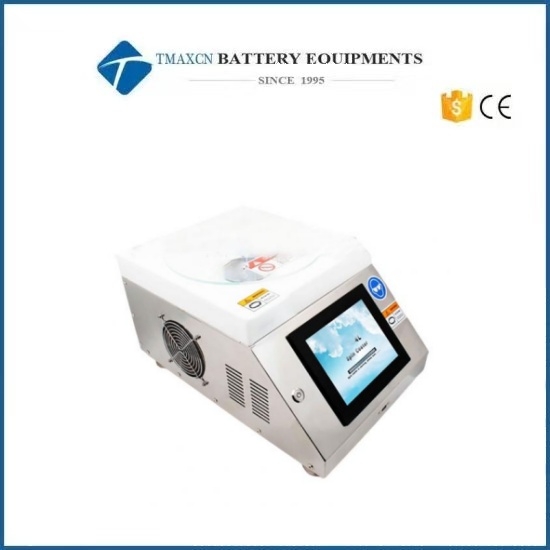

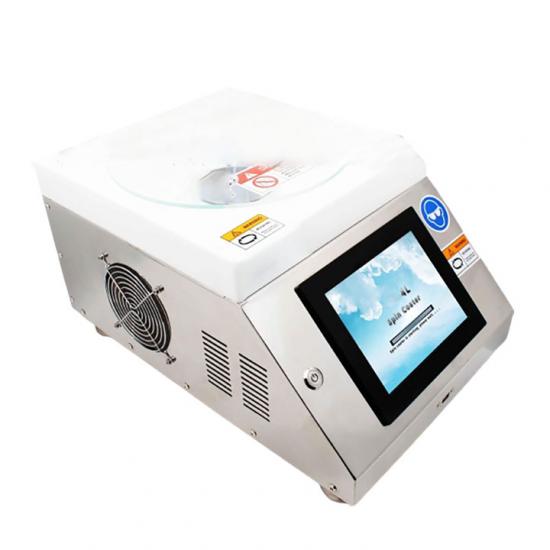

Lab Ultra-wide Speed Range Vacuum Coater Spin Coating Machine with Film Holder For Perovskite Solar Cells

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Key Features：

a. Bring glue protection and alarm

b. Insufficient adsorption alarm and interlock

c. The motor can rotate forward and reversely

d. With communication interface RS485, free remote communication software is provided

e. Can be connected to mouse and keyboard

f. Formula with power-offprotection function

g. The overall material of the chamber is PTFE

h. Actual ultra-wide speed range, 10- 12000 rpm, with RS485 communication, standard MODBUS-RTU protocol

i. The machine supports 24/7 uninterrupted work

Spin Coater Specifications

Substrate size	5-200mm (standard)/5-600mm (optional)
Speed range	10- 12000RPM (standard)/10-20000RPM (optional)
Acceleration range	10-30000RPM/S， Adjustable
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Human machine interface	8-inch touch screen
Communication interface	USB (standard), with RS485 communication(standard)MODBUS-RTU protocol, can be connected to wireless mouse and keyboard
Turn around	Can rotate forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Third-party options	Logitech wireless mouse/wireless keyboard/Kingston 2G disk
Vacuum Pump	SC-550V
Set data	Unlimited group data, each group of 15 speeds (standard)
Seconds per period	0- 10000s
Storage data	Unlimited data
Data protection	default with power-down protection
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	650W
Pump power	350W
Dimensions(Spin Coater)	340mm(W)X500mm(D)X250mm(H)
Weight(Spin Coater)	18KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year

battery equipment
