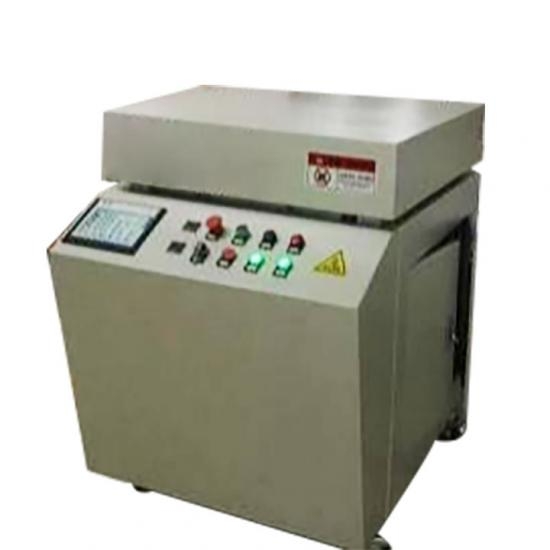

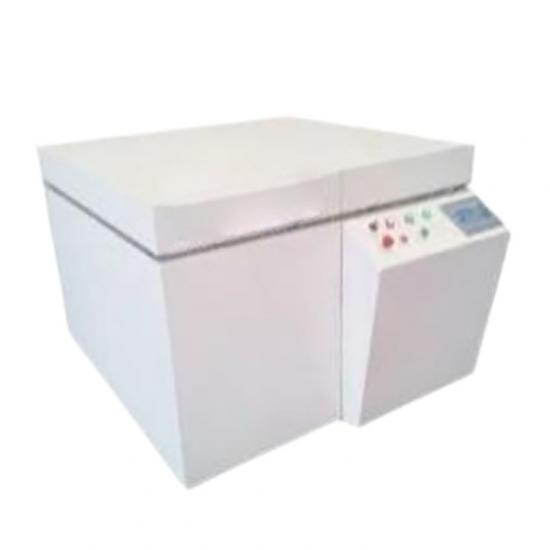

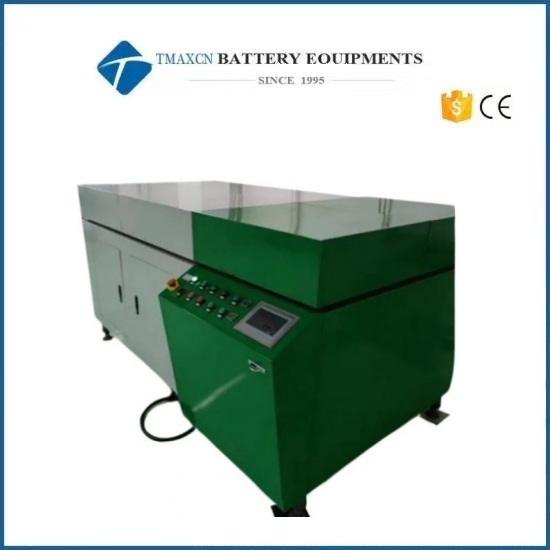

Lab Touch One-click Operation Lamination Electric Heating Vacuum Laminating Machine For Photovoltaic Industry

Model Number:
TMAX-YDS
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Lab Touch One-click Operation Lamination Electric Heating Vacuum Laminating Machine For Photovoltaic Industry

Lab laminating machine characteristics

1, Thin configuration, complete touch one-click operation, easy to use.

2, Special heating plate, simulate heat compensation, heating surface temperature is more uniform. Heating plate edge special temperature insulation protection strip to ensure that the heat is not lost.

3, Vacuum pump: according to the customer's different use environment: configuration of different vacuum pumps (Germany BUSCH, Leybold, South Korea woo sung, domestic)

4, No leakage point, full coverage chassis heating design, heating more uniform, faster heating.

5, Unique safety limit design, during the switch cover, the hand leaves the touch screen, the machine immediately stops.

6, CE certification enterprise, import Siemens PLC, Siemens touch screen,

7, Simple engineering mode: can display the number of lamination, can set the operator password, can independently design heating temperature, heating time, lamination pressure

Lab laminating machine specifications and models summary table

Model number	Laminated area (mm)	Overall dimensions (mm)	Peak Power consumption (KW)	Power consumption (KW)
YDS0405	400*500	10008001080	3	2
YDS0509	500*900	120011501080	6	3
YDS0707	700*700	13659801080	7	3
YDS1010	1000*1000	166512801080	11	5
YDS1314	1300*1400	196516801100	16	8
YDS1122	1100*2200	246018201245	22	10
YDS1525	1500*2500	276021901250	25	12

Testing machine parameters (YDS0707 as an example)

Equipment type	YDS0707	Lamination area	700X700mm
Overall dimension	1365×980×1080mm(height)	Equipment weight	0.7T(main engine)+0.2T(vacuum pump) or 38KG
Power source	380V; Three phases and five lines	Peak power consumption	7Kw
Vacuum pump speed	8L/S	Operating power consumption	3Kw
Control mode	Automatic/manual; Free switching	Limiting vacuum	50PA
Heating method	Electric heating	Temperature control mode	PID control
Maximum temperature	180 ℃	Temperature uniformity	Plus or minus 2 ℃
Operating temperature	Room temperature ~180℃	Temperature controllable accuracy	≤±2℃(at the specified temperature setting value)
Table unevenness	Roughness ≤300μm/m2	Bleeder rate	Continuously adjustable in the range of 0~50L/S
Compressed air pressure	0.5-0.8 MPA	Compressed air flow	5— 10L/S
Vacuum time	5-7 minutes	Lamination time	20 minutes
Operating vacuum	8 0~20Pa	Laminate chamber height	20mm
Cylinder stroke	400mm	Adapt to the environment	0 to 50 ℃

Testing machine safety

Power failure vacuum vent	In the case of power failure, the manual lamination can continue, and the air release handle can be moved to complete the air release.
Equipped with gas circuit outage protection	In the case of sudden power failure, the air circuit system is automatically sealed to prevent the cylinder from falling down the upper cover.
Emergency cover opening system	In the event of an emergency power failure and other abnormal conditions, you can manually open the upper cover and take out the component.
Set the emergency button	Emergency situations can be dealt with quickly and forced to cut off the power supply of the whole machine.
Safety can be maintained when the cover is improperly operated	Set the emergency button switch, press it when there is an accident, the laminating organ will cut off the main power supply, and the upper cover will remain in place.
Insufficient vacuum alarm	When the vacuum degree of the lower chamber fails to meet the set requirements, the system will alarm.
Insufficient air pressure alarm	When the compressed air pressure is too low, the system alarms

Testing machine equipment characteristics

Working mode	Automatic/manual choice of two working modes, automatic operation during normal work, high efficiency, good stability; Adjustment or other situations in a single step manual operation, simple and flexible
The upper cover is designed to prevent the folding of the rubber plate	Prolong the service life of the rubber plate more than twice, improve the flatness of lamination, reduce the fold of the panel.
Control technology	It integrates vacuum technology, pneumatic transmission technology, PID self-tuning technology, programmable control technology and relay control technology to realize all digital control of vacuum system, heating system and working process
Control system	Germany imported Siemens PLC, performance is extremely stable, reliable, high precision, truly in line with industrial automation control standards
Adjustable laminating pressure	The pressure can be adjusted at will, which can accurately control the laminating pressure and improve the level of three laminating processes. At the same time, high vacuum indicator, timely quantitative monitoring of the vacuum state of the studio, strong anti-interference performance, intuitive and reliable, to ensure the best lamination effect.
Heating platform	In the state of continuous 24 hours of high temperature operation, the plane of the heating platform is invisible. The unevenness of each square meter in the working area is less than 300μm. Suitable for lamination production of battery components.
Application characteristics	Can be laminated or cured, equipment production components compatibility; Suitable for general industrial environment and laboratory environment.
Portal type upper cover guard	When replacing the rubber plate, you only need to open it, without disassembling it.
The rubber plate of the air bag is fixed by flange	The rubber plate can be replaced quickly
Heating plate and vacuum chamber integrated	The heating plate works without deformation for a long time, and the vacuum degree of the lower chamber is high
