Lab Steel Ball/Glue Nail Sealing Machine Battery Prismatic Cell Sealer

1、 Equipment Overview

It is suitable for automatic vacuum pumping and steel ball sealing of steel/aluminum case square battery (the equipment can be placed in the glove box for use).

1. Equipment action process

The equipment adopts a left and right dual chamber dual station structure, and the battery loading and unloading and steel ball punching work simultaneously, Place the battery into the fixed fixture → The feeding cylinder sends the battery into the bead area (another fixed fixture retreats into the feeding position) → The sealing cylinder presses down to seal → Start vacuuming to -85~95Kpa (→ also on the other side of the battery) → Send a steel ball before the bead cylinder → The bead cylinder will be inserted → All mechanisms reset → Charge and compress the air to release the vacuum → The feeding cylinder sends another battery into the bead area and exits the completed bead battery at the same time;

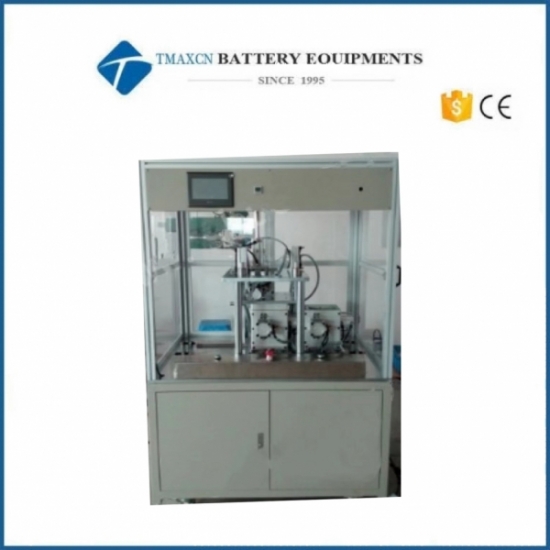

Overall structure (attached figure): The body size is approximately: L1200mm × W800mm × H1700mm (including rack)

(If necessary: installed in the glove box: the main body size is about "L1100 × W800 × H850mm ", the operation panel and control box can be placed outside the Glovebox.)

2、 Process performance

Left and right dual workstation upper and lower batteries, manual feeding method; Vacuum first, then apply steel balls; The steel ball storage tank has a certain capacity and is easy to operate; The vacuuming time and vacuum pressure value can be easily set on the panel; The upper and lower cavities are equipped with positioning devices to ensure the accuracy of bead casting; The initial fixture size and steel balls are suitable for the model provided in the order; The main components of the machine are all chrome plated, which is rust proof and corrosion-resistant; The independent control electric box is placed outside the Glovebox to avoid corrosion; Programmable controller PLC automatic control, human-machine display operation, intuitive and convenient; The entire machine operates safely, stably, with reliable control and convenient operation.

3、 Technical parameters

4、 General equipment configuration and standards

1. Equipment appearance color: International standard warm gray lC

2. Measure 40mm away from the outer wall of the machine, with equipment noise ≤ 60 db

3. The equipment complies with the relevant national safety standards for equipment, as well as all safety standards and requirements required by the buyer's relevant safety codes.

4. Attached are Chinese operation manuals and equipment maintenance manuals.

5. Randomly deliver electrical control diagrams, pneumatic control diagrams, and purchased component manuals, source program codes, and other materials for the equipment.

6. Provide a list and drawings of each component for equipment replacement.

7. Provide a list of vulnerable parts, including name, quantity of individual units, specifications or drawings, brand, estimated service life, and other information.

5、 Composition of main components of the equipment

6、 Main components

7、 Equipment can adapt to incoming materials and product specifications

Cylindrical battery: H (60-180) × Diameter (25-45) mm

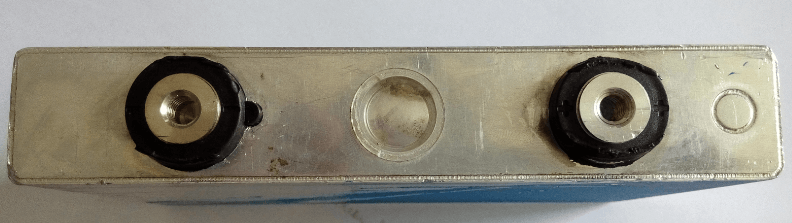

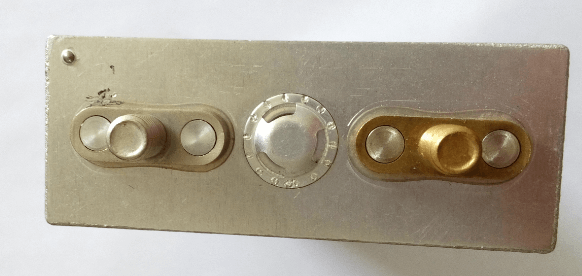

Square battery: H (60-280) × W (40-150) mm × T (15-60) mm

Note: When the diameter of the steel ball is fixed, the equipment replacement positioning fixture can be compatible with other sizes of batteries;
