Lab Ordinary Hydraulic Square/Rectangular Molds Long Strip Mold For Pellet Pressing
Model Number:
TMAX-OSMCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

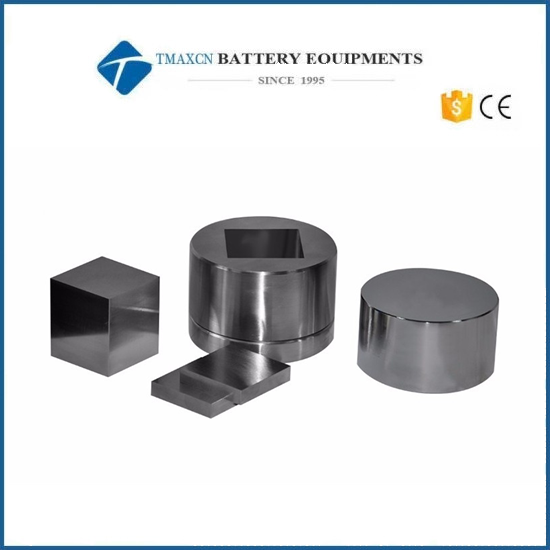

Lab Ordinary Hydraulic Square/Rectangular Molds Long Strip Mold For Pellet Pressing

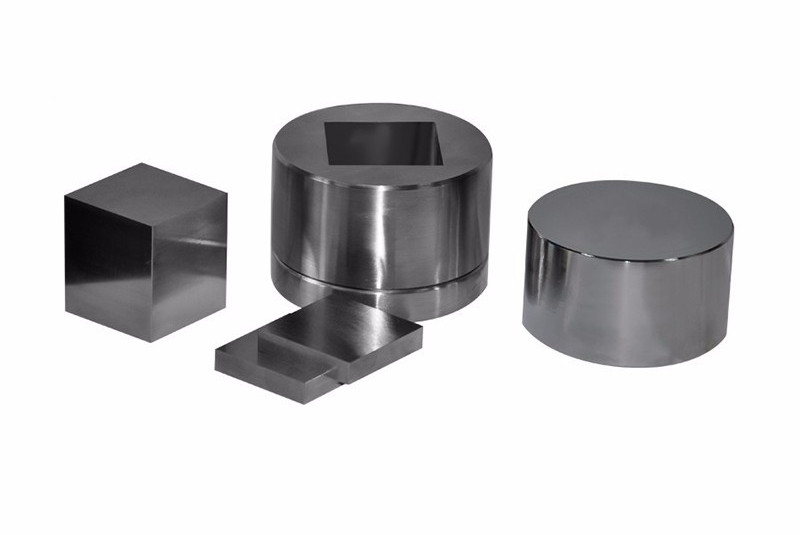

Ordinary square molds are suitable for some easy-to-shape slender powder samples. The mold can be used to form rectangular, square, and strip samples that meet customer requirements for laboratory research and analysis. General die size: 3-80mm, common size: 5-40mm, press sample size is customized according to user requirements. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.
Specifications
|
Name |
Ordinary Square Mold |
|||||||
|
Actual drawing of molding sample |
|
|||||||
|
Compressible sample shape |
Rectangle, long bar, square, triangle, etc. |
|||||||
|
Mold material |
Alloy tool steel:Cr12MoV |
|||||||
|
Hardness of die indenter |
HRC60-HRC62 |
|||||||
|
Sample size (≤) |
≤10mm |
≤20mm |
≤30mm |
≤40mm |
≤50mm |
≤60mm |
≤70mm |
≤80mm |
|
Mold cavity depth |
20mm |
30mm |
40mm |
45mm |
55mm |
60mm |
65mm |
65mm |
|
Mould dimensions |
Ф43×93mm |
Ф73×133mm |
Ф98×150mm |
Ф138×180mm |
||||
|
Ф53×120mm |
Ф88×150mm |
Ф118×180mm |
Ф158×180mm |
|||||
|
Mould weight |
0.65kg |
1.2kg |
2.4kg |
4.8kg |
7.3kg |
11.4kg |
20kg |
30kg |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|||||||
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
|||||||
