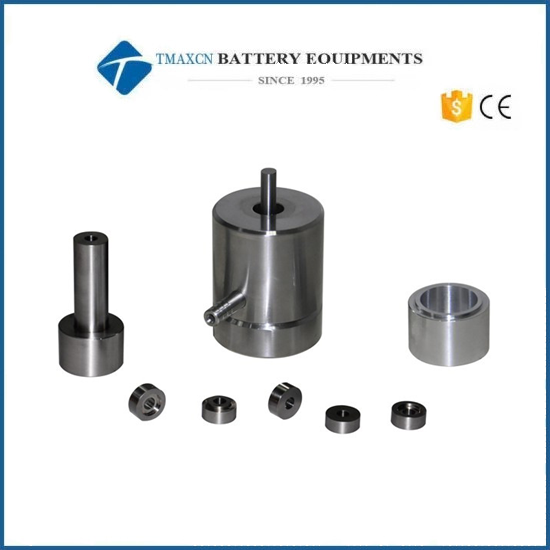

Dia3mm-Dia90mm Lab Ring Mold Hole Mold
Model Number:
TMAX-RMCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

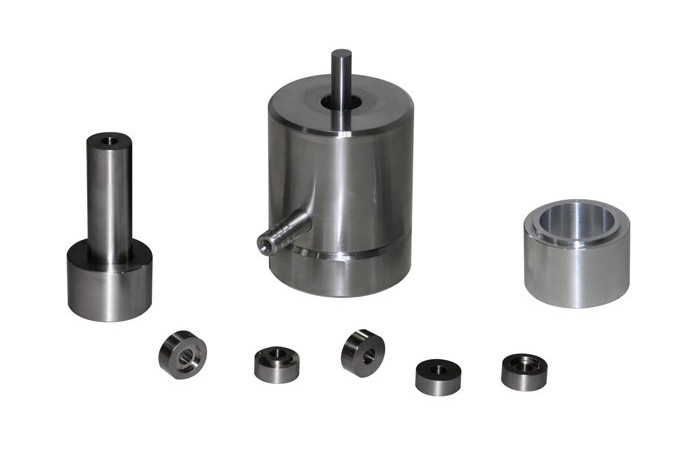

Dia3mm-Dia90mm Lab Ring Mold Hole Mold
This series laboratory-use ring molds are mostly used in the catalytic industry or for the molding of samples that require holes. Square and porous samples can be customized. Commonly used sizes: diameter Ф3-20mm, height 1-20mm, common mold specifications ：Outer circle and inner hole diameter, outer Ф7-inner Ф3mm, outer Ф10-inner Ф5mm, Ф12-inner Ф6mm, outer Ф20-inner Ф10mm, etc. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name |
Ring mold/Hole mold |
|
Actual drawing of molding sample |
|
|
Compressible sample shape |
Round hole shape, square hole shape or semi-arc hole shape, etc. |
|
Common mold specifications |
Outer diameter and aperture: Ф7-Ф3mm, Ф10-Ф5mm, Ф12-Ф6mm, Ф20-Ф10mm, etc. |
|
Mold material |
Alloy tool steel:Cr12MoV(Can be customized hard alloy steel) |
|
Hardness of die indenter |
HRC60-HRC62 |
|
Mold cavity depth |
40mm |
|
Mould dimensions |
Φ53*120mm |
|
Mould weight |
1.4kg |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
