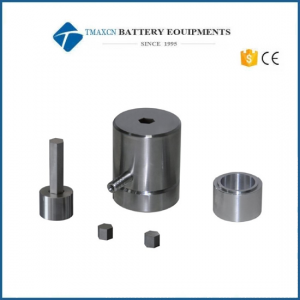

Lab Hydraulic Press Parts Polygonal Mold
Model Number:
TMAX-PMCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

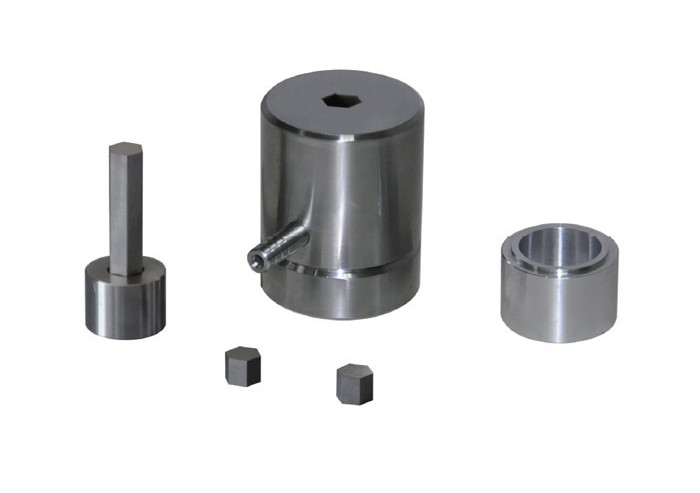

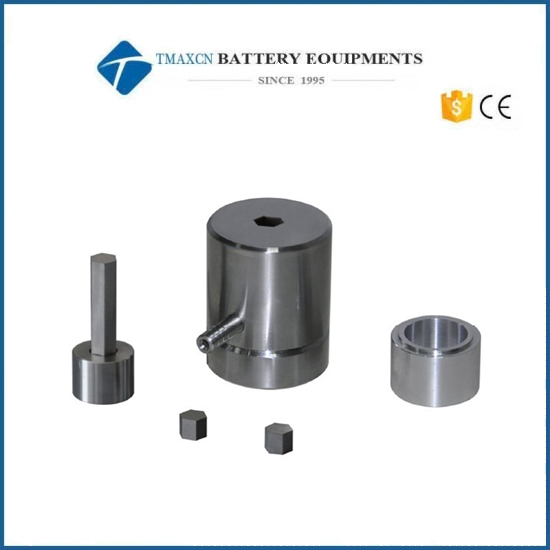

Lab Hydraulic Press Parts Polygonal mold
The polygonal mold used in the laboratory is to press the powder sample material into a polygonal sample through this mold, such as triangle, pentagon, hexagon, semicircle, etc. The commonly used tablet size is 3-20mm. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name |
Polygonal mold |
|
Actual drawing of molding sample |
|
|
Compressible sample shape |
Polygon, semicircle or other shapes |
|
Common mold specifications |
Between 3-20m |
|
Mold material |
Alloy tool steel: Cr12MoV (can be customized hard alloy steel) |
|
Hardness of die indenter |
HRC60-HRC62 |
|
Mold cavity depth |
40mm |
|
Mould dimensions |
Ф53×120mm |
|
Mould weight |
1.4kg |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
