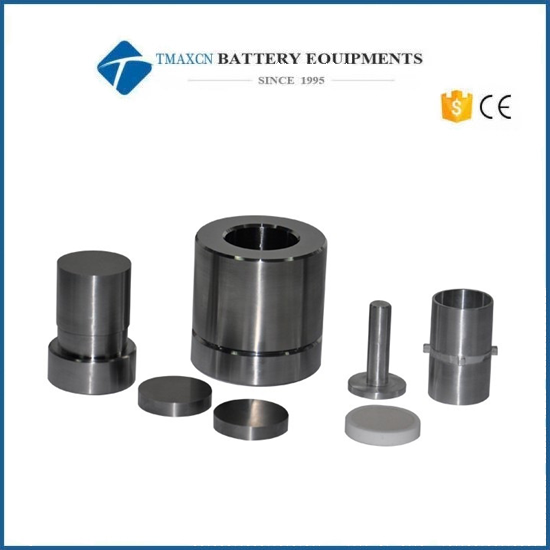

Lab Boric Acid Mold For X Fluorescence
Model Number:
TMAX-BAMCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

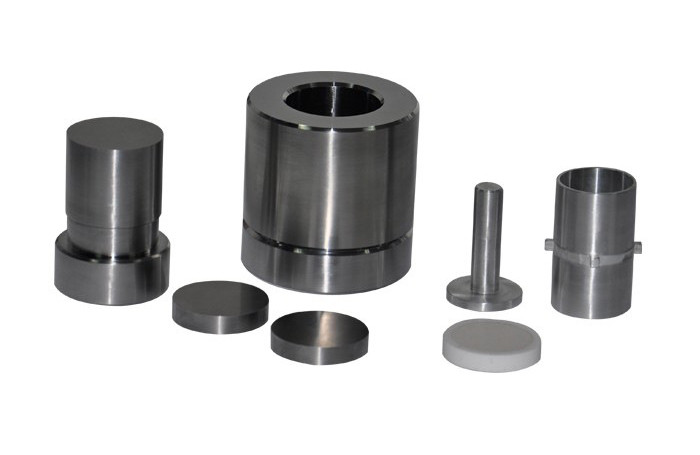

Lab Boric Acid Mold For X Fluorescence
The special boric acid mold for X fluorescence is to wrap the sample with boric acid powder and then press the powder to form it, which is mainly used for sample preparation and molding of X fluorescence spectrometer samples. At present, there are two common boric acid mold specifications on the market. First, the most common size is: Ф40-Ф32mm, that is, the outer diameter is Ф40mm, the sample size is Ф32mm, 40-32=8, that is, the boric acid size of the wrapped sample is 8mm. The second is: Ф32-Ф24mm, that is, the outer diameter is Ф32mm, the sample size is Ф24mm, 32-24=8, that is, the size of the boric acid wrapped sample is also 8mm. The sheet thickness is 5-8mm high. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name |
X fluorescence special steel ring mold |
|
Actual drawing of molding sample |
|
|
Compressible sample shape |
Cylindrical |
|
Common mold specifications |
Ф outer 32-Ф inner 24mm or Ф outer 40-Ф inner 32mm |
|
Mold material |
Alloy tool steel: Cr12MoV |
|
Hardness of die indenter |
HRC60-HRC62 |
|
Mold cavity depth |
45mm |
|
Mould dimensions |
Ф73×133mm |
|
Mould weight |
3.2kg |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
