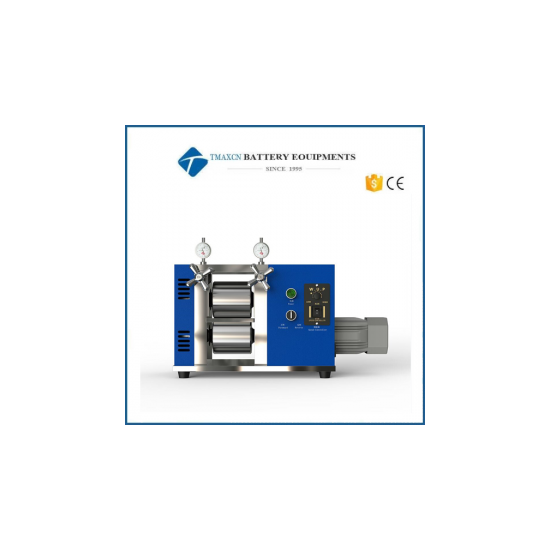

Diameter 100mm Electric Roll Press Machine for Lithium Battery Electrode Calender
Model Number:
TMAX-DGDimension(L*W*H):
Diameter 100/200mmNet Weight:
55kg(180lbs)Warranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Diameter 100mm Electric Roll Press Machine for Lithium Battery Electrode Calender
Roll Press Machine
1.Electric rolling press calendar machine for lab R&D2.Easy to operate
3.Roll Width:0-100mm width

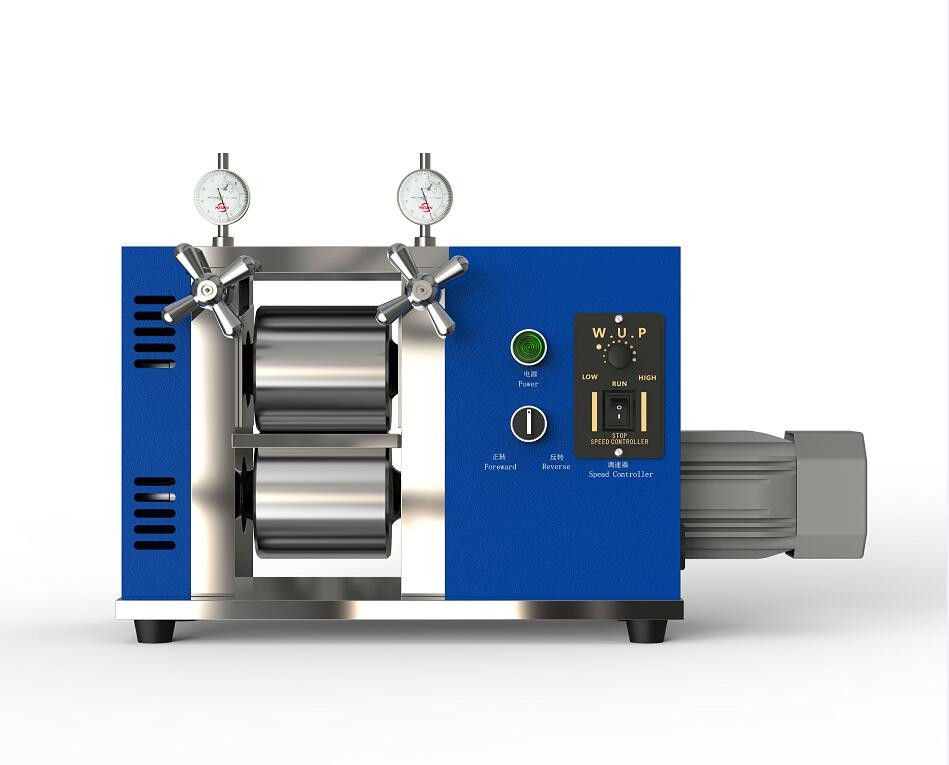

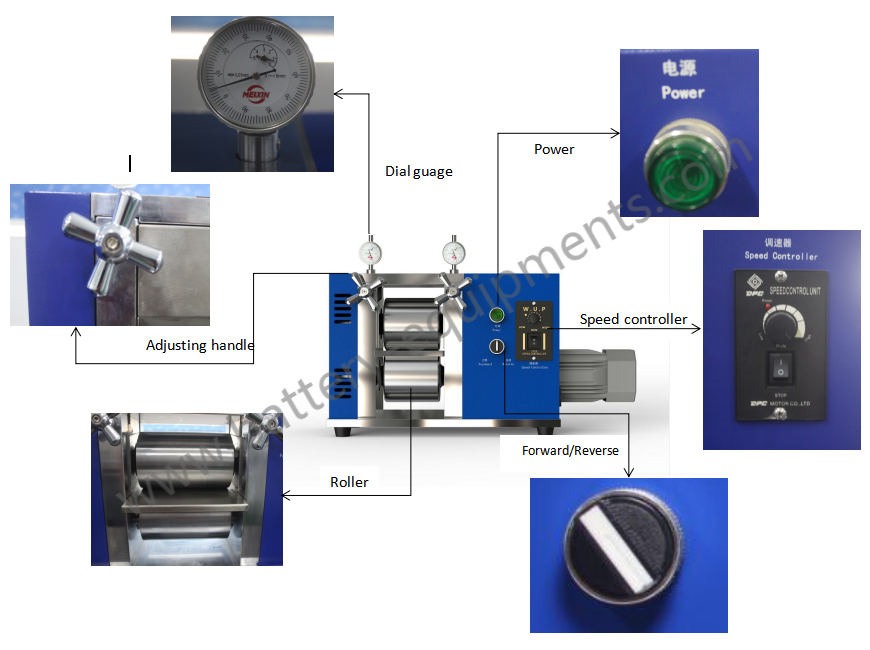

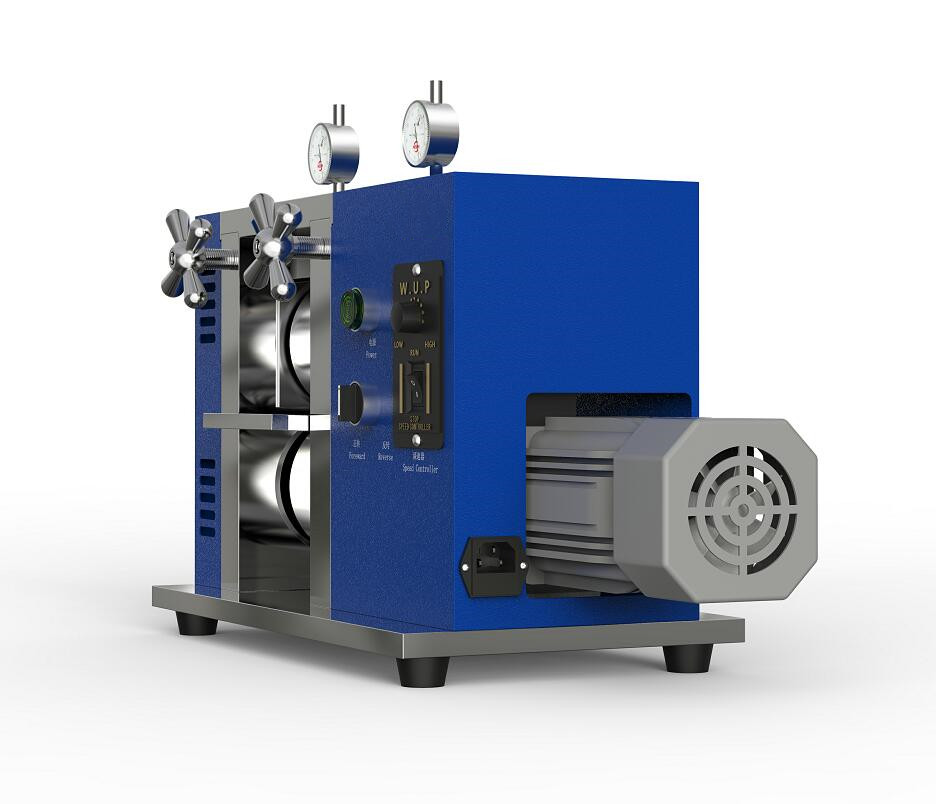

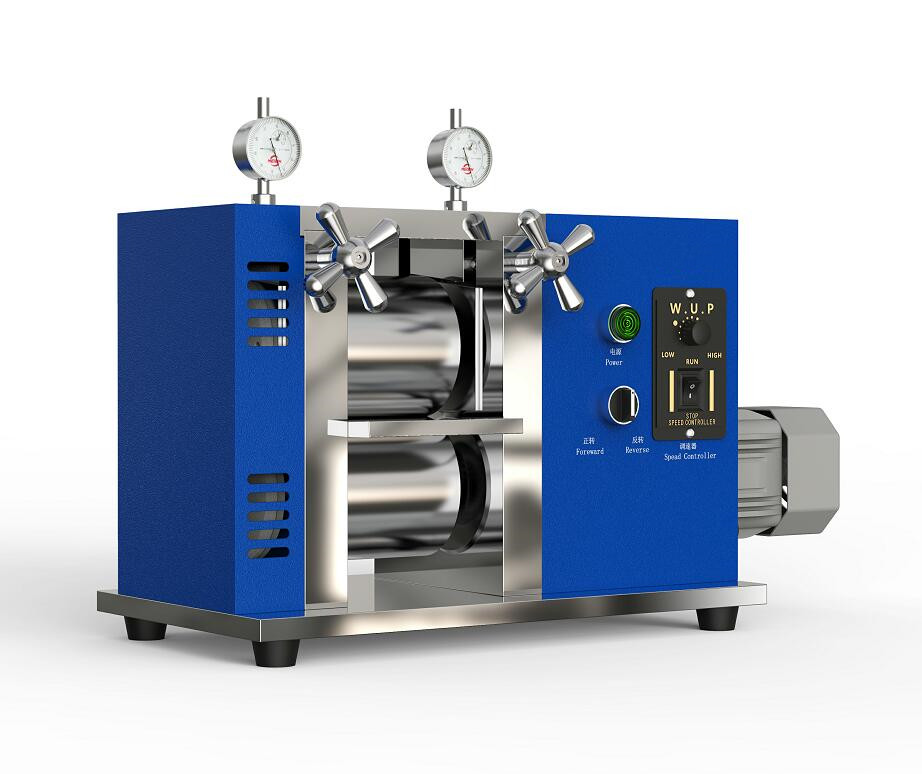

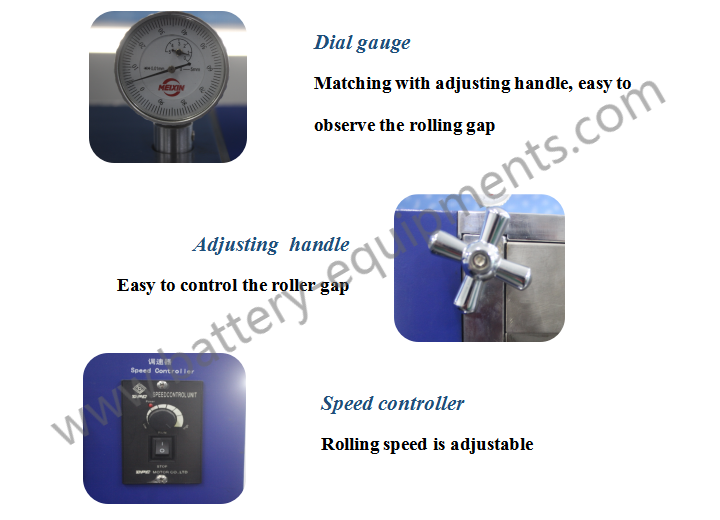

TMAX-ER100 Electric Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying. Also,this Electic Rolling press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.
|
ITEM |
Unit |
Data |
|
Size(L*W*H) |
mm |
385*245*355 mm (L*W*H) |
|
Weight |
kg |
45 |
|
Roll Width |
mm |
0-100 |
|
rolling width |
mm |
150 |
|
Calendering thickness |
mm |
0~2 |
|
Roller Diameter |
mm |
2-96mm (Dia) |
|
Dial Gauge Accuracy |
mm |
0.01 |
|
Rolling Speed |
mm/s |
0~10 |
|
Roller surface |
|
> 0.8 |
|
Total Power |
|
120W |
