Calender 200mm Hydraulic single electrode heat rolling press machine

  • Model Number:

    TMAX-GY200
  • Dimension(L*W*H):

    Diameter 100/200/300
  • Net Weight:

    approx 320kg
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
Email:David@battery-equipments.com
Wechat:13506084915
DESCRIPTION

Calender 200mm Hydraulic single electrode heat rolling press machine


I,Overview:

This type of roller press dedicated to small-scale lithium electrode film roll process, using single 220V power supply, suitable for the use of universities and companies test line.


II,Working Principle:

The equipment consists of high hardness pressure reducer motor-driven roller, mechanical adjustment roller gap, pole piece will be made Compression  molding, increased the density of the pole piece of quality. Using the industry's leading heating system and PID temperature control system, rapid heating, uniform temperature control accuracy, when the temperature reached, it can thermostat automatically.


III,Technical Parameters:

1.Rated voltage/power:220v/2.6kw.

2.Pressure roller size: Φ200mm×W300mm.

3.The roll surface hardness: HRC62.

4.Cylindrical roller degree: ≤±0.005mm.

5.Effective gap: 0-1.5 mm (adjustable).

6.Working speed: stepless speed, line speed 0-1.5 m/min (adjustable).

7.The working width: 0-- 300mm.

8.The roll surface quenching depth: 5mm.

9.Temperature: room temperature to 150 ℃

10.Net weight: approx 320kg.

11.Overall size: approx 950 (L)×500(W)×1060(H)mm.

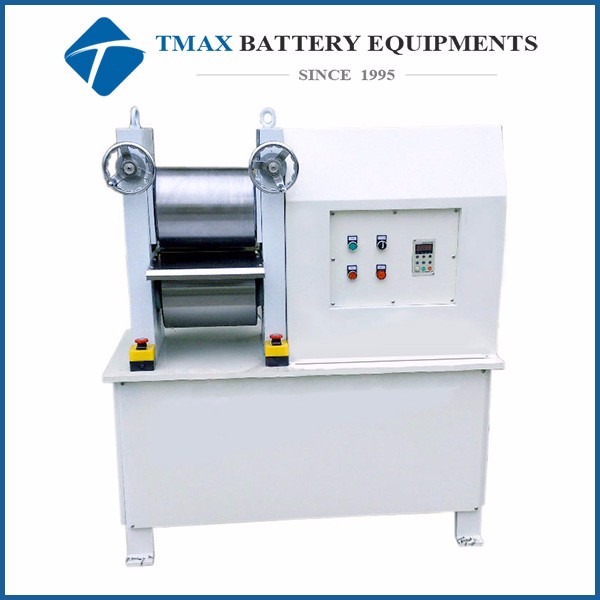

 electrode calendaring machine


Rolling Press Machine

Rolling Press Machine

Rolling Press Machine
