Customized Materials Dry Electrode Sheet Film For Supercapacitor Production
Model Number:
TMAX-Electrode-7Dimension(L*W*H):
CustomizedCompliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Customized Materials Dry Electrode Sheet Film For Supercapacitor Production
TMAX provides the dry electrode film for supercapacitors manufacturing and research.
MOQ: 400m/roll, 100m2/roll (Determine based on customization)
Main raw materials: activated carbon，aluminum foil (20C054)
|
Main parameter |
|
|
Item |
Parameter |
|
Appearance |
Appearance without abnormal incisions, scars, protrusions, and neat winding |
|
Thickness |
250±10 μm |
|
Compacted density |
≥0.66g/cm3 |
|
Moisture content |
≤3% |
|
Total width |
250±1mm |
|
Coated width |
220±2.0mm |
|
Foil thickness |
20±2um |
|
Outer diameter of electrode coil |
≤400mm |
|
Inner diameter of winding shaft |
75.5±1mm |
|
End face flatness |
±1mm |
|
Length of joint adhesive tape |
≤60mm |
Packaging and transportation
Packaging material: cardboard box.
Packaging method: Vacuum sealed packaging.
Pay attention to moisture-proof, waterproof, and light proof storage.
Transportation requirements: prevent collision, compression, moisture, sun protection, and damage.
Storage environment(electrode packaging in sealed state)
Temperature: -40 ℃~60 ℃
Relative humidity: 75% RH Max
The shelf life: 12 months.

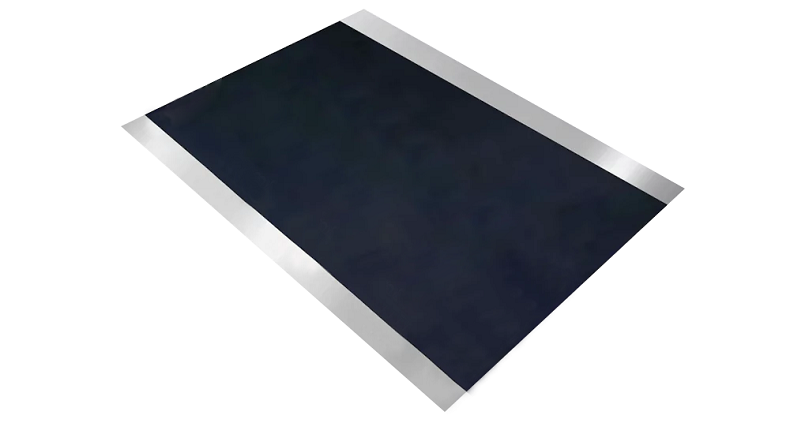

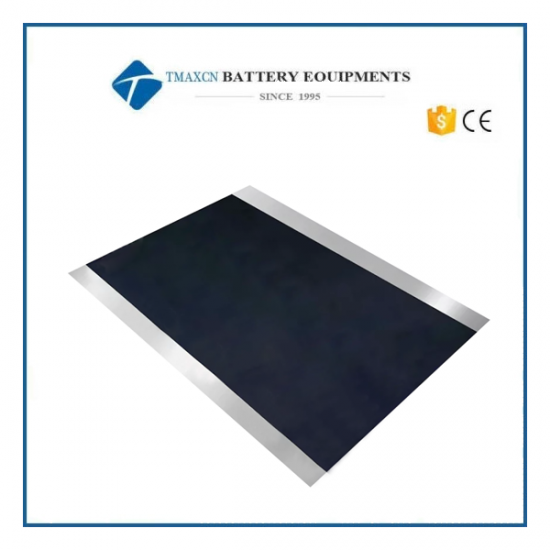

Ⅳ、Product Display：

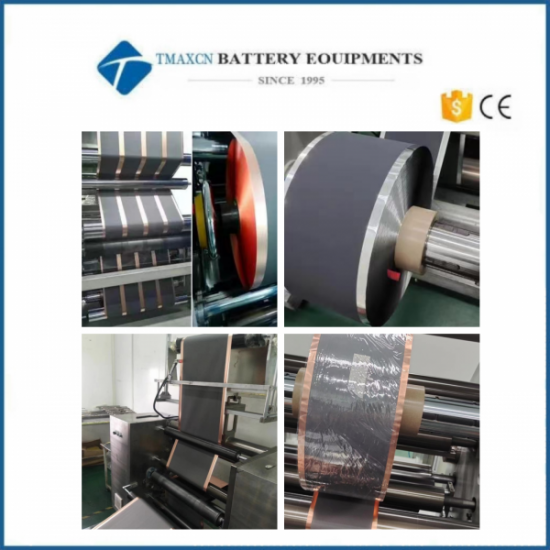

Ⅴ、Production Machine:
Ⅵ、Package:
