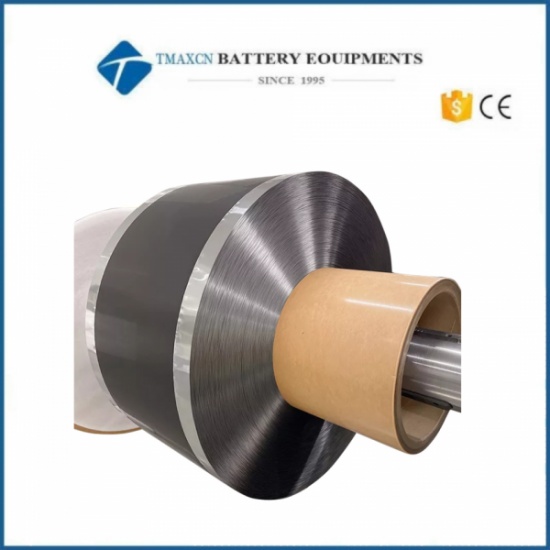

Customized Battery Anode Electrode For Lithium Cell Current Collector Substrate

Model Number:
TMAX-Electrode-6
Dimension(L*W*H):
Customized
Compliance:
CE compliant
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Customized Battery Anode Electrode For Lithium Cell Current Collector Substrate

Ⅰ、Introduction:

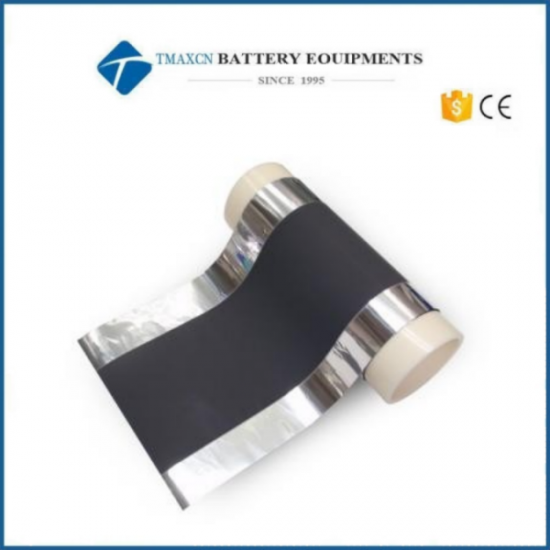

This electrode sheet is based on copper foil coated by carbon in double side, and is used as the anode electrode of Li-Ion battery.

Ⅱ、Product Parameters:

Current collector (substrate): Copper foil, 9 micron
Anode material: Composite Graphite
Active powder SSA (BET): 3~5 m^2/g
Binder: SBR+CMC
Double sides active material density: 120g/m2
Active Material Weight: 5.0176g
Active Material Proportion in Powder: 95.70%
Length: 241mm*Width: 200mm
Total Thickness: 110 um +/- 8 um
Foil Thickness: 10 um +/- 3 um
Coating Thickness:100 um +/- 5 um (double sized coated)

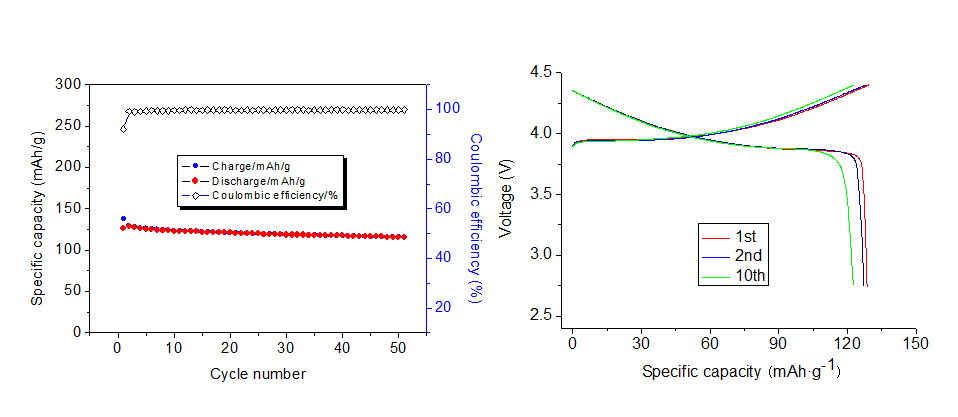

Specific Capacity: 330mAh/g
Net Weight: 14 g
Double side coated

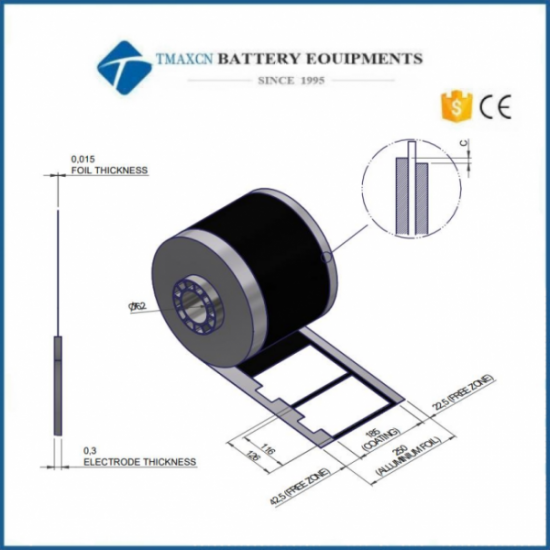

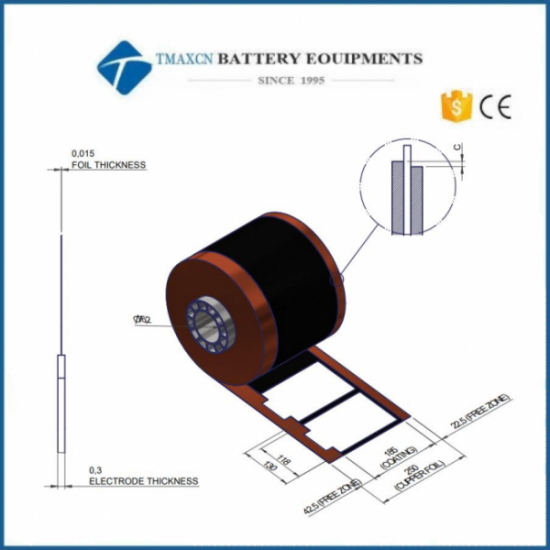

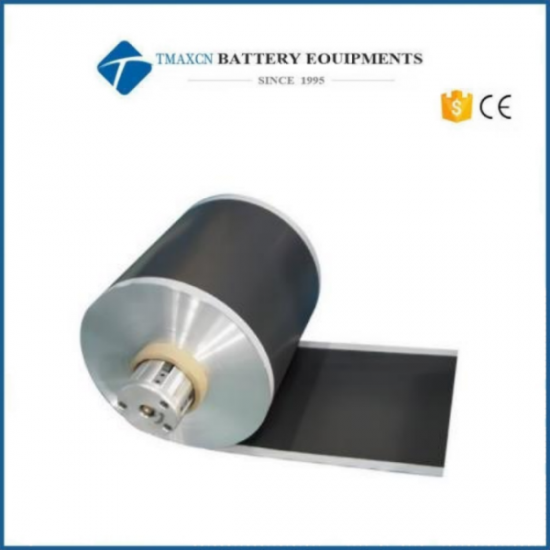

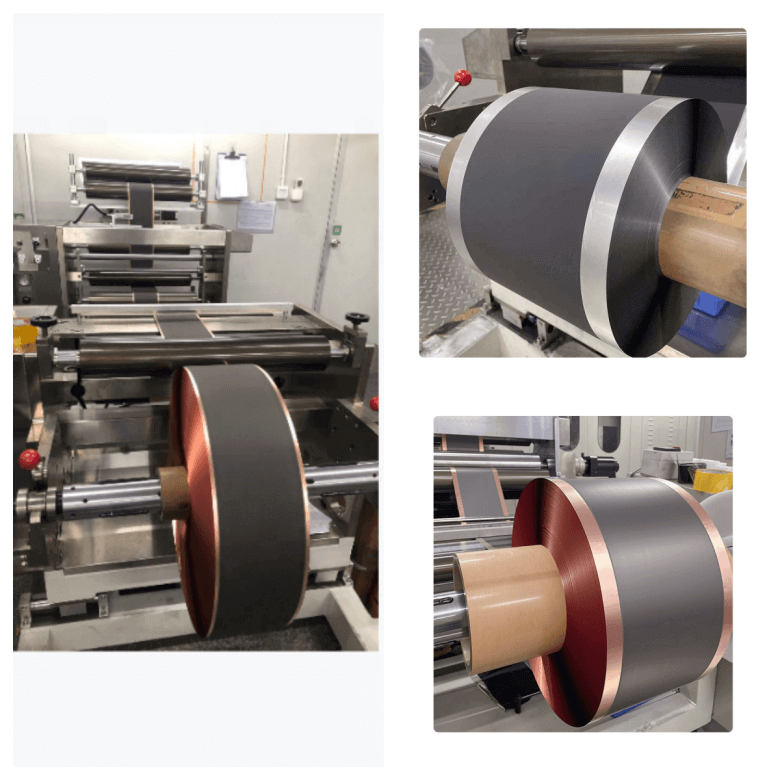

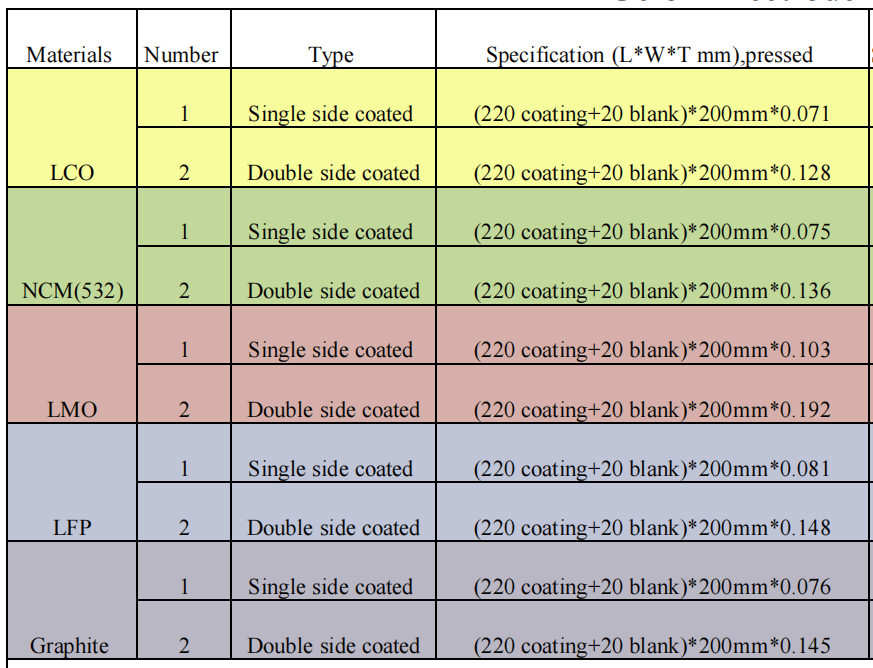

Both cathode and anode electrode can be customized in rolls .

Specification:

Specification (lengthwidththickness)mm	single side coated	2412000.052
	double side coated	2412000.092
Areal density(g/m2)	single side coated	60
	double side coated	121
Active substance(g)	single side coated	2.41
	double side coated	4.85
Gram capacity ratio	single side coated	340
	double side coated	340
