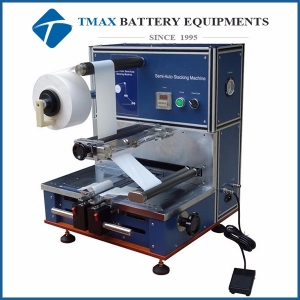

Laboratory Semi-auto Battery Electrode Stacking Machine for Pouch Cell Assembly

2021-03-19

Specification

TMAX-TCH-DPA semi-auto electrode stacker is suitable for lithium battery Z-type lamination process. The device is equipped with correction device, diaphragm release tension control device and auxiliary positioning device, PLC control panel. Only need to manually feeding the electrodes, through the control button to control the cylinder to complete the stack. Simple operation and high efficiency. It's an ideal machine for pouch cell assembly.

Model	pouch cell Z-fashion stacking machine TMAX-TCH-DPA
Warranty	Two years limited and list time support
Maximum Separator diameter	φ220mm
Applicable electrode size	L(0 ~ 210) mm, W(55~ 260) mm
Separator width	200mm
Correction accuracy	0.05mm
Power supply	AC220V / 50Hz
Compressed air source	0.5MPa ~ 0.7MPa
Dimension	606070cm
Net Weight	80 kg
Packing size	767695cm
