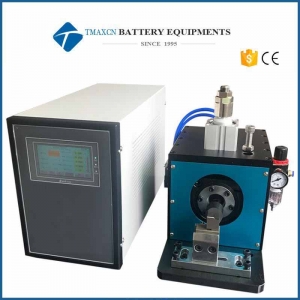

Ultrasonic spot welding machine is an advanced high-tech equipment that converts high-frequency electric energy into a mechanical vibration energy through a transducer and acts on the bases material, to generate high-frequency friction between the surfaces of the two work-pieces until the surfaces of the two bases material are heated and welded together. It can perform spot-like and strip-shaped soldering on thin materials such as copper, silver, chrome, nickel and other conductive metals. It can be widely used in lead wire of silicon controlled chip leads, fast-fuse holders, electrical lead terminals, lithium ion, nickel p oint-like, strip-shaped soldering of poles such as hydrogen and nickel-cadmium batteries.

The welding process of an ultrasonic spot welder is a mechanical process in which no current flows through the material and no melting occurs. Moreover, the same or the different alloy materials can achieve the ideal welding, the electrical and the thermal properties are not achieved by other processes. Compared with fusion welding, ultrasonic welding has low electrical consumption, long life and low laborintensity. It's suitable for lithium ion polymer battery lab set up.

Specification

1. Function Introduction

1.1 Controller: The circuit adopts international advanced full-bridge voltage regulator circuit and is optimized to achieve constant amplitude output and automatic frequency tracking without manual adjustment. Adopt intelligent control mode, covering modes such as time, energy, power, energy and depth.

1.2 the welding head is made of imported alloy steel, high hardness, the pattern is made of high-precision grinding, the service life is very long, and the single side is more than 100,000 times.

1.3 ultrasonic under the sound pole, strict selection of imported special mold steel, wear resistance, high temperature resistance, good toughness, high mechanical rigidity, small deformation after heat treatment, so the ultrasonic output frequency consistency is high, the mechanical high frequency displacement amplitude is large, strong, stable.

1.4 welding effect: welding is firm, low internal resistance, no soldering, no vibration powder, no burning diaphragm, no hot insulating rubber, no cracking pole piece, the residual welding surface between metal and metal is more than 80%. The surface after welding is flat, no wrinkles, no burrs on the back, the solder joints are full and clear, firm and reliable, the solder joints are not broken, and the tensile strength can be tested according to different layers and materials.

1.5 4.3-inch anti-jamming touch display, bilingual in Chinese and English, friendly interface, easy to operate, with the following parameters can be set: trigger time, welding time, power, secondary wave delay time, real-time display frequency and welding power to ensure welding Effect, fault type alarm, etc.

1.6 boot automatic detection function: the welder has a power-on self-test detection function, scan welding system parameters and display in real time, if there is a fault, issue an alarm prompt to avoid working under fault conditions.

1.7 Welding quality data auxiliary function: According to the real-time welding data parameters, the upper and lower amplitudes of the welding parameters can be set to monitor the quality of each welding product, and the upper and lower amplitudes are biased.

1.8 Amplitude automatic compensation function: The welding machine has automatic amplitude compensation function, which can automatically adjust the amplitude output to make the amplitude output more stable, improve the welding stability and ensure the consistency of welding quality.

Technical Parameters
