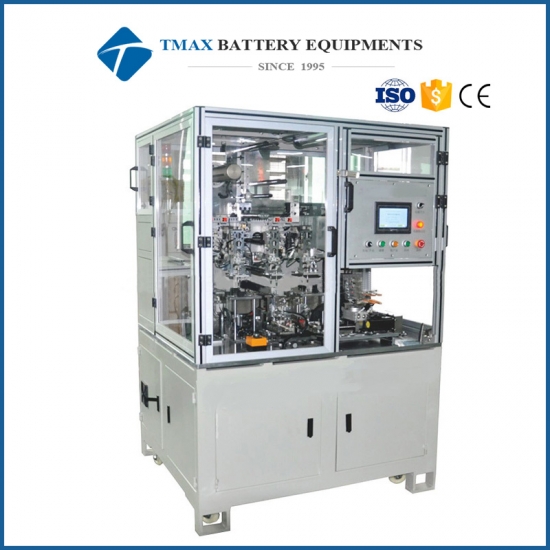

Automatic Electrode Z-Stacking Machine For Lithium Battery Electrode Assembling
Model Number:
TMAX-DP-150Type:
Electrode Stacking MachineDimension(L*W*H):
Length : 80-150mm Width : 30-90mm ThicknessNet Weight:
800kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

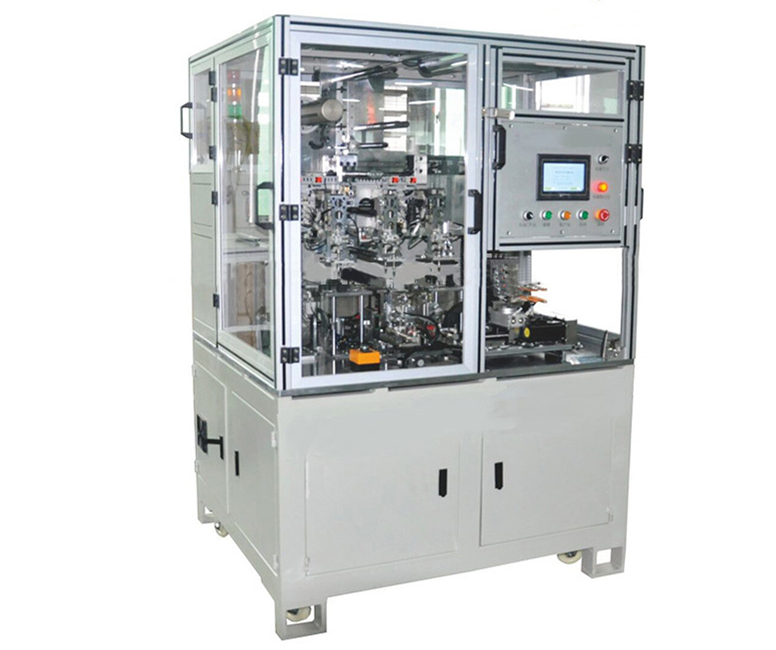

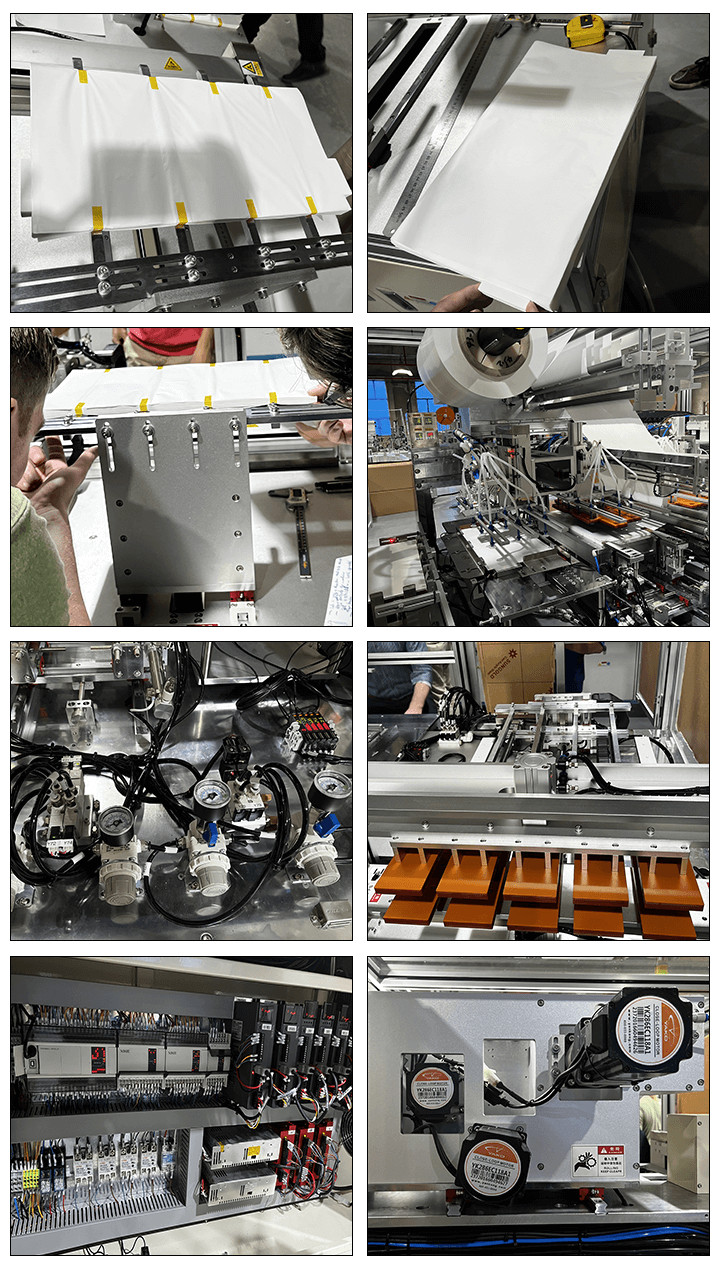

Automatic Electrode Z-Stacking Machine For Lithium Battery Electrode Assembling
SPECIFICATION
TMAX-DP-150 is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.
Advanced Features:
1 PLC Touch Screen Control with easy condition setting
2 Continuous "Z" fashion stacking with a separator
3 Auto electrode pick-up & stacking via vacuum suction manipulator
4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.
5 Unreeling rotors for separator film feeding
6 Auto-tension control for separator film delivery
|
Model |
Semi auto stacking machine TMAX-DP-150 |
|
|
Suitable battery size |
Thickness H (mm) |
5-20 |
|
Width W (mm) |
30-90 |
|
|
Length L (mm) |
80-150 |
|
|
Tab length Q (mm) |
Q≤20 |
|
|
Tab width (mm) |
≤20 |
|
|
Technology parameter |
Stacking speed |
1.3-1.5s/pcs |
|
Registration accuracy |
±0.5mm |
|
|
Stacking quantity |
Can be set |
|
|
Percent of pass |
≥98% |
|
|
Power |
4kw |
|
|
Weight |
800kg |
|
|
Dimension (L*W*H) |
1250*1150*1850mm |
|
|
Materials size |
Electrode |
Length : 80-150mm Width : 30-90mm Thickness : 0.07-0.25mm |
|
Tab |
Length : ≤20mm Width : 8-20mm |
|
|
Separator |
Length : in roll Width : 90-150mm Thickness : 0.02-0.04mm Inner diameter : φ76.2mm Max out diameter : φ300 |
|
