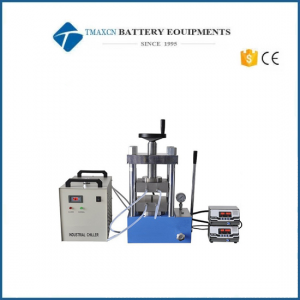

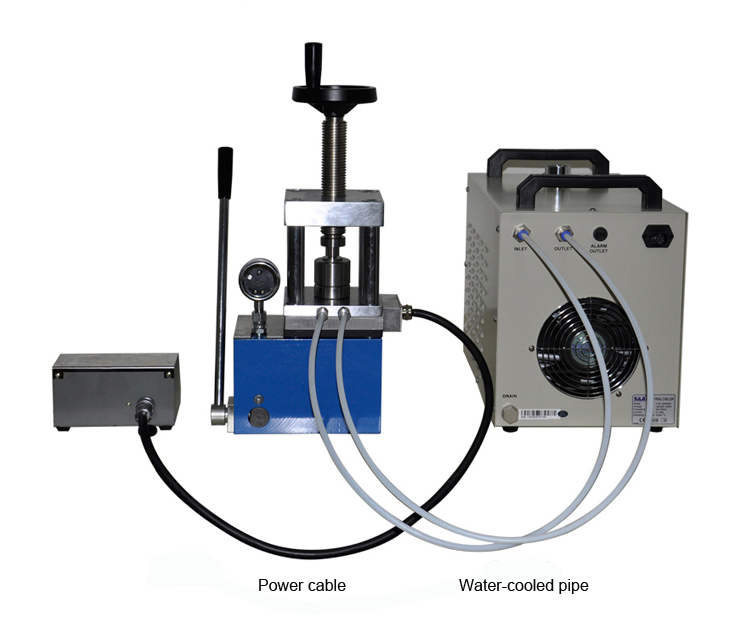

500℃ 30T Lab Manual High Temperature Heating Press Machine
Model Number:
TMAX-RT-600DNet Weight:
180kgWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
500℃ 30T Lab Manual High Temperature Heating Press Machine
The maximum temperature of the double-plate hot press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.
It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.
It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.
It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.
Technical parameters
|
Product Name |
Lab Hot Press Machine |
|
Module |
TMAX-RT-600D |
|
Pressure range |
0-30T(0-34MPa) |
|
Piston diameter |
φ150mm Chrome plating cylinder |
|
Standard pressure gauge type |
Indicator/pointer type, Ton and Mpa double-scale display |
|
Optional pressure gauge |
Digital display 0.00-40.00 MPa, accuracy 0.01 MPa |
|
Pressurization method |
manually pressurization |
|
Temperature controller |
PID temperature controller |
|
Temperature control range |
RT-600.0℃ |
|
Heating temperature of die |
RT-500.0℃ |
|
Temperature control accuracy |
0.1℃ |
|
Insulation plate |
Imported insulation plate |
|
Cooling mode |
Water cooling (water cooler is optional) |
|
Overall structure |
Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point |
|
Heating die size |
Double Heating Plate, 180 x 180mm or 200 x 200mm |
|
Power supply power |
220V/1000W |
|
Main machine dimensions |
405 x 260 x 525mm (excluding optional parts) |
|
Overall dimensions |
970 x 470 x 525mm |
|
Machine weight |
About 180kg |
|
Note |
Workspace can be increased according to customer's actual needs. Special hot press can be customized according to user needs |
