300℃ 25T Lab Automatic High Temperature Double Heating Plate Hot Press Machine
Model Number:
TMAX-RYJ-300Type:
AutomaticDimension(L*W*H):
420×550×680mmNet Weight:
300kgCompliance:
CEWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

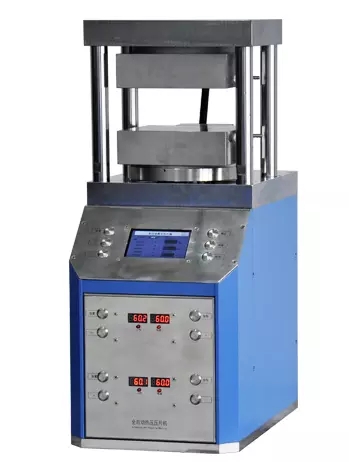

300℃ 25T Lab Automatic High Temperature Double Heating Plate Hot Press Machine
Features
RYJ-300 automatic high temperature hot press is an integrated, widened and double plate high temperature hot press developed on the basis of the original manual hot press and fully automatic split hot press. This kind of hot press has a wide range of applications, meeting the needs of some customers for large tonnage pressure and large area sample heating.
The hot press is mainly used in some laboratories and units that need to prepare or test powder samples, particle samples, plastic films and other solid samples at high temperature and high pressure. After being heated and pressurized, the chemical stability of the sample particles or powder is improved, which is not easy to be broken and is conducive to cutting and preservation.
It is perfectly suitable for engineering and technical personnel of colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.
Technical Parameter
|
Pressure range |
0-25T |
|
Pressurization process |
Program Pressurized--Holding pressure--Pressure relief |
|
Pressure holding time |
0-999s |
|
Thermostat temperature control |
RT-600℃ |
|
Abrasive heating temperature |
RT-300℃ (recommended temperature is not more than 450 ℃) |
|
Temperature control accuracy |
0.1℃ |
|
Control mode |
LCD display |
|
Pressure control |
Automatic controlled by program |
|
Temperature control |
PID Controlled |
|
Equipment insulation method |
Imported heat plate + stainless steel water-cooled heat plate |
|
Mold cooling mode |
Water cooling quick cooling (water cooler is optional) |
|
Machine structure |
Integrated structure, fully automatic temperature and pressure control |
|
Number of heating dies |
Up and down 2 flat plates total, polished surface |
|
Platen Area |
200 x 200mm or 300 mm x 300 mm |
|
Machine dimensions |
420×550×680mm |
|
Power supply |
220V/4000W |
|
Machine weight |
About 300kg |
