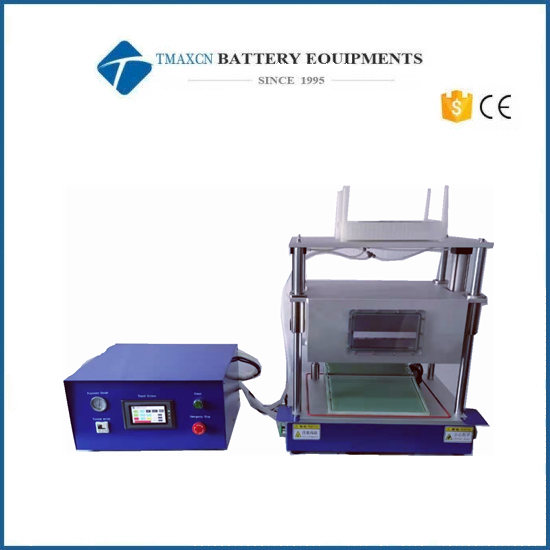

3 In 1 Vacuum Sealer For Pouch Cell Presealing Diffusion And Degassing

Model Number:
TMAX-YFJZ200
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

3 In 1 Vacuum Sealer For Pouch Cell Presealing Diffusion And Degassing

Introduction

This equipment is mainly suitable for pre-sealing and standing of soft-packaged lithium batteries

Main feature

*The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;

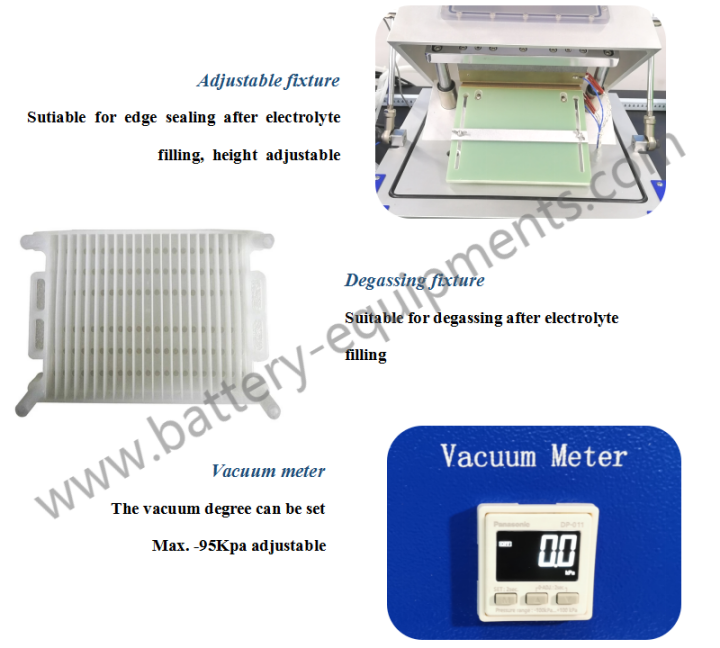

*Various functions such as vacuum pre-sealing and vacuum diffusion and degassing;

*The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;

*The upper and lower heads are driven by air cylinders and guided by two linear guide sleeves, which are flexible up and down and guided accurately

Ensure the parallelism requirements of the product after edge sealing;

* Through the perspective window, you can observe the changes in the cavity while working.

*The cover cavity is driven by an air cylinder and guided by a rotating guide sleeve, which can move up and down flexibly, and the guiding is accurate to ensure the product's tightness requirements.

*It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

*The main unit and the control box are separated design, so that the machine can work in the glove box or on the assembly line.

*Easy to operate, beautiful appearance, small size and light weight.

Technical parameter

Head temperature	RT-250℃, adjustable
Temperature control accuracy	±2℃
Heat sealing pressure	0～7Kg/cm2 adjustable
Heat sealing time	0～99 seconds adjustable
Edge banding width	5mm (customizable)
Maximum battery size during pre-sealing	length 200mm without tabs X width 215mm with air pockets
Maximum battery size when diffusion and degassing	length 300mmX width 200mmX height 175mm
Seal thickness accuracy (mm)	package thickness difference between any two points <15um
Air consumption	About 0.2L compressed gas / once per seal
Pneumatic working speed	≥180 times/h
Power	Using 500w heating tube, the power consumption when heating is about 1KW
Power supply	220V/50Hz
Power	600W
Compressed air source	0.5～0.8Mpa; when used in the glove box, the cylinder power source must be the same as the working gas used in the glove box;
Dimensions	Working part: 520mmL340mmW640mmH Control box: 450mmL420mmW250mmH
Weight	50kg

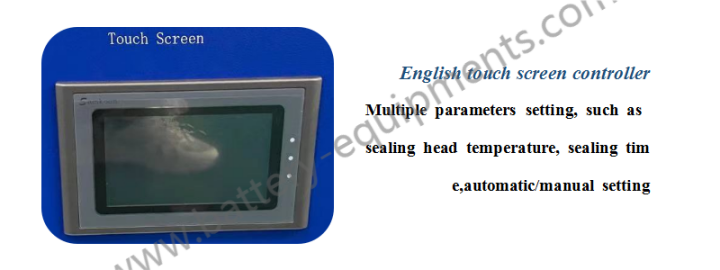

Other	PLC touch screen automation control Includes pre-sealing and standing functions The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure; Vacuum degree can be adjusted up to -95Kpa (the buyer shall bring its own vacuum pump);

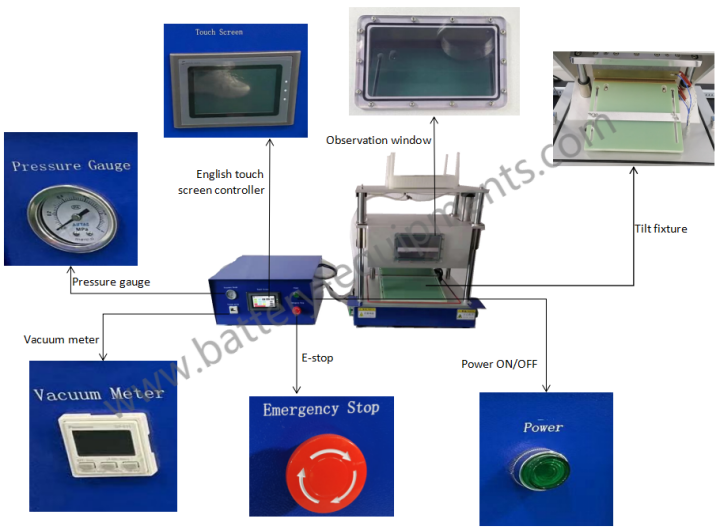

Equipment composition

This machine consists of the following parts

1. Mechanical part: lower template mechanism, vacuum chamber mechanism, driving mechanism, guide mechanism, base mechanism, electric box control part, etc.

2. Electrical part: pneumatic components, solid state relays, solenoid valves, photoelectric switches, etc.
