24T Lab Manual Hydraulic Powder Tablet Press Machine
Model Number:
TMAX-SYP24Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

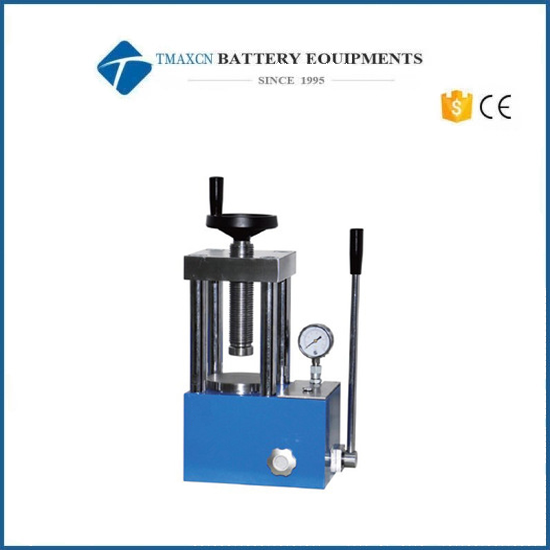

24T Lab Manual Hydraulic Powder Tablet Press Machine
Features
Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples.
Why choose us
1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.
Technical Parameter
|

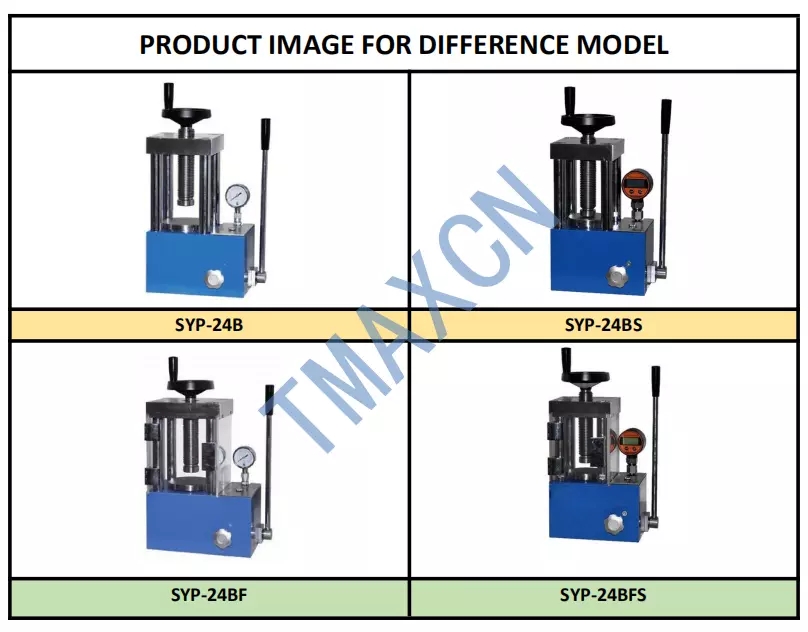

Model |
SYP-24B |
SYP-24BS |
SYP-24BF |
SYP-24BFS |
|
|
Standard package |
Analog gauge |
Digital gauge |
Analog gauge +Protection cover |
Digital gauge+Protection cover |
|
|

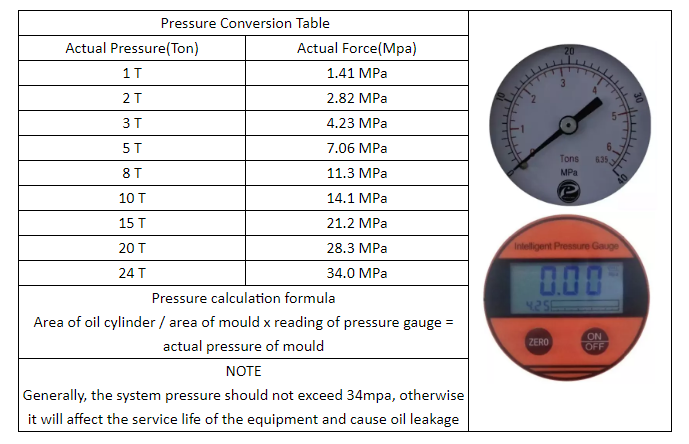

Pointer pressure gauge |
Analog type, double scale display of pressure(Ton) and intensity of pressure(Mpa) |
||||
|
Digital gauge |
Digital display, 0.00-40.00 MPa, accuracy 0.01 MPa (Optional) |
||||
|
Pressure range |
0-24T(0-34MPa) |
||||
|
Piston diameter |
Chrome plated cylinder φ95mm |
||||
|
Piston stroke |
30mm(T) |
||||
|
Pressurization mode |
Manual pressurization / manual slow pressurization |
||||
|
Pressure stability |
≤1MPA/10Min |
||||
|
Overall structure |
Integrative structure patented technology, no sealed connection of equipment, reduce oil leakage point |
||||
|
Workstation diameter |
φ105mm |
||||
|
Number of columns |
4 pillars |
||||
|
Protection cover |
Without |
With plexiglass protective cover |
|||
|
Working space |
80×150mm(W×H) |
120×160mm(W×H) |
|||
|
over dimension |
245×175×415mm(L×W×H) |
305×195×425mm(L×W×H) |
|||
|
Weight |
42kg |
60kg |
|||
|
NOTE |
The work space can be customized to increase the height |
||||
