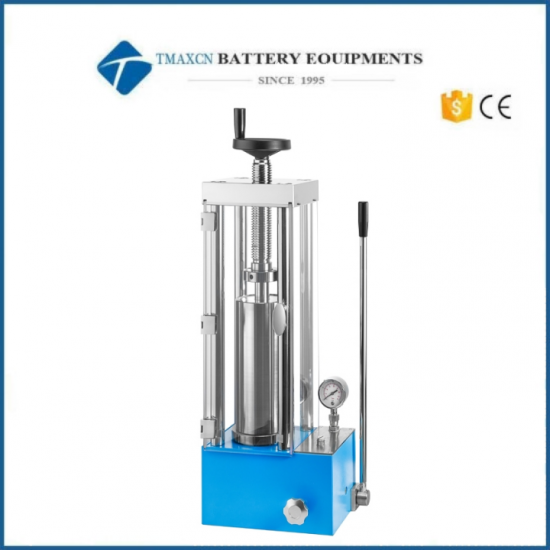

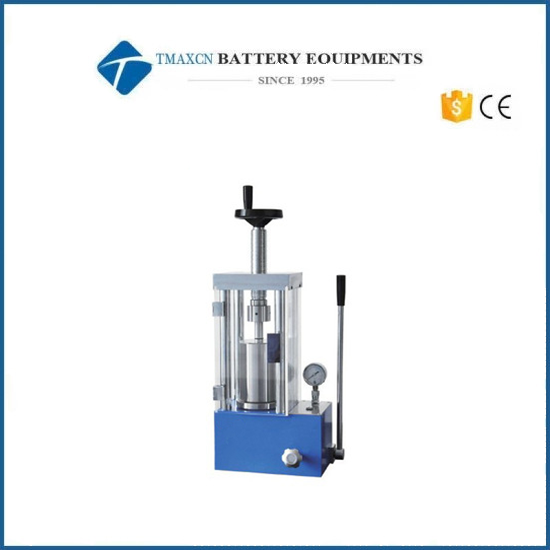

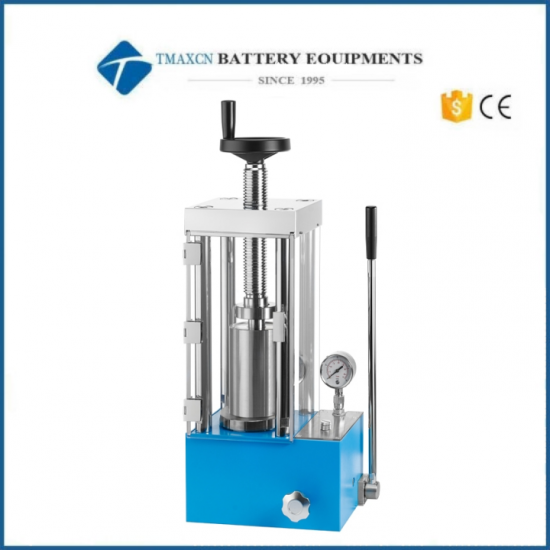

12ton-60ton Laboratory Manual Cold Isostatic Pressing Machine CIP Powder Press
Model Number:
TMAX-SJYPCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
12ton-60ton Laboratory Manual Cold Isostatic Pressing Machine CIP Powder Press

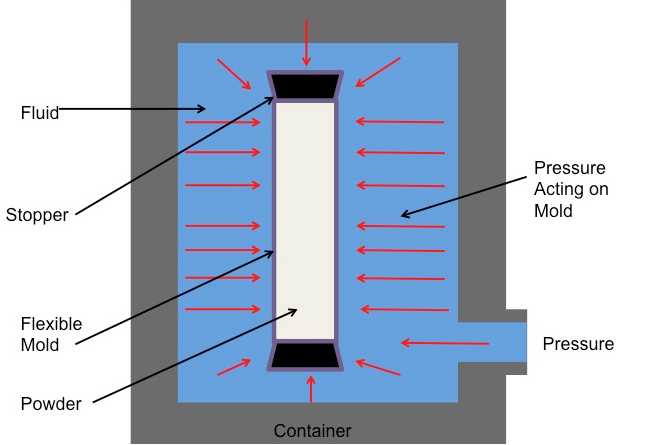

The isostatic press is suitable for the users who have strict requirements on the uniformity of sample forming. The powder can be directly formed through the isostatic pressing chamber, or the samples that have been formed can be re formed to make their density more uniform. It has been widely used in scientific research, teaching, testing, pharmaceutical, catalytic, chemical and other laboratory industries.
Features
1. The sample made of isostatic pressure has high density and uniformity, small sintering shrinkage and is not easy to deform.
2. It can form slender rod or tubular blank which is difficult to be prepared by conventional molding process.
3. The products have high strength and good processability, which can greatly reduce the internal stress.
4. The mold is easy to make, with long service life and relatively low cost.
5. Capable of forming large-scale blank, each cylinder can press multiple blank.
6. Suitable for laboratory use, small instrument
7. The instrument can remove the isostatic pressure chamber and replace the cold pressing die, which has the characteristics of one machine for dual use.
8. Integrated structure patent technology
Technical Parameter
|

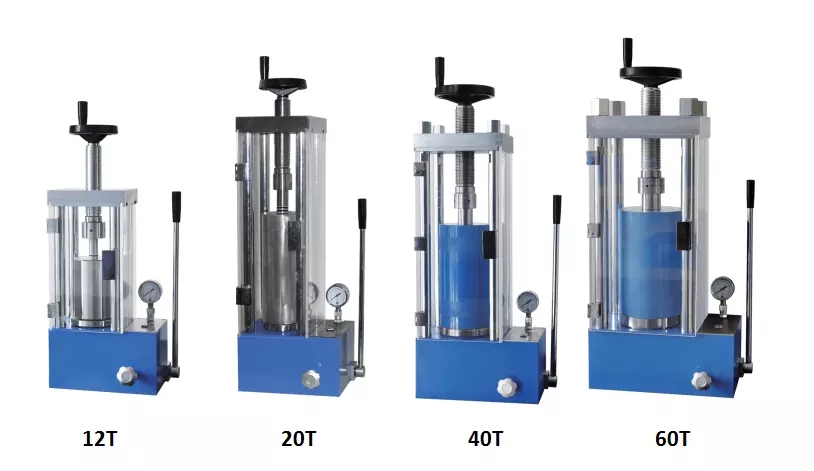

Model |
SJYP-12T |
SJYP-20T |
SJYP-40T |
SJYP-60T |
|
Pressure range |
0-12T(0-17MPa) |
0-20T(0-21MPa) |
0-40T(0-30MPa) |
0-60T(0-34MPa) |
|
Piston diameter |
Φ95mm |
Φ110mm |
Φ130mm |
Φ150mm |
|
Maximum piston stroke |
40mm |
40mm |
50mm |
50mm |
|
Cavity Size |
Φ22×70mm |
Φ30×120mm |
Φ40×150mm |
Φ50×150mm |
|
Analog pressure gauge |
Analog pressure gauge is included in the standard package, Dual scale display: Mpa and Ton |
|||
|
Pressurization mode |
Manual pressure / manual slow |
|||
|
protection cover |
Plexiglass protective cover |
|||
|
Isostatic pressure |
0-300 MPa |
|||
|
Overall structure |
Patent technology of integrated structure, no sealing connection of equipment, reducing oil leakage point |
|||
|
Ambient temperature |
10℃ - 40℃ |
|||
|
Machine dimensions |
305×195×530mm |
305×195×600mm |
355×215×710mm |
405×240×720mm |
|
Weight |
90kg |
100kg |
130kg |
180kg |
|

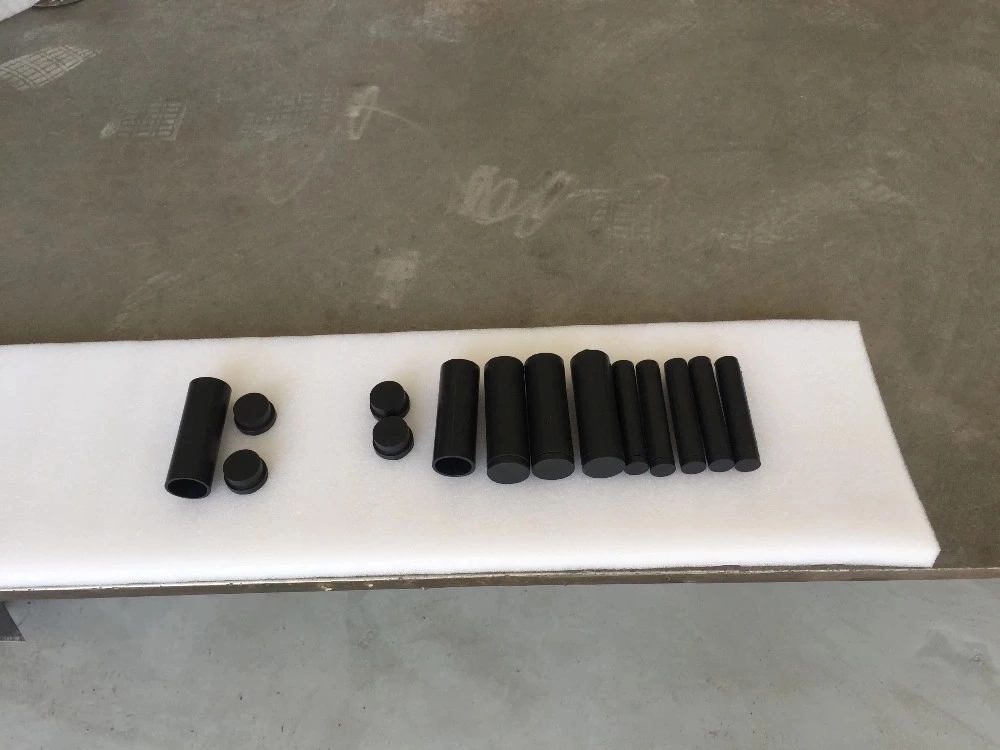

If you need rubber mould for the press, please contact the sales manager for further quote. |
||||
