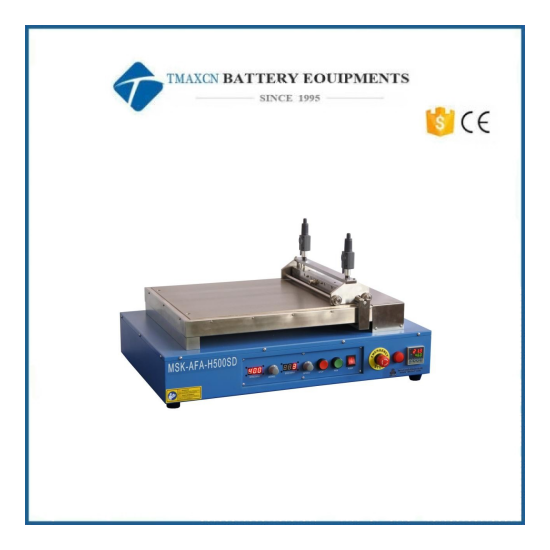

200C Lab Flat Slot Die Coater Machine For Solar/Fuel Cell Film Coating

Power

Voltage: 208-240VAC single-phase 50/60Hz 3000W

Coater

SS316 Vacuum suction plate <1.0mm

Vacuum suction plate size: 500mm(L) x 400mm(W)

The maximum heating temperature of the vacuum suction plate is 200℃

Vacuum pump includes moving speed: 1-100 mm/s (adjustable) push rod travel: 10-400 mm (adjustable)

Vacuum pump is not included in the standard equipment, mechanical pump can be purchased in our company

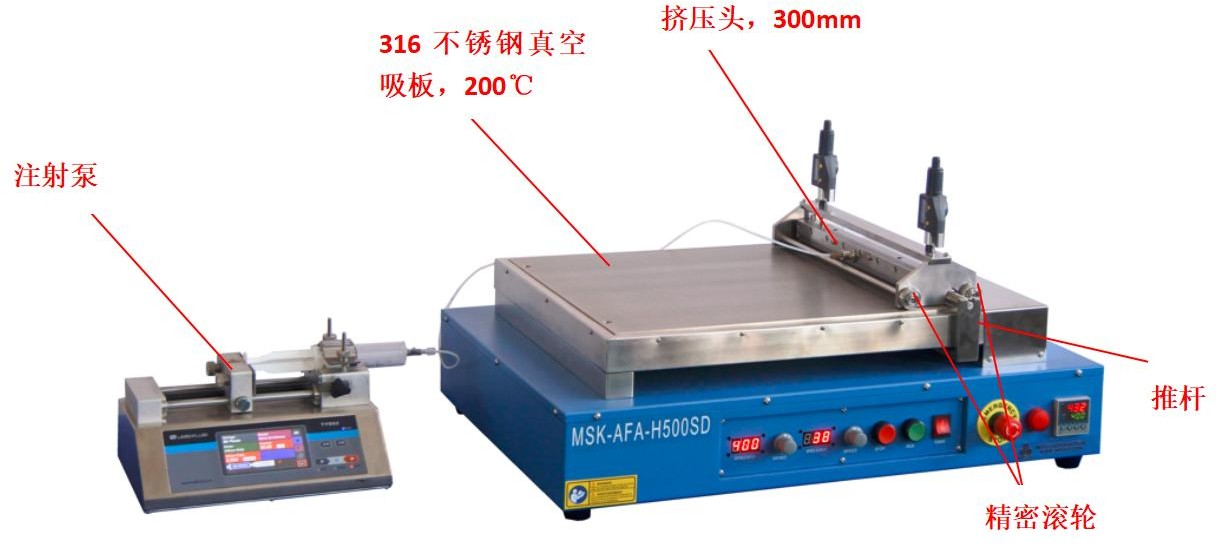

Slot die head &Mobile support

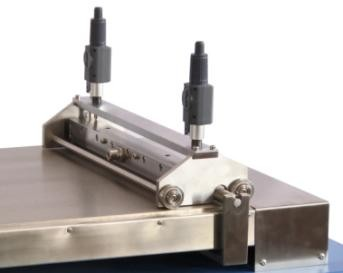

A 300mm wide extrusion head mounted on a roller type mobile bracket (Figure 1)

The push side pushes the roller type moving frame, moves with the extrusion head, and squeezes the slurry onto the base very smoothly, without the extrusion head and the mobile support touching the base. (left photo)

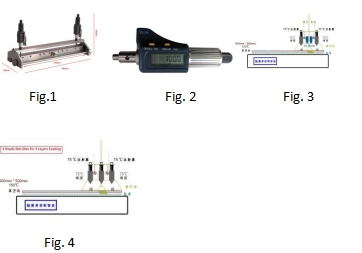

The gap between the extrusion head and the base is adjusted by 2 digital dial gauges, and the adjustment accuracy is ± 1um (Figure 2)

Multiple extrusion heads can be customized according to customer requirements and fixed on the roller type moving frame (Figure 3-4)

Injection pump

Color touch screen, easy to operate

The key is equipped with indicator light, and the working state is clear

Applicable syringe size: 10ul-140ml

Syringe protection and blocking alarm

Maximum pump speed: 173mL/min (140mL)

Maximum travel 140mm

Stroke control accuracy: error < ±0.35% (stroke > 30% maximum stroke)

Maximum rated linear thrust: > 20kgf

Optional part

Extrusion coating is used to obtain better coating effect. Viscosity and dispersion of slurry are very important. Viscosimeters (FIG. 1) and small dispersion meters (FIG. 2) can be purchased from our company.

Dimensions

740mmL×500mmW×420mmH

Net weight

90kg
