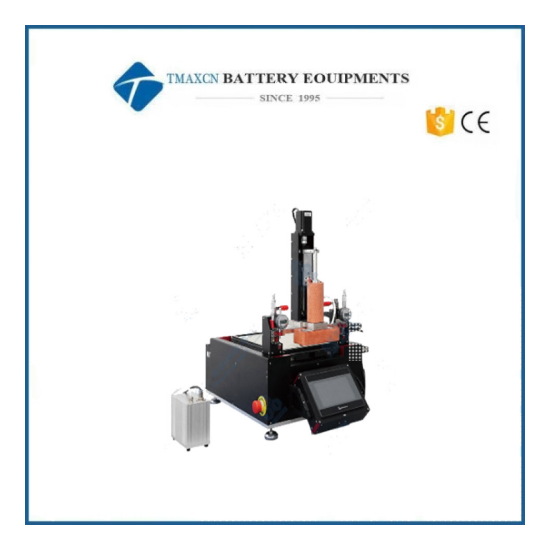

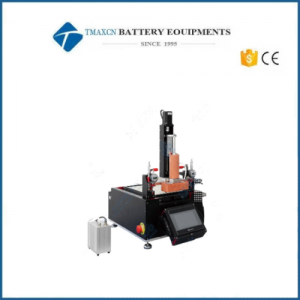

100C W200MM Laboratory Compact Slot Die Coater Machine With Heating Function
Model Number:
TMAX-PD200-H100Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
100C W200MM Laboratory Compact Slot Die Coater Machine With Heating Function
Introduction

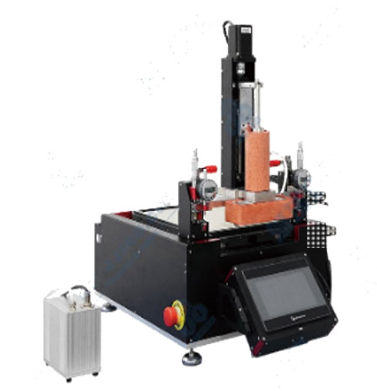

PD200-H100 hot melt slot die coating machine is a device for the surface coating of sheet substrates, using a slit extrusion method for coating. The equipment is mainly composed of extrusion die, coating platform, feeding system and control system, mainly used in laboratory research and development, can work in the glove box. The equipment is mainly used for surface coating of chip substrates in the fields of lithium OLED, solar photovoltaic film and polymer conductive film.
Functional characteristics
- extrusion coating process, high coating precision, good consistency, wide coating window;
- injection pump feeding, feeding system closed, no external interference, paint demand and less waste;
- the temperature of the feeding pump is controllable to realize the hot melt feeding of the material;
- coating die temperature controllable, cavity flow path shape can be customized according to material requirements;
- The coated substrate is a vacuum suction plate with a built-in vacuum pump;
- The device can be used in the glove box;
- coating mold and feeding system easy to disassemble and clean;
- touch screen operation, equipment parameter adjustment, storage, control is convenient and fast;
Technical parameter
Power source |
Single-phase AC220V±10%, frequency 50Hz (customizable AC110V, frequency 60Hz) Power 500W |
Coating size |
Max.L300mm*W200mm (standard) |
Substrate size |
L360*W250mm |
Mechanical speed |
Extrusion coating head moving speed 0.5-20mm/s |
Substrate thickness |
Max: 5mm |
Injection capacity |
Max: 75ml (stainless steel syringe) |
Feed rate |
0.05-5mm/s (injection cylinder piston speed) |
Feed temperature |
Max.100℃ |
Coating die head
|
Material: 310S |
Size: L150*W50*H24mm |
|
Mold cavity: cylindrical, hanger, drop type, optional |
|
Max.120mm, adjustable by changing the gasket |
|
Temperature controllable, Max.100℃ |
|
Coating head gasket |
Thickness size range: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
Coating head adjustment |
Standard with 1 set of gaskets, thickness and opening size specified by the customer |
Equipment size |
Manual adjustment, the precision of the dial indicator is 1um |
Weight |
Equipment body: L755mm*W520mm*H720mm, external vacuum pump components: L145mm*W83mm*H141mm |
