1700℃ Four-Station 2 in 1 Furnace Tube&Muffle Furnace

Model

TF1700-I

TF1700-II

TF1700-III

TF1700-Ⅳ

TF1700-V

Power

5KW

7KW

9KW

13KW

24KW

Chamber size

(DXWXH, mm)

200X200X200mm

300X200X200mm

300X250X250mm

400X300X300mm

500X400X400mm

Machine Dimension(WXDXH)

700X600X950

700X650X980

700X700X1000

700X800X1450

900X950X1750

Voltage

220V

220V

380V

380V

380V

Phase

Single phase

Single phase

Single phase

Single phase

Single phase

Heating element

1800 silicon molybdenum rod

Main Feature

Box type and tube type dual purpose.

Four stations, convenient for multi-sample operation

The highest temperature can reach 1700℃.

Put on the furnace plug for box furnace

Plug in the furnace tube for tube furnace

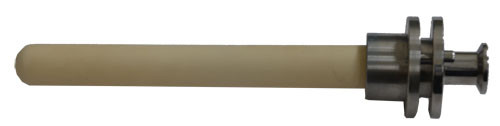

Four corundum tubes, which can be sealed with flanges

Corundum tube size

Dia25*245

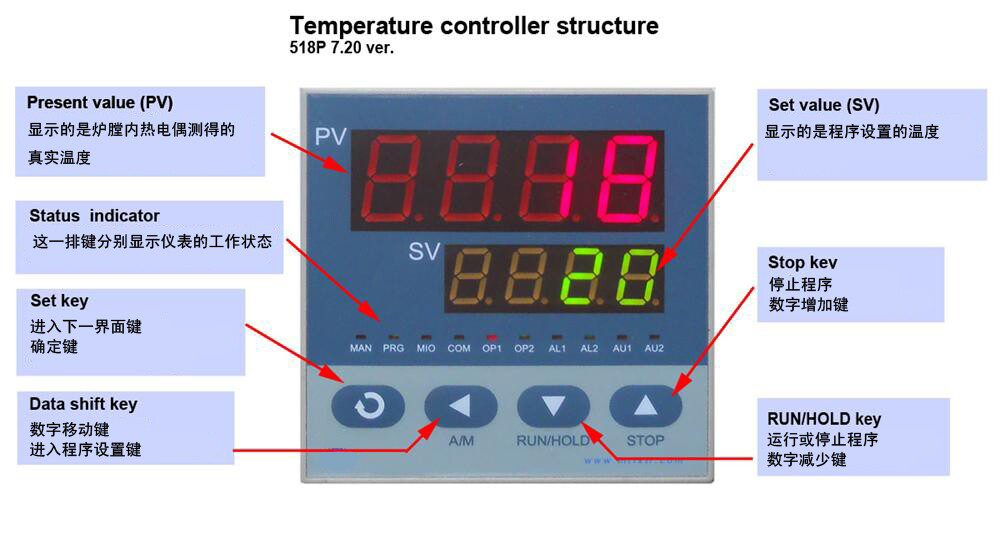

Controller

YUDIAN controller (standard, domestic brand)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace material

1800 type alumina polycrystalline fiber (alumina content above 95%)

control accuracy

+/- 1 ℃

maximum temperature

1700 ℃

Rated temperature

1650 ℃

Thermocouple model

B Type

Trigger

Phase shift trigger (with soft start and current limit function)

Current limiting function: No matter how you adjust the heating time, the secondary current of our electric furnace after passing through the transformer is limited to less than 160A, which protects the equipment limitedly, no matter how you operate it, it will not burn the equipment.

Soft start function: The current will increase slowly when starting up, and the impact on the heating element is small, which is beneficial to the extension of the life of the heating element

surface temperature

≤35℃

Heating rate

≤30 ℃/ Min

Recommended heating rate

15℃/ Min

Safety protection system

The furnace is equipped with safety and air switch. When the current exceeds the rated current of the air switch, the empty meeting will automatically trip, effectively protecting the electric stove.

Door opening protection system

This furnace is equipped with a travel switch. When the furnace door is opened and taken out, the main electric furnace of the electric furnace will automatically power off

Controlled  silicon

106/16E simenkang, Germany

Warranty

One year warranty, lifetime technical support

Especially, the consumables such as heating element and sample crucible are not covered by the warranty

Damage caused by the use of corrosive gases is not covered by the warranty

Note

1. For safety, please put the stove in a ventilated place.

2. In order to improve the service life of the furnace, we recommend that the heating rate should not exceed 10°C/min. The cooling rate does not exceed 5°C/min.

3. The furnace has no vacuum tightness, and it is forbidden to pass toxic or explosive gases

4. It is forbidden to put the materials directly on the bricks at the bottom of the furnace, please put the materials in the special crucible.

5. When heating, the materials and crucible should not touch the heating element and thermocouple

6. When not in use for a long time, please use the oven again.
