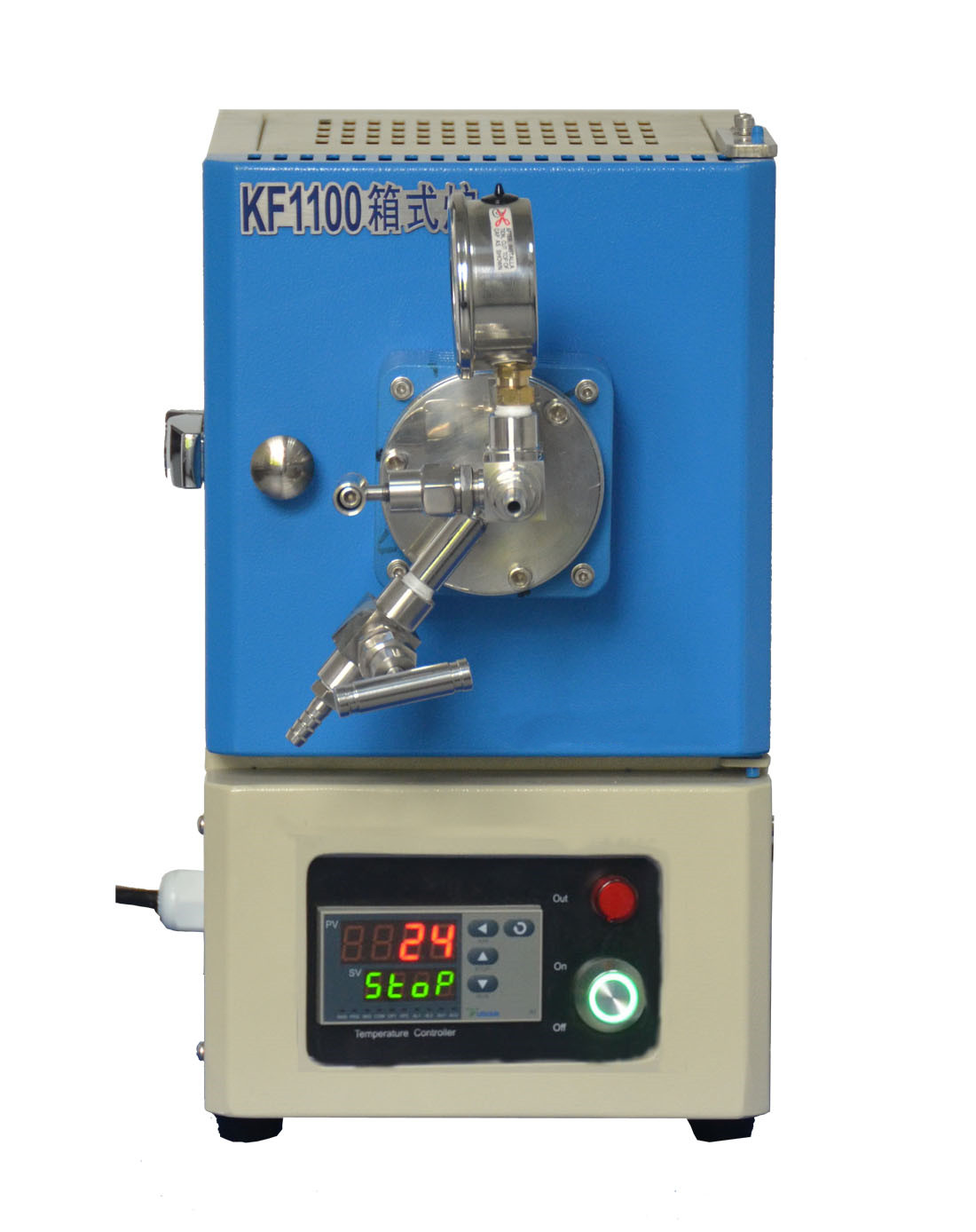

1100℃ 2 in 1 Two Purpose Furnace Tube&Muffle Furnace

Model

KTL1100-S

Power

1200W

Chamber size

(DXWXH, mm)

100X100X100 (LXWXH) Volume 1L

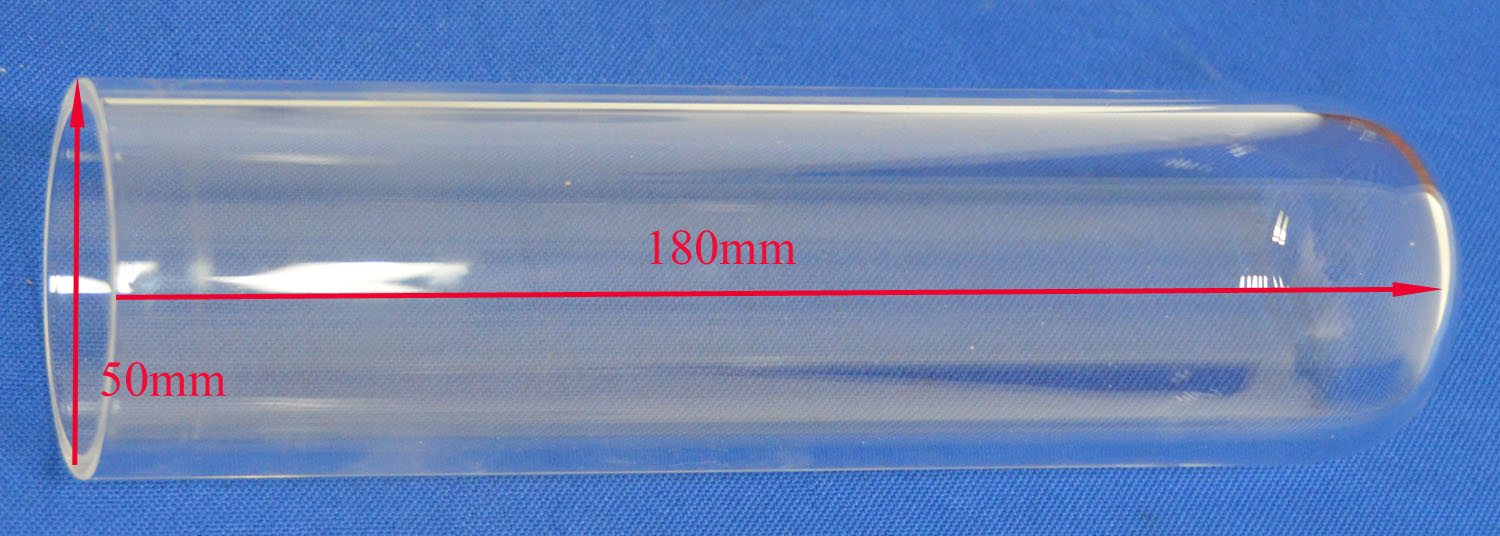

Furnace tube size

Volume 350ML

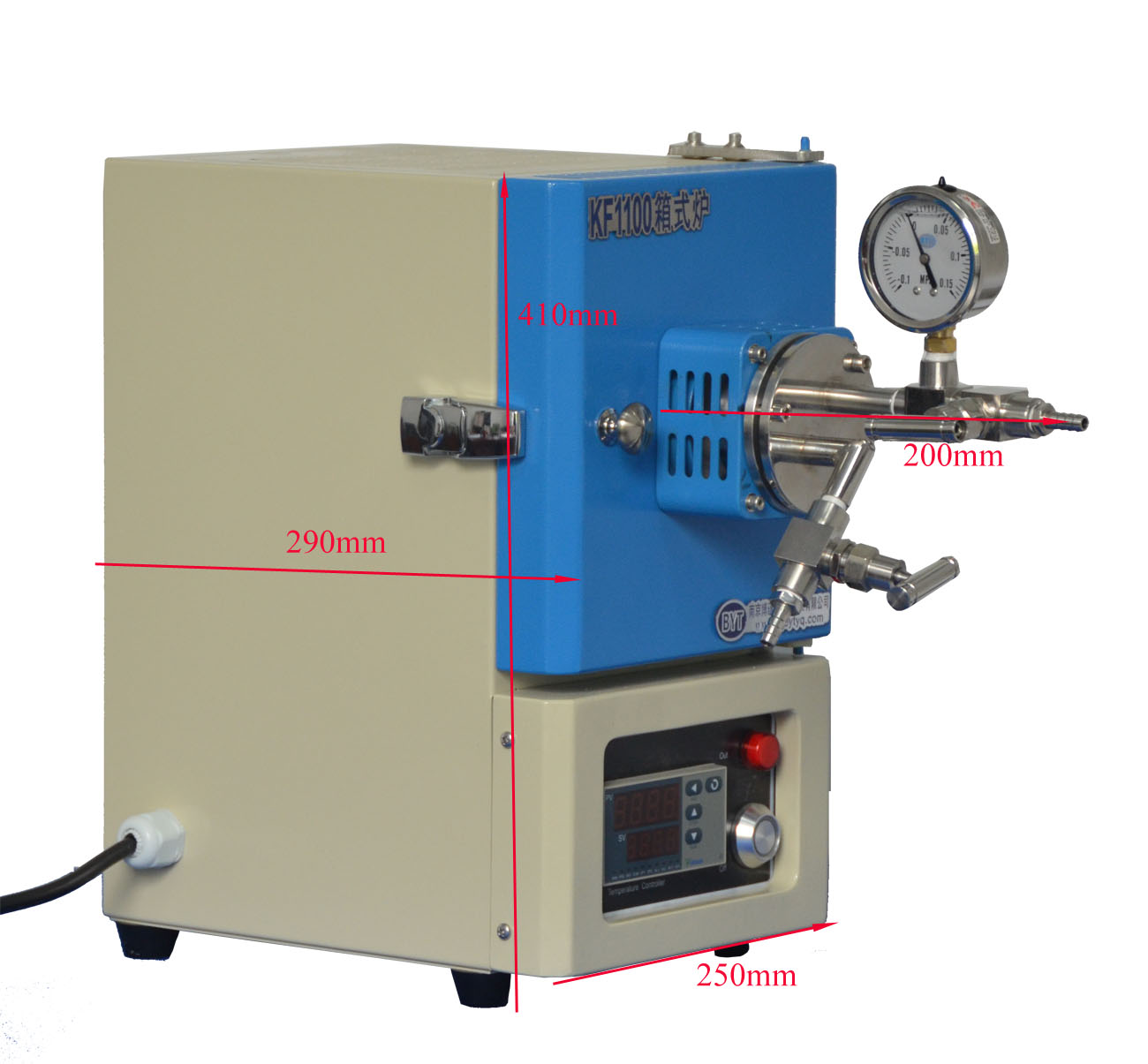

Machine Dimension

  500X250X410mm（LXWXH）

Main feature

Box type and tube type dual purpose.

Small size, light weight, low power, and can be used in glove boxes and fume hoods.

The highest temperature can reach 1100℃.

The side door opens for easy operation.

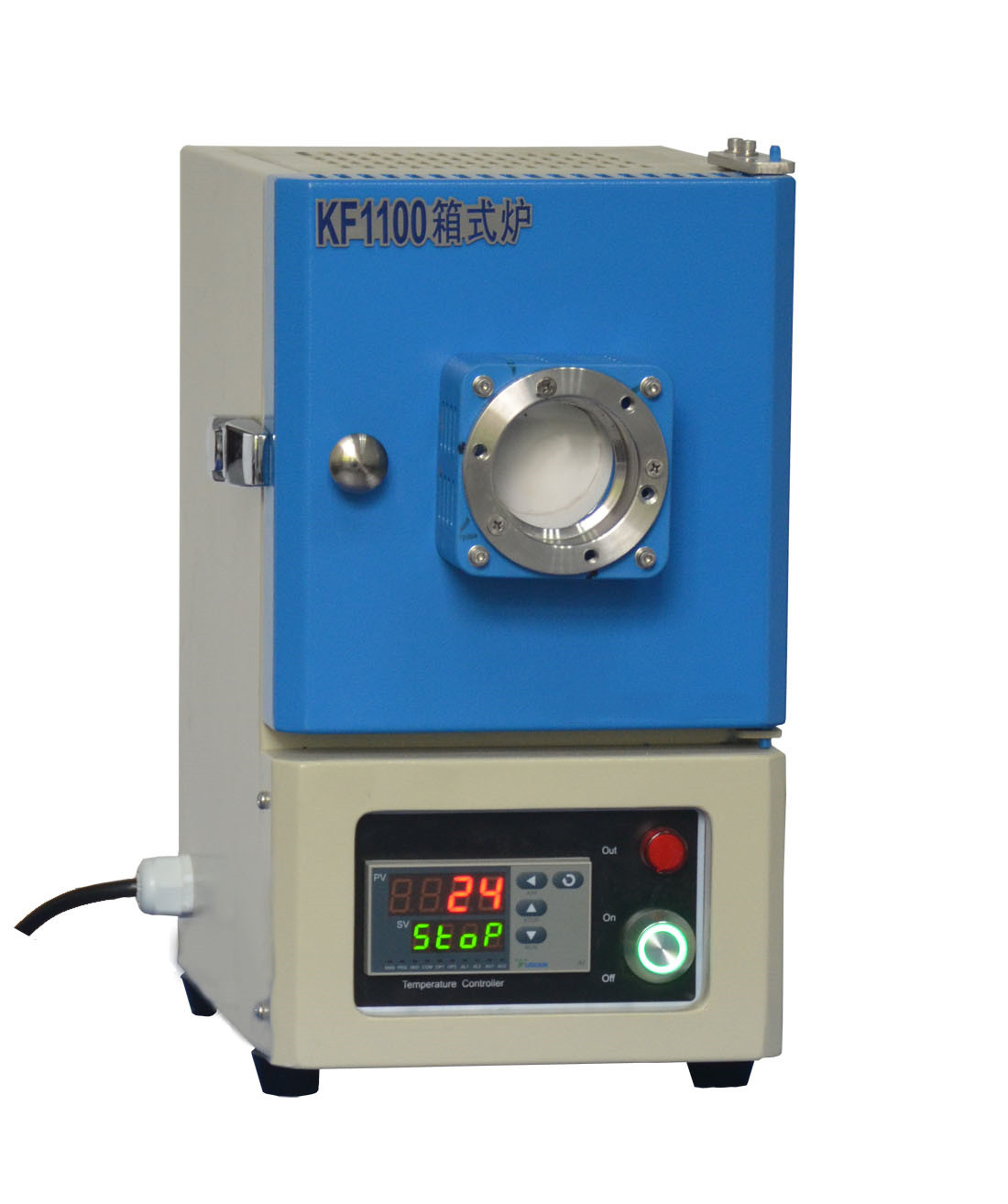

Put on the furnace plug for box furnace

Plug in the furnace tube for tube furnace

Voltage

220V

Phase

Single phase

Heating element

Domestic high-quality resistance wire (optional Sweden Kanthal A1 imported resistance wire)

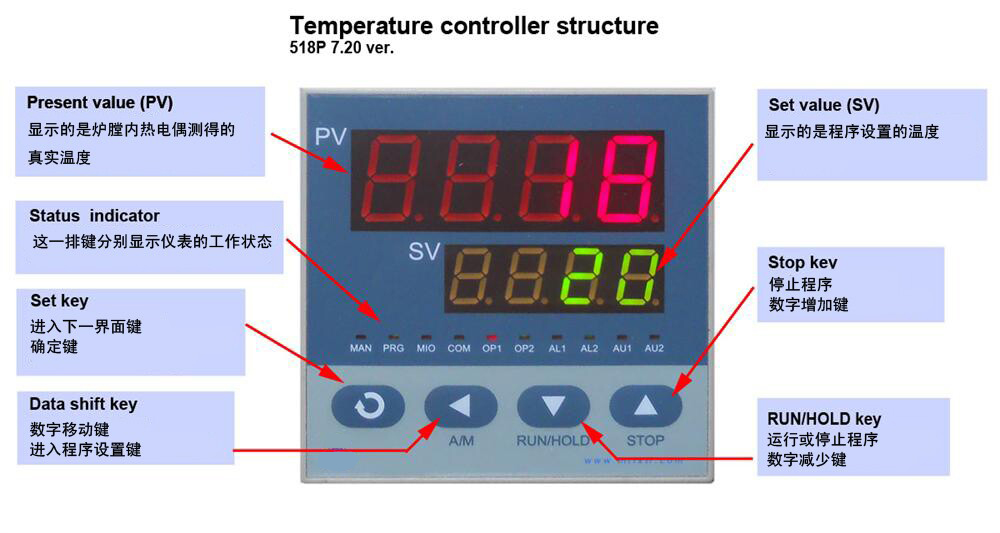

Controller

30-segment program temperature control

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1120 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

Temperature control mode

Intelligent PID

Over temperature protection

Yes

Overcurrent protection

Yes

Furnace material

1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded with Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

control accuracy

+/- 1 ℃

maximum temperature

1050 ℃

Rated temperature

1000 ℃

Thermocouple model

K Type

Thyristor

Triac

surface temperature

≤45℃

Warranty

One year warranty, lifetime technical support

Especially, the consumables such as heating element and sample crucible are not covered by the warranty

Damage caused by the use of corrosive gases is not covered by the warranty

Note

1. For safety, please put the stove in a ventilated place.

2. In order to improve the service life of the furnace, we recommend that the heating rate should not exceed 10°C/min. The cooling rate does not exceed 5°C/min.

3. The furnace has no vacuum tightness, and it is forbidden to pass toxic or explosive gases

4. It is forbidden to put the materials directly on the bricks at the bottom of the furnace, please put the materials in the special crucible.

5. When heating, the materials and crucible should not touch the heating element and thermocouple

6. When not in use for a long time, please use the oven again.
