Humidity Alternating Temperature Test Chamber
  • 150C Humidity Alternating Temperature Test Chamber

    • 150C Humidity Alternating Temperature Test Chamber

    • Model Number:

      TMAX-408-D

    • Compliance:

      CE compliant

    • Warranty:

      Two Year Limited Warranty With Lifetime Support

    • Payment:

      T/T, Credit Card, Paypal, LC, Western Union

    • Delivery Time:

      3 Days
    contact now
    Email:David@battery-equipments.com
    Wechat:13506084915
    DESCRIPTION

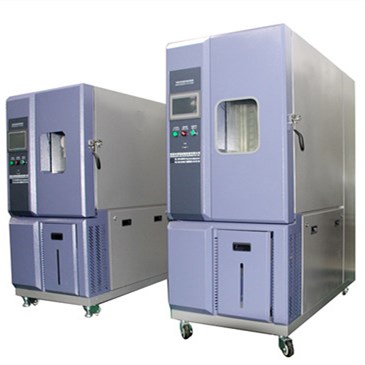

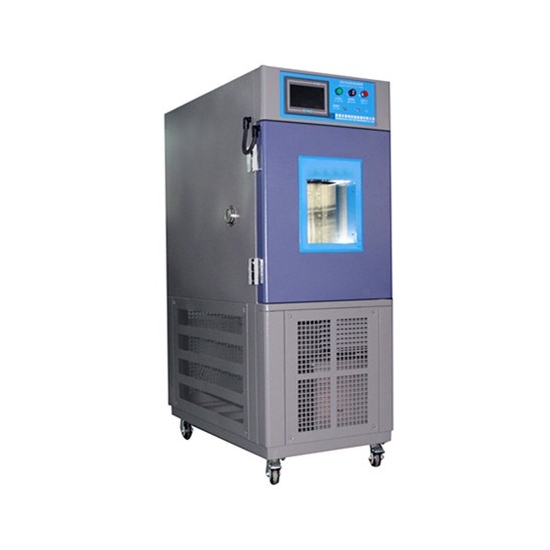

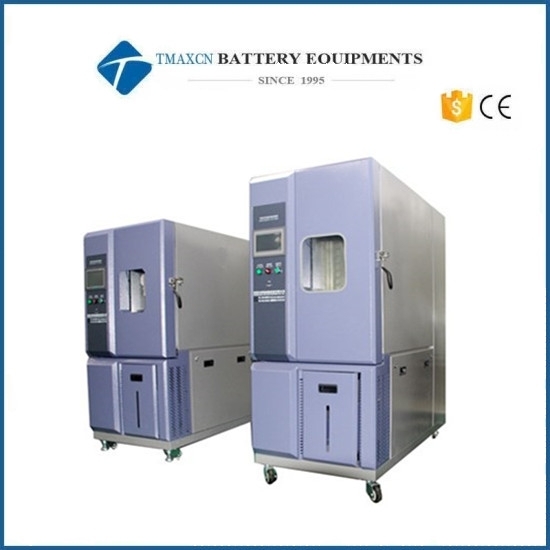

    150C Humidity Alternating Temperature Test Chamber


    Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.


    Specification

     Model
     TMAX-80(A~F)
     TMAX-150(A~F)
     TMAX-225(A~F)
     TMAX-408(A~F)
     TMAX-800(A~F)
     TMAX-1000(A~F)
     Internal Dimension
    WxHxD (mm)
     400x500x400
     500x600x500
     600x750x500
     600x850x800
     1000x1000x800
     1000x1000x1000
     Internal Dimension WxHxD (mm)
     950x1650x950
     1050x1750x1050
     1200x1900x1150
     1200x1950x1350
     1600x2000x1450
     1600x2100x1450
     TemperatureRange
     Low Temperature(A:25°C  B:0°C  C:-20°C  D:-40°C  E:-60°C  F:-70°C)
     High Temperature 150°C
     HumidityRange
     20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
     Analytic Accuracy/
    Distribution uniformity of
    temperature and humidity
     0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
     Control Accuracy of
    Temperature and Humidity
     ±0.5°C; ±2.5% R.H.
    Cooling System
    Wind cooling or water cooling/single segment compressor(-40°C, double segment compressor -70°C)
     Temperature Rising/Falling
    Speed Rate
     Temperature rising approx.  0.1~3.0°C/min
    temperature falling approx.  0.1~1.5°C/min;
    ( The Falling Speed Rate Min.1.5°Cper minute is a special optional condition)
     Power
     AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
     Approx. Weight (Kg)
     150
     180
     250
     320
     400
     450

    Humidity Alternating Temperature Test Chamber

    Humidity Alternating Temperature Test Chamber




     battery equipment
