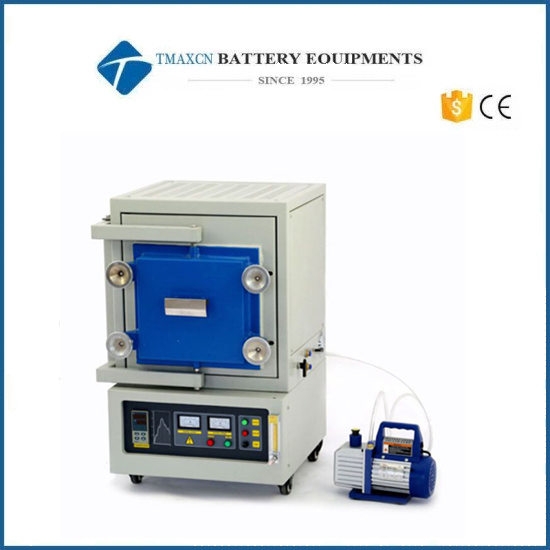

1200℃ Atmosphere Furnace

Model

GF12Q-B-I

GF12Q-B-II

GF12Q-B-III

GF12Q-B-V

Power

4KW

5KW

9KW

16KW

Furnace Structure

1. It adopts a double-layer shell structure and is equipped with fan air cooling.

2. The inner tank adopts imported nickel-based alloy materials.

3. A water cooling system is installed at the door of the furnace to reduce the sealing temperature of the O-ring.

Chamber size

(DXWXH, mm)

280X180X180

80X230X230

380X280X280

480X380X380

Dimensions (WXDXH)

480X590X 712

580X690X930

580X690X930

680X 790X950

Voltage

220V

220V

380V

380V

Phase

Single phase

Single phase

Three phase

Three phase

Heating element

Sweden Canthal A1 imported resistance wire, the surface temperature can reach 1420℃

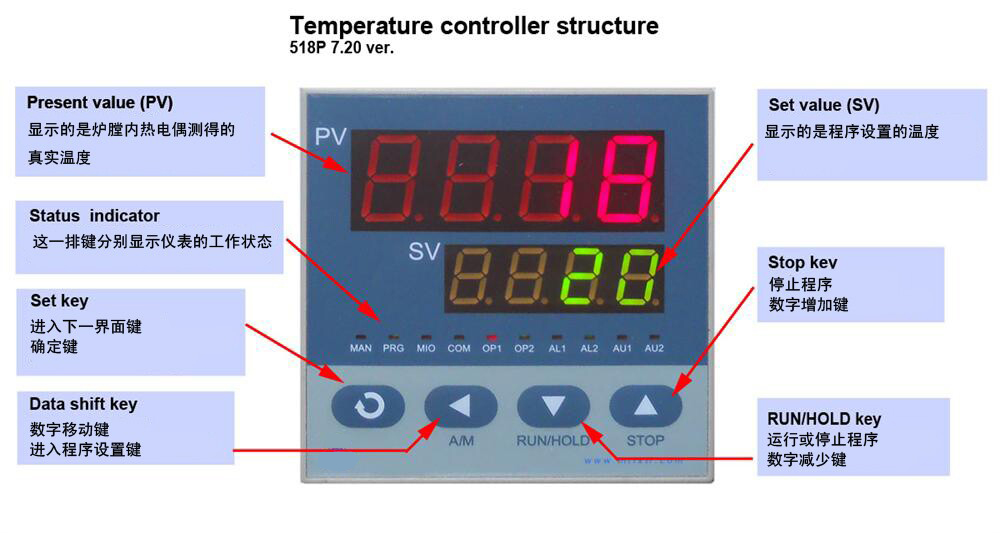

Controller

YUDIAN Controller(Standard)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

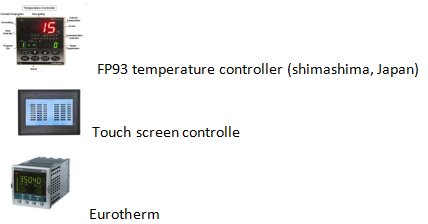

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace material

1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded with Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

4. Adopt 4-sided heating (left, right, up, down, four sides), the temperature field is more balanced

control accuracy

+/- 10 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang Chint

maximum temperature

1200 ℃

Rated temperature

1100 ℃

Thermocouple model

K Type

Heating rate

≤30 ℃/ Min

Recommended heating rate

15℃/ Min

Thyristor

106/16E Siemens Germany

surface temperature

≤45℃

Vacuum

It can reach -0.1MPa in cold state

Limit switch

Opening the door will automatically power off

Liner material

4mm nickel-based alloy
