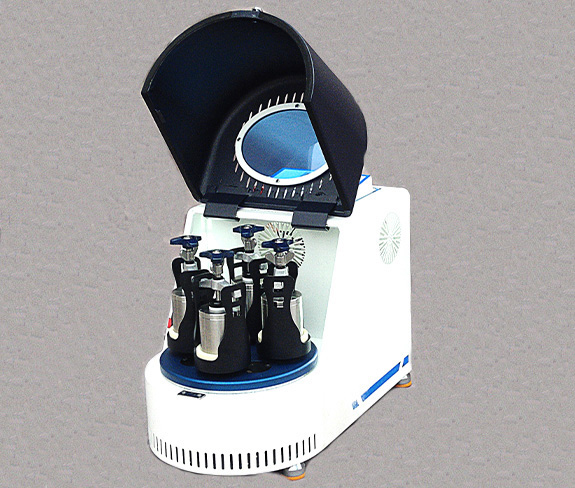

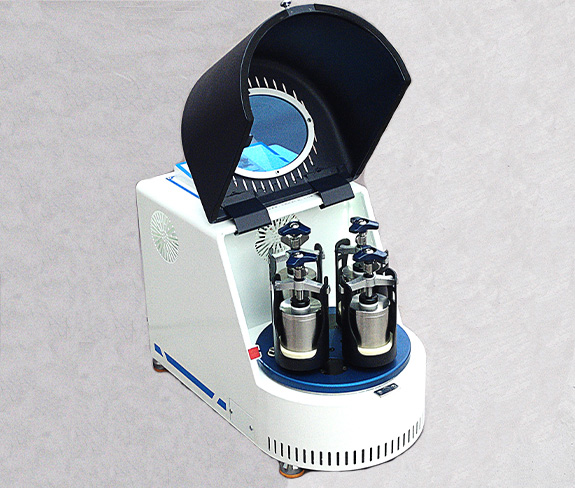

0.4L Mini Planetary Ball Mill Machine For Laboratory Research
Model Number:
TMAX-DSP-LT01Type:
Planetary Ball Mill MachineDimension(L*W*H):
0.1L*4Net Weight:
80KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
0.4L Mini Planetary Ball Mill Machine For Laboratory Research
SPECIFICATION
1 Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.
2 the Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).
3 It can be equipped with vacuum ball mill; the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.
4 It can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.
|
Model |
TMAX-DSP-LT01 |
|
Grinding tank volume (L) |
0.1L*4 |
|
Grinding tank material |
According to requirements |
|
Grinding media |
According to requirements |
|
Maximum loading per tank |
Material and grinding medium does not exceed two-thirds of the volume |
|
Feeding material size |
Soil material ≤ 10 mm, other materials ≤ 3 mm |
|
Discharge material size |
Min 0.1um |
|
Rotating speed |
Revolution 335r/min , Rotation 670 r/min |
|
Speed ration (revolution: rotation) |
1:2 |
|
Speed mode |
Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse |
|
Transfer method |
Gear drive |
|
Working Voltage |
220V |
|
Motor power and variable frequency power |
0.75Kw |
|
Way of working |
Two or four cans work at the same time |
|
Maximum continuous operating time |
72hours |
