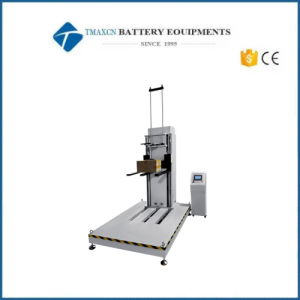

Zero Drop Tester Machine For Battery Pack Edges Cornors And Surfaces Testing

Zero Drop Tester Machine For Battery Pack Edges Cornors And Surfaces Testing

Product Description

The zero drop testing machine is mainly used to assess the degree of impact on objects during actual transportation, loading and unloading, and to evaluate the impact strength of objects during transportation. The zero drop testing machine is mainly used for drop testing of larger objects. Using an E-shaped fork that can quickly move downwards as the specimen holder, the tested goods are placed and balanced according to the test requirements. During the experiment, the support plate moves downward at high speed and detaches from the specimen. Before the tested goods fall to the bottom plate, the "E" shaped fork is embedded flat on the bottom plate under the action of an efficient shock absorber. In theory, the zero drop testing machine can perform a drop test from zero height to the maximum drop height range. The drop height is set numerically according to the test requirements, and the drop test is automatically executed according to the set height

Specification parameters

1. Maximum weight of test sample (kg): 100

2. Testing height: 0-1500mm, adjustable, accuracy: ±1mm

3. In terms of testing: edges, corners, and surfaces

4. Maximum product size: 600 x 600 x 300mm

5. Working power supply: AC~220V 50HZ

6. Drive mode: AC servo motor drive

7. Protection device: Inductive protection devices are installed at the top and bottom

8. Impact plate material: 45 # steel, solid steel plate

9. Height display: touch screen operation

10. Drop height identification: Using a benchmark scale for identification

11. Arm structure: 45 # steel, welded from square joints

12. Transmission method: Taiwan imported linear slider and copper guide sleeve, 45 # chrome steel

13. Drop method: pneumatic

14. Weight: Approximately 1000KG

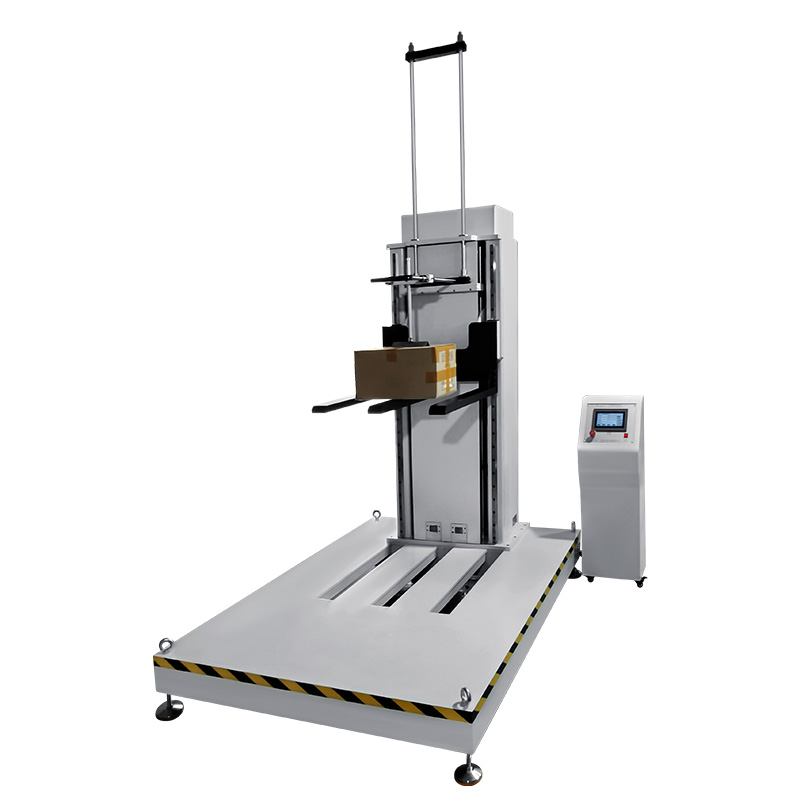

Picture for reference
