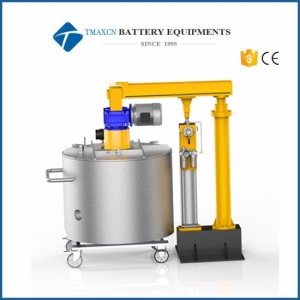

XHB Series Turnover Barrel Machine
Model Number:
TMAX-Turnover3Dimension(L*W*H):
152L/265L/369L/688LCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

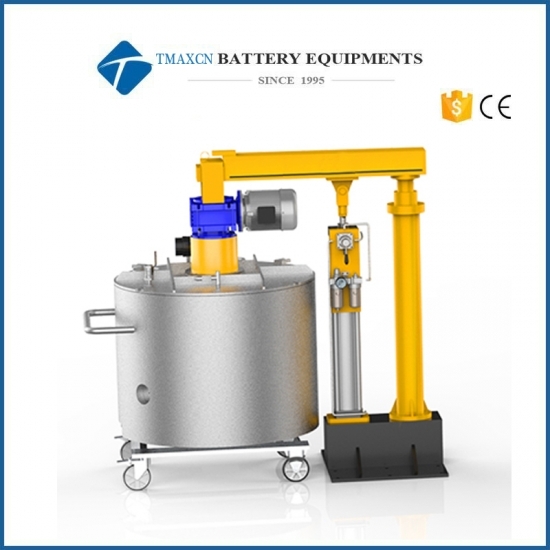

XHB Series Turnover Barrel Machine
Reasonable structure: the turbine worm gear reducer is directly connected with the stirring motor, and the transmission structure and lifting mechanism design is more compact and reasonable;
Simple and convenient: the operation electric box is installed on the reducer, and the operation is simple and convenient;
Easy operation: the lifting method of the lid is lifted by the cylinder, and the maintenance process is maintenance-free.
Good sealing: reasonable transmission seal structure design, high vacuum retention during material mixing
Working cycle barrel
It is mainly used for the anti-sedimentation of the agitated slurry, which acts as a link between the mixer and the filtration system.
Product advantages
The specifications of the drums and mixers produced by Qingtao can be easily exchanged, which reduces the waste of slurry from the mixer to the turnover tank.
|
Equipment model |
Dimensions |
Equipment weight design volume |
Effective volume |
Stirring power |
Mixing speed |
|
XHzz-100L1600mmX750mmX1450mm |
650kg |
152L
|
100L |
1.1KW
|
25r/min
|
|
XHZZ-200L1700mmX830mm×1500mm |
700kg
|
265L
|
200l |
1.5KW
|
25r/min
|
|
XHZZ-300L1700mmx950mmx1600mm |
900kg |
369L
|
300L
|
1.5KW
|
25r/min |
|
XHZZ-600L2500mmX1250mmX2300mm |
1800kg |
688L
|
600L
|
4KW
|
25r/min |
