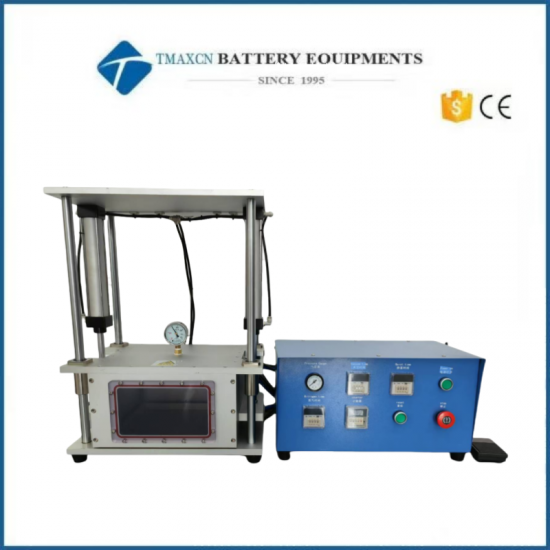

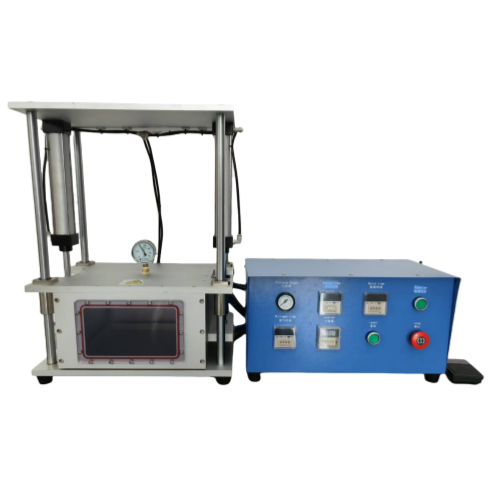

Vacuum Standing Machine Electrolyte Filling Diffusion Chamber For Li-on Battery Research

Vacuum Standing Machine Electrolyte Filling Diffusion Chamber For Li-on Battery Research

Suitable for placing the injected lithium battery in a vacuum state, allowing the electrolyte to quickly and evenly penetrate into the cell

1、 Process Flow:

Place the battery filled with liquid into the vacuum box and start it. The cylinder will close the vacuum chamber, automatically connect the vacuum source to evacuate, and enter the static stage when the set vacuum degree is reached. During this period, nitrogen can be added to accelerate the penetration rate of the electrolyte. After completing the static program, the pressure will be automatically released, and the cylinder will move to open the vacuum chamber.

2、 Basic Parameters:
1. Power supply: 220V single-phase 50/60Hz
2. Power: 100W
3. Box size: 300 * 290 * 180mm [Interior: length x depth x height].
4. Equipment size approximately: length x width x height ≈ 460x320x600

3、 Performance Requirements:
1. The vacuum box is sealed without air leakage, and a transparent plate is installed at the front;
2. There is a safety light curtain in front to prevent accidental operation of the foot switch during operation;
3. The vacuum degree can be set through a digital vacuum gauge;
4. Vacuum pumping delay time and settling time can be preset; The number of cycles can be set,
5. Except for the front organic glass plate, the rest of the box is made of oxidized aluminum plate;
6. The front panel is centrally set, controlled by a foot switch, and has a conversion button, manual button, time relay, and vacuum pressure gauge; Easy to operate and set up;
7. Equipment spraying color: according to the supplier's standard color sample (sky blue);
8. The whole machine runs safely and stably, with reliable control and easy operation.
9. Optional observation window
10. Simple program settings for specific vacuum conditions
11. -0.9-0 kPa adjustable
12. Inflation time -0-99.99 seconds
13. Vacuum condition holding time -0-99.99 seconds
14. Working temperature - (-20 to 40 ℃)
