Vacuum Slurry Mixing Machine with Two Containers (500 & 150ml)
Model Number:
MSK-SFM-7Input Power:
120WDimension(L*W*H):
340*320*530 mmNet Weight:
38kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

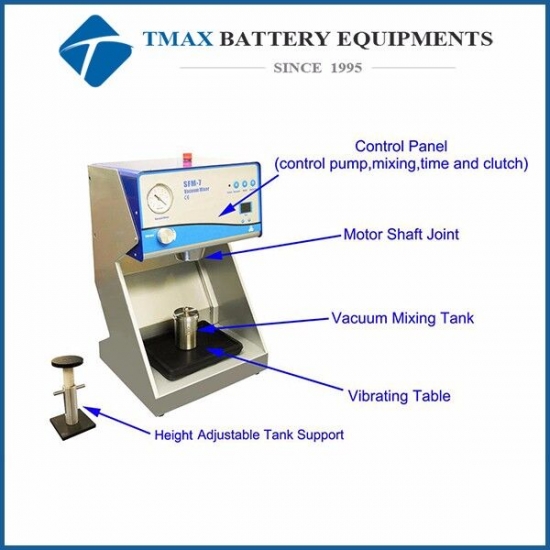

Vacuum Slurry Mixing Machine with Two Containers (500 & 150ml)
SPECIFICATIONS:
1 MSK-SFM-7 vacuum mixer is and laboratory vacuum mixing machine designed to produce coating slurry by mixing small batch of chemical and compound under vacuum to remove gas bubble and protect sample from oxidation.
2 This vacuum mixer is with build-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed at 320rpm. So we don’t need to connect with vacuum pump separately.
3 The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing.
4 It is excellent for preparing battery electrode paste and various ceramic materials in research lab.
|
Model |
Vacuum Slurry Machine MSK-SFM-18650 |
|
Voltage Input |
Single Phase 110VAC or 220VAC, Customized |
|
Power |
140W |
|
Power plug |
Supply with required power plug according to different country |
|
Rotary Speed |
320 rpm |
|
Mixing Container |
Two vacuum sealed containers are included. One 150ml stainless steel and one 500ml aluminum Mixing blade is built in top of cover of container. |
|
Vacuum pump & Vacuum Level |
Built in single stage vacuum pump Vacuum Level: -0.08~0.09 Mpa |
|
Vibration Plate |
Vibrating at 1000 HZ |
|
Dimensions (L*W*H) |
13''L x 12''W x 21''H, 320*320*530mm |
|
Shipping Dimensions |
16''L x 19''W x 24''H, 420*500*600mm |
|
Net Weight |
38kg |
|
Compliance |
CE certified |
|
Application Notes |
Please note that the main duty of this product is to remove the bubbles from the slurry during the wet mixing stage. For the best mixing uniformity, please select our professional Vacuum mixer system or vacuum planetary disperse mixer system |
|
Warranty |
Two year limited with lifetime support |
