Turntable type hot press Forming machine for lithium polymer battery
Model Number:
TMAX-THPMType:
Punch Forming MachineDimension(L*W*H):
300*350mm CustomizableCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

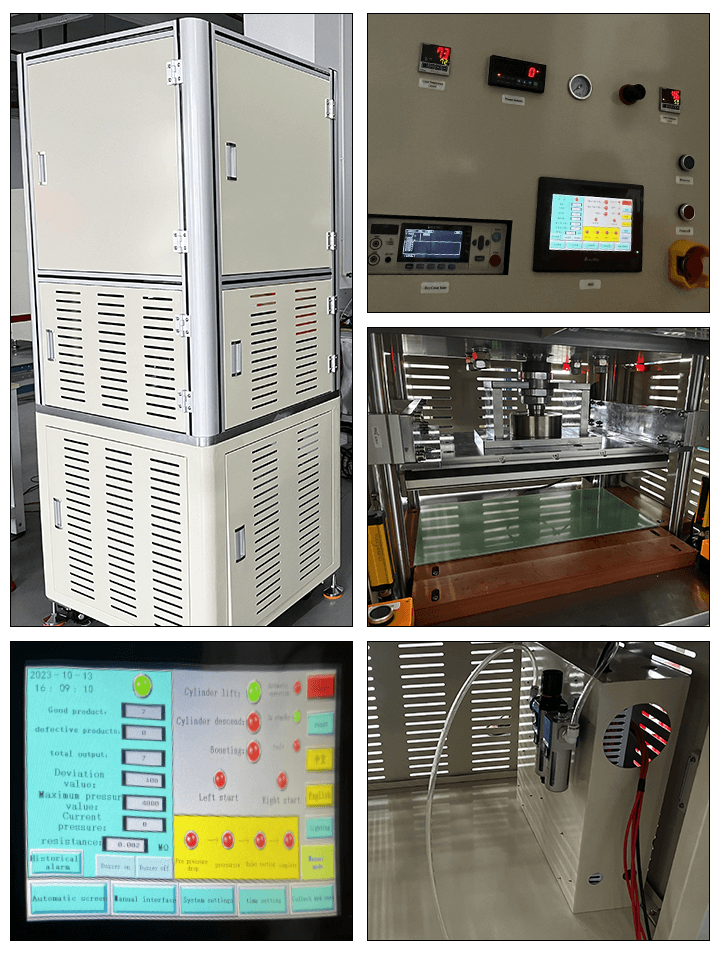

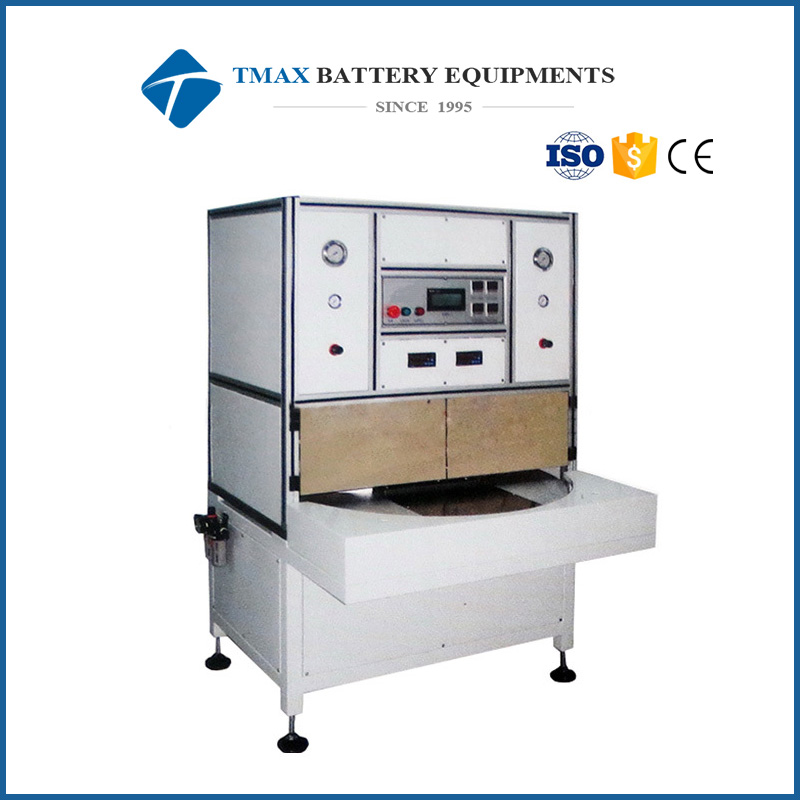

Turntable type hot press forming machine for lithium polymer battery
1.Applicable to soft packing lithium ion battery core continuous hot press forming.
2.Adopt temperature controller and thermocouple control heating tube to set temperature.
3.Booster cylinder make the up and down mould press on the battery, and transports the heat
to the battery.So the battery can shape by a certain temperature and pressure.
|
Main technical parameters |
TMAX-THPM |
|
Table size |
300*350mm Customizable |
|
Capacity |
According to the setting time |
|
Max press pressure |
0-3T Adjustable |
|
Depth of parallelism |
0.05mm |
|
Max heating temperature |
260°C Adjustable |
|
Temperature accuracy |
±5°C |
|
Air supply |
≥0.6MPa |
|
Source voltage |
AC220V |
