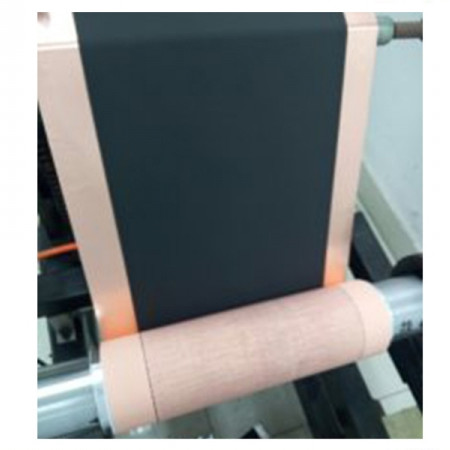

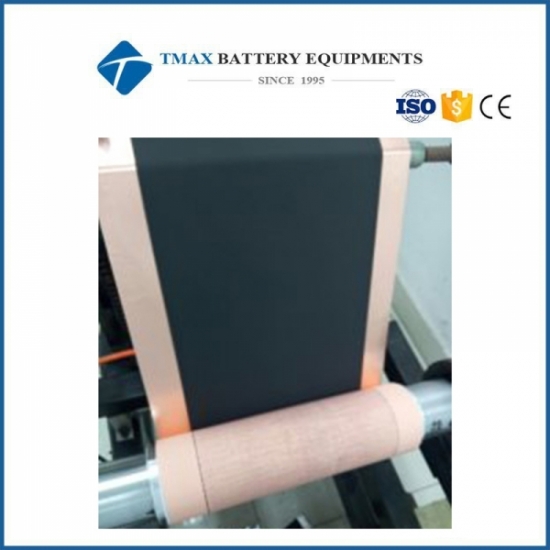

Thermally Conductive Coating Copper Foil For Lithium Battery Raw Material
Model Number:
TMAX-M-E02Compliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Thermally Conductive Coating Copper Foil For Lithium Battery Raw Material
Specification
1.Feature: High viscosity and excellent thermal effects, easy die
2.Application: tape, fins
3.Parameters
|
Attributes |
Unit |
Specification |
Remark |
|
Exterior |
- |
Black |
Visual judgment |
|
180 ° peel strength |
N / 25mm |
Min 6 |
GB / T 7122 |
|
Tensile strength |
Mpa |
400 |
GB / T 17200-2008 |
|
Max width |
mm |
800mm |
Customizable |
|
Temperature range |
℃ |
-20~120 |
- |
|
Thermal radiation coefficient |
- |
Min 0.98 |
Carbon graphite layer |
|
Thermal Conductivity |
W / m k |
400 + |
Copper |
|
Environment |
RoHS & Halogen Free |
||
