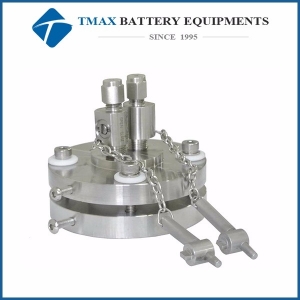

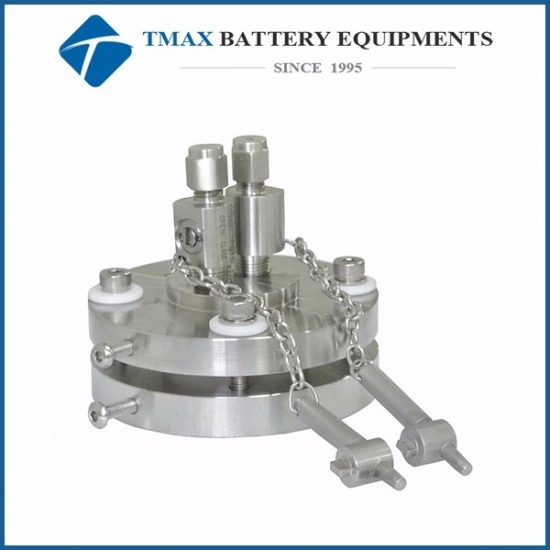

Steel Split Test Cell for Lithium Air Battery Research
Model Number:
TMAX-EQ-STC-LI-AIRNet Weight:
5kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

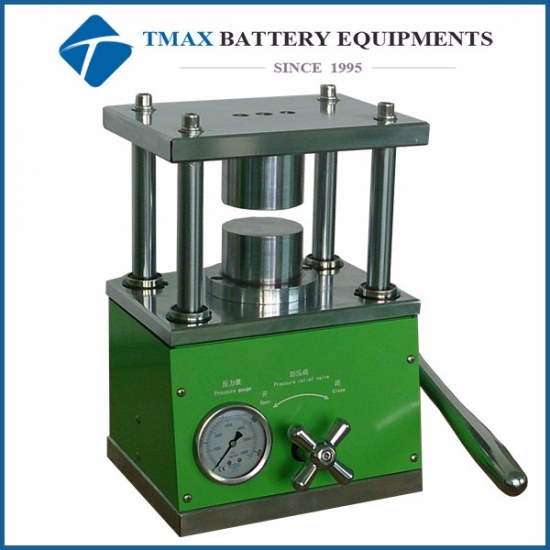

Laboratory Pressing Machine For Coin Cell Electrode Lab Press
1 TMAX-YP180 Hydraulic press machine is a desktop manual pressing machine for materials / chemistry research laboratories to prepare compound ceramic sample.
2 The Hydraulic press machine is mainly used for laboratory tablet battery materials manual press, and Pressure powdery cake. It is mainly used for coin cell/ button battery electrode lab press.
3 The Manual press machine mould can be customized according to customer’s requirements.
|
Model |
Hydraulic press machine TMAX-YP180 |
|
Press die size |
Diameter 68mm, customized |
|
Press stroke |
30mm |
|
Advantages |
By using aluminum alloy and high strength steel, surface after the environmental protection electroplating processing will never rust Using high quality imported mould material |
|
Rocker Pressure |
<6kg |
|
Max Pressure |
200kg/cm2 (The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage) |
|
Working Pressure |
80-100kg/cm2 |
|
Dimension(L*W*H) |
232*165*320mm |
|
Weight |
28kg |
|
Shipping Weight |
35kg |
|
Warranty |
One Year limited warranty with lifetime support |
