Split Test Cell for Lithium Air Battery Research
Model Number:
EQ-STC-LI-AIRCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

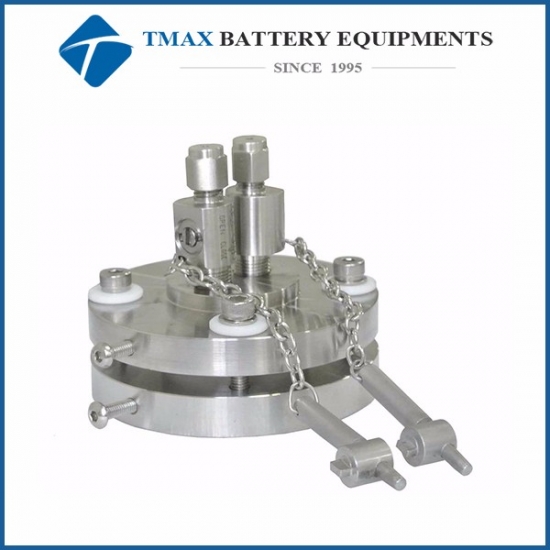

Split Test Cell for Lithium Air Battery Research
SPECIFICATION
The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy.
|

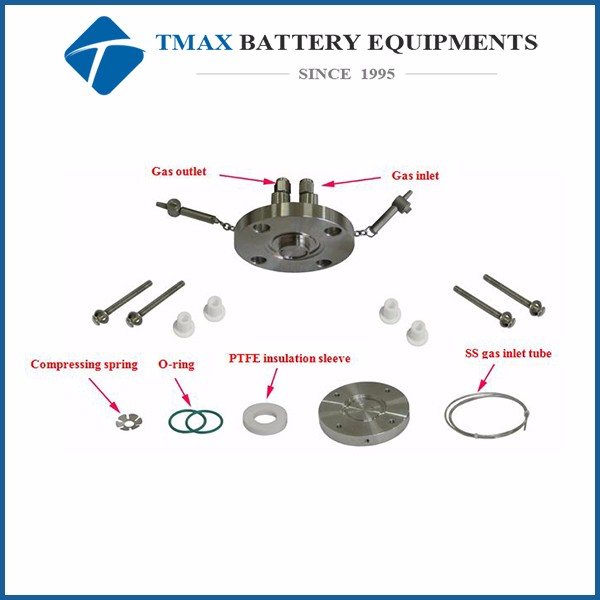

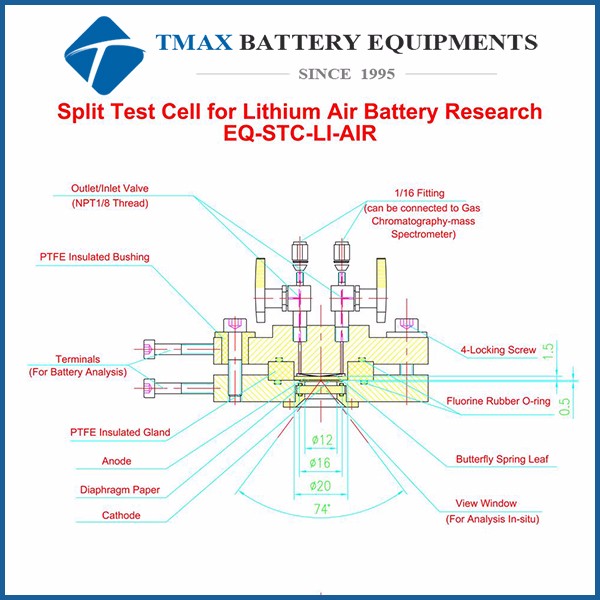

Structure |
1Stainless Steel Structure with internal Silver-Clad surface treatment better electrical conductivity and good corrosion protection 2 Two electrodes design 3 Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings 4 Compact design fits in any table top glove boxes |
|
Cell Thickness |
1~3mm (cathode +separator +anode) |
|
Bottom Recess Area |
16mm Dia. (The recess area can acceptance electrodes with size up to 16mm dia.) |
|
Max. Working Temperature |
250℃ |
|
Valves & Fittings |
Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet |
|
Warranty |
One Year limited warranty with lifetime support |
|

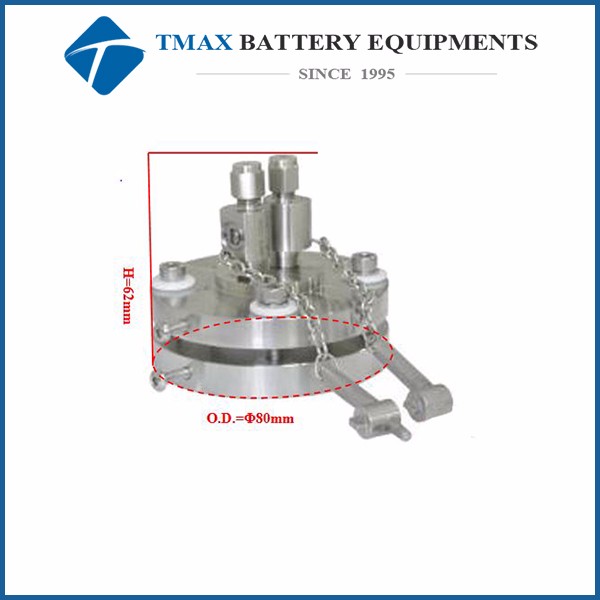

Dimensions |
φ80*62mm |
