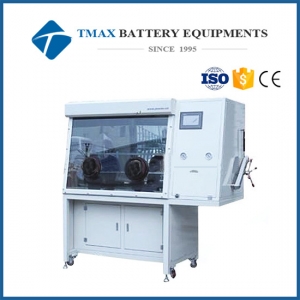

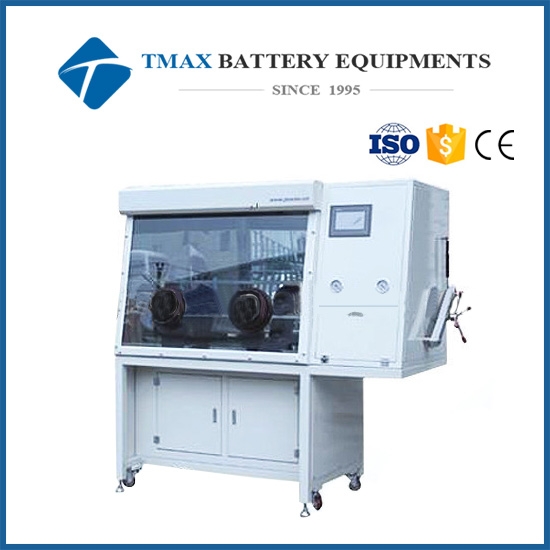

Single Position Vacuum Glove Box For Lithium ion Battery Lab Research
Model Number:
TMAX-VGBCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Single Position Vacuum Glove Box For Lithium ion Battery Lab Research
Features:
« Stainless Steel Vacuum Glove Box with Airlock chamber and gauges, transparent front panel make operation easy.
« Vacuum Pressure: in airlock chamber: up to 0.05 Torr (0.067 mbar); In all glove box: up to 0.5 Torr (0.67 mbar) (Note: The glove box is not designed for ultra-high vacuum. Stainless steel case may deform at higher vacuum)
« Positive Pressure: Max: 1.1 atm (note: gloves can not work if pressure is higher that 1.1 atm 810 torrs)
« Inert gases pressure maintain: > 12 hours. Main chamber leakage rate: < 3 torr/hour]
Specifications:
|
Model |
VGB-1 |
VGB-3 |
VGB-4 |
|
Material |
Stainless steel |
|
|
|
Air Lock Size |
200 diameter*260 length mm |
240 diameter*260 length mm |
360 diameter* 435 length mm |
|
Main Chamber Size |
550W*440D*410Hmm |
780L*650W*700H mm |
1120W*740D*900H mm |
|
Front Window Size |
500mm W x 165 mm H |
710mm W x 320 mm H |
1040mm W x 400mm H |
|
G.W. |
100kg |
236kg |
360kg |
|
Glove Box Gloves |
Latex Glove (Standard) |
|
|
|
Option |
1) Butyl Gloves 2) Glovebox Port 3) Pressure Controller |
|
|
