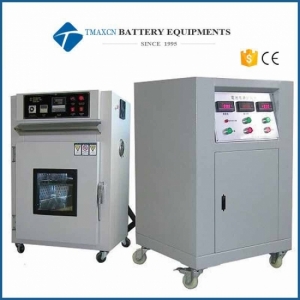

Short Circuit Test System for Testing Rechargeable Batteries & Backs With High Current
Model Number:
TMAX-BE-1500ADimension(L*W*H):
650*750*950mmNet Weight:
About330KgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Short Circuit Test System for Testing Rechargeable Batteries & Backs With High Current
SPECIFICATIONS
|
Type |
TMAX-BE-1500A |
TMAX-BE-2000A |
TMAX-BE-5000A |
|
Short circuit current |
1500A |
1000A、2000A |
2000A、5000A |
|
Temperature explosion - proof box |
0~100°C can be choose |
||
|
DC Response Time |
≤5us |
||
|
Device resistance |
≤5mOhm |
||
|
Remote distance |
7m No solid obstacle |
||
|
Short circuit time |
1~9999S or 1M~99H59M can be set |
||
|
Dimension |
W650*D750*H950mm |
||
|
Explosion-proof box size |
W800*D1000*H1000mm,thickness:8mm |
||
|
Power supply |
AC220V 50HZ |
||
|
Power |
1.0KW |
||
|
Weight |
About330Kg |
||
