Semi-Automatic Supercapacitor Lab Pilot Assembly Machine Plant

Ⅰ、Introduction

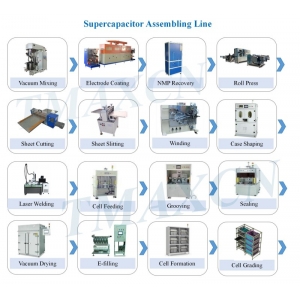

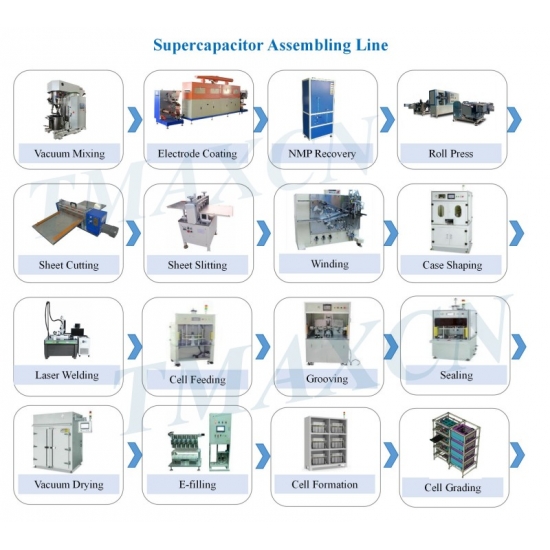

This line is suitable for cylindrical supercapacitor equipment such as 60138, it's a semi-automatic assembly line, and can also be customized as fully automatic equipment according to customer requirements.

Ⅱ、Process

1. Raw material baking-remove moisture from the material

2. Mixing the cathode and anode materials

3. Slurry viscosity testing

4. Magnetic de-Ironing filtration

5. Electrode coating

6. Waste gas treatment

7. Electrode pressing

8. Electrode slitting

9. Electrode winding

10. Super capacitor core shaping

11. Welding of current collector

12. Welding of upper collector and upper cover

13. Shell feeding (shell feeding machine)

14. Grooving and pre-sealing for supercapacitor

15. Supercapacitor final sealing

16. Positive connection (laser welding machine)

17. Baking (vacuum baking system)

18. Put electrolyte filling machine into glove box

19. Electrolyte filling

20. Rubber plug sealing

21. Press aluminum plug

22. Injection port welding

23. Aging and testing

Ⅲ、Equipment components:
