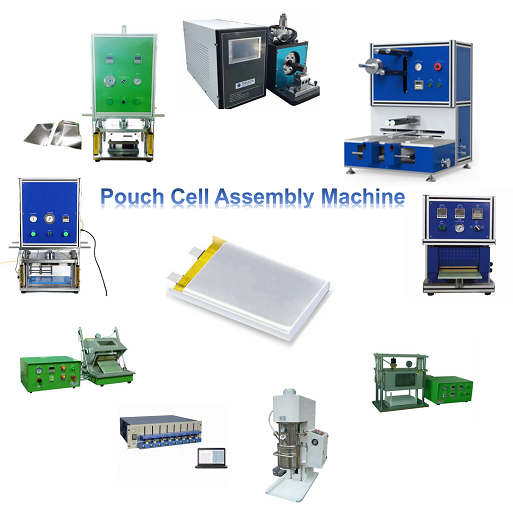

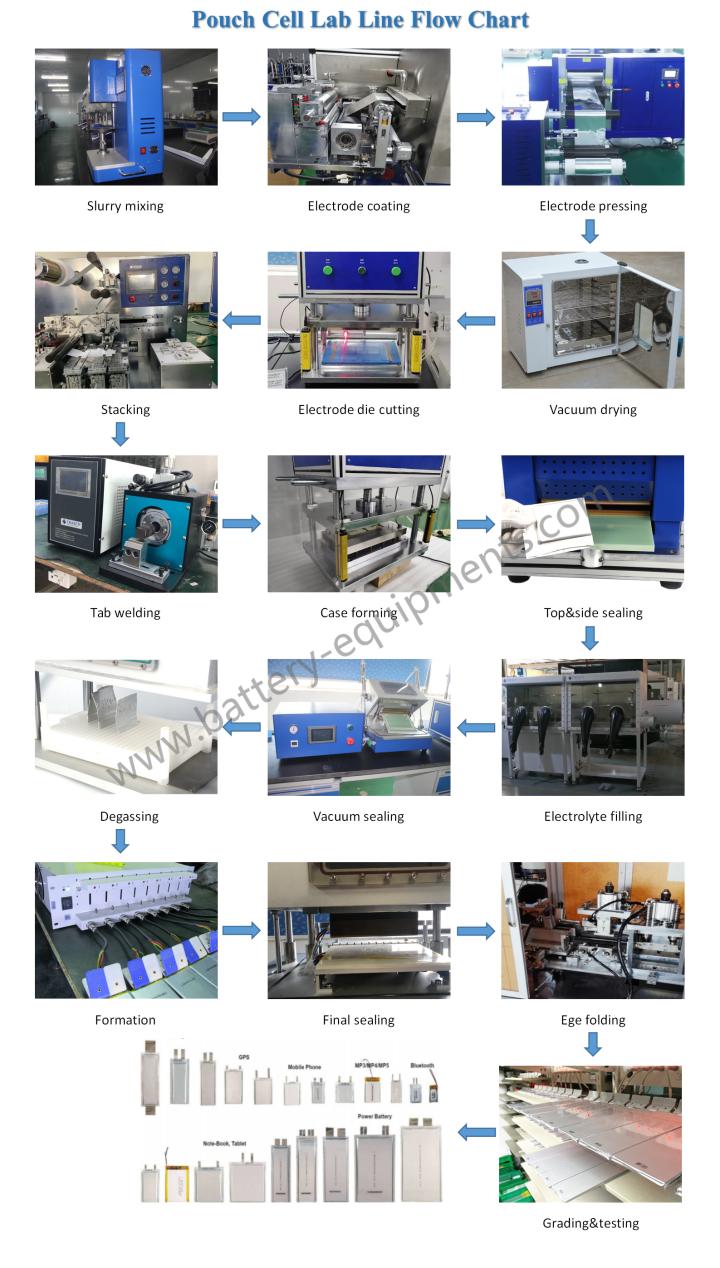

Semi-auto Electrode Winding Machine With PLC Controller For Pouch Cell Assembly

Model

YS-BLY80

YS-BFX130

YS-BFX180

Cathode / Anode Winding

· Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on...

· Anode: Copper foil coated with graphite

· Thickness Range: 0.1-0.2mm

· Suggested Overall Length: <250～2500mm

· Maximum Width: 18-80mm

· Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on...

· Anode: Copper foil coated with graphite

· Thickness Range: 100~300um

· Suggested Overall Length: <1500mm

· Maximum Width: 128mm

· Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on...

· Anode: Copper foil coated with graphite

· Thickness Range: 100~300um

· Suggested Overall Length: <1500mm

· Maximum Width: 178mm

Separator Winding

· PP or PE

· Thickness Range: < 0.016-0.045mm

· Separator roll diameter:300mm

· Width:       20-80mm

· PP or PE

· Thickness Range: <100um

· Max. adaptable size:

· Thickness: < 10 mm

· Width:       60 - 130 mm

· PP or PE

· Thickness Range: <100um

· Max. adaptable size:

· Thickness: < 10 mm

· Width:       60 - 180 mm

Winding Blade Width

30 - 100mm

30 - 100mm

 30 - 100mm

Working Voltage

Single-phase 110-240VAC, 50/60Hz

Max. Power Consumption

1.5KW

Winding Accuracy

Edge Evenness: <0.5mm

Tension Control

<150g adjustable

Winding Speed

0 - 400 RPM adjustable

Feeder Bed

1500mm Long

Compressed Air Requirement

0.7MPa (Please note that an air compressor is needed for the operation of this machine. Air Compressor is NOT included.)

Warranty

Two Years Limited Warranty With Lifetime Support

Compliance

CE certified
