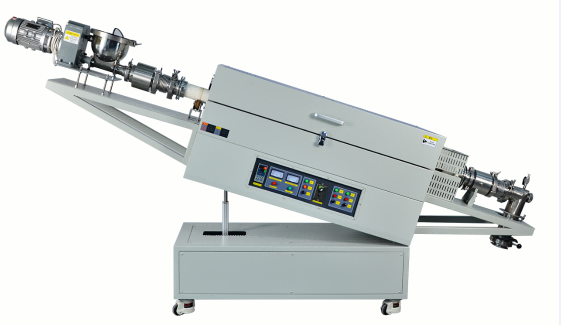

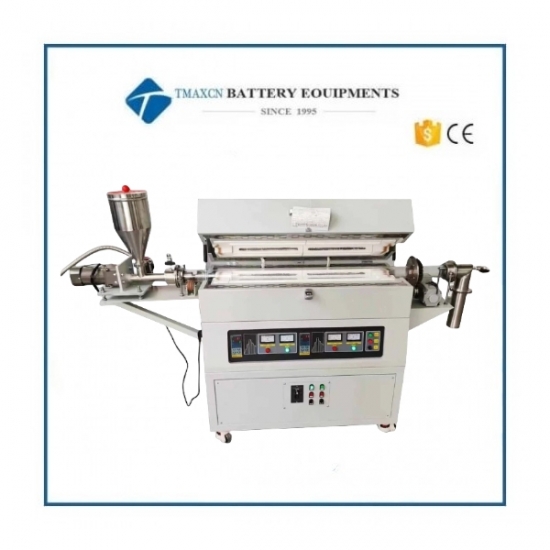

Rotary Tilting 1200C Single-Zone Tube Furnace With Automatic Feeding System

Rotary Tilting 1200C Single-Zone Tube Furnace With Automatic Feeding System

Main parameter	PN: SK2-12TPRTC3 Max.Temp: 1200C Working temperature:0-1100C  The tube diameter:60mm The heating zone length:350+350mm Tube material:Quartz tube Heating rate:0~20 Degree/Min Voltage:220V,single phase 50/60HZ Heating element:Resistance wire Thermocouple:K type Temperature accuracy: ±1℃

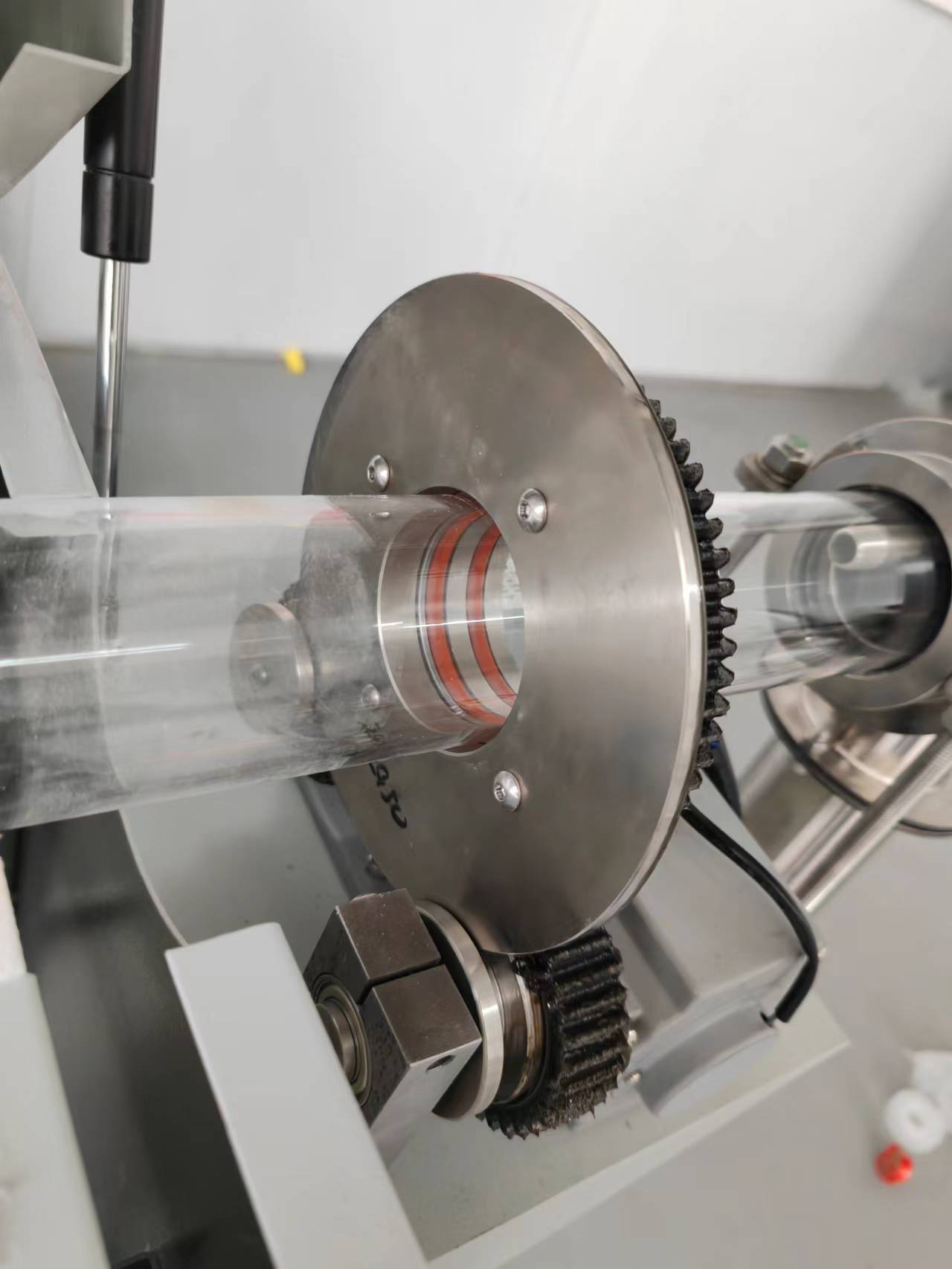

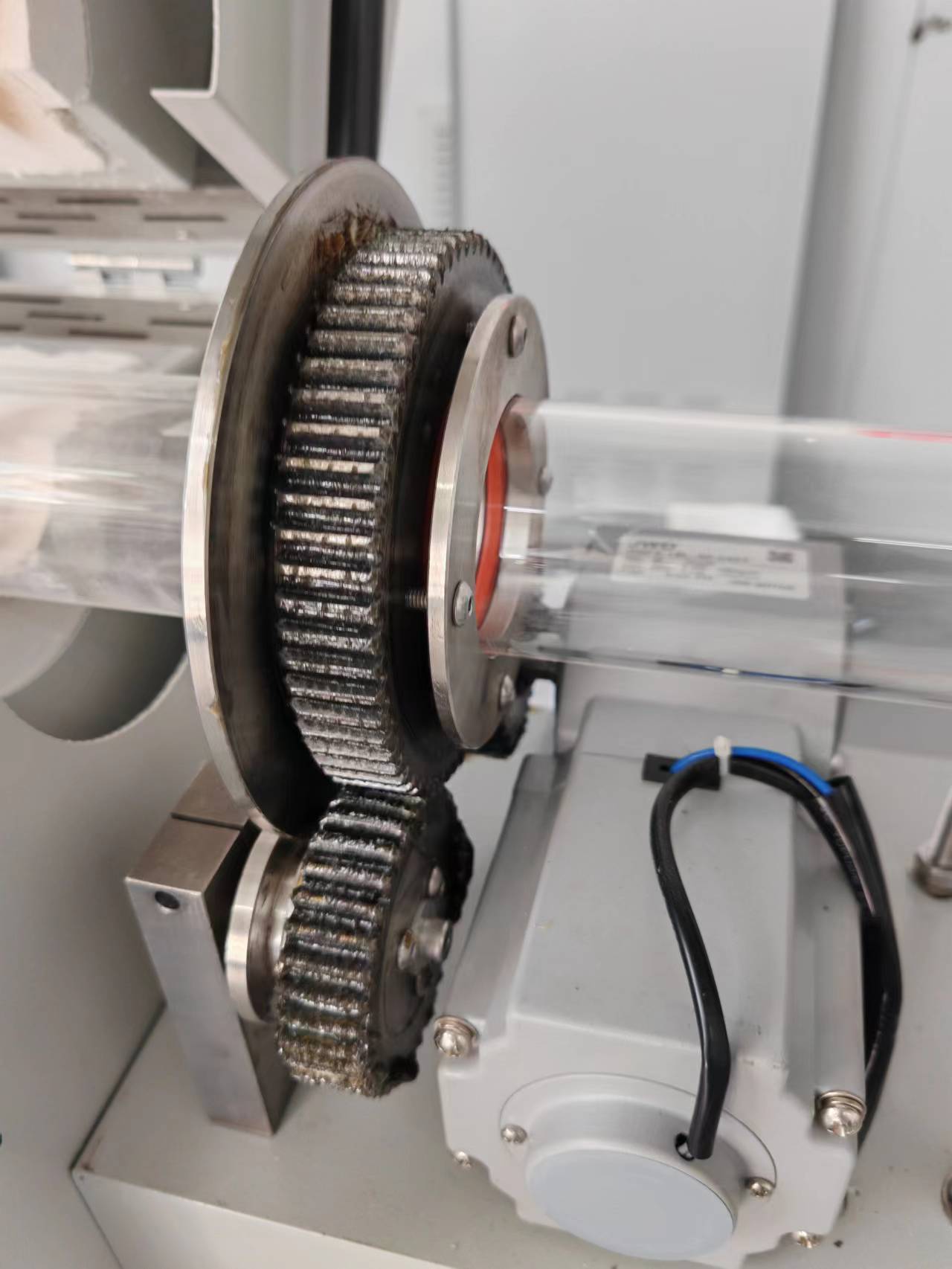

Rotary system	Tube rotate speed:0-20 RPM The tube can rotate 360 degrees,electric gear drive Push button control switch
Tilting system	Maximum inclination: 0-30° (adjustable) Bar-driven Push button control switch

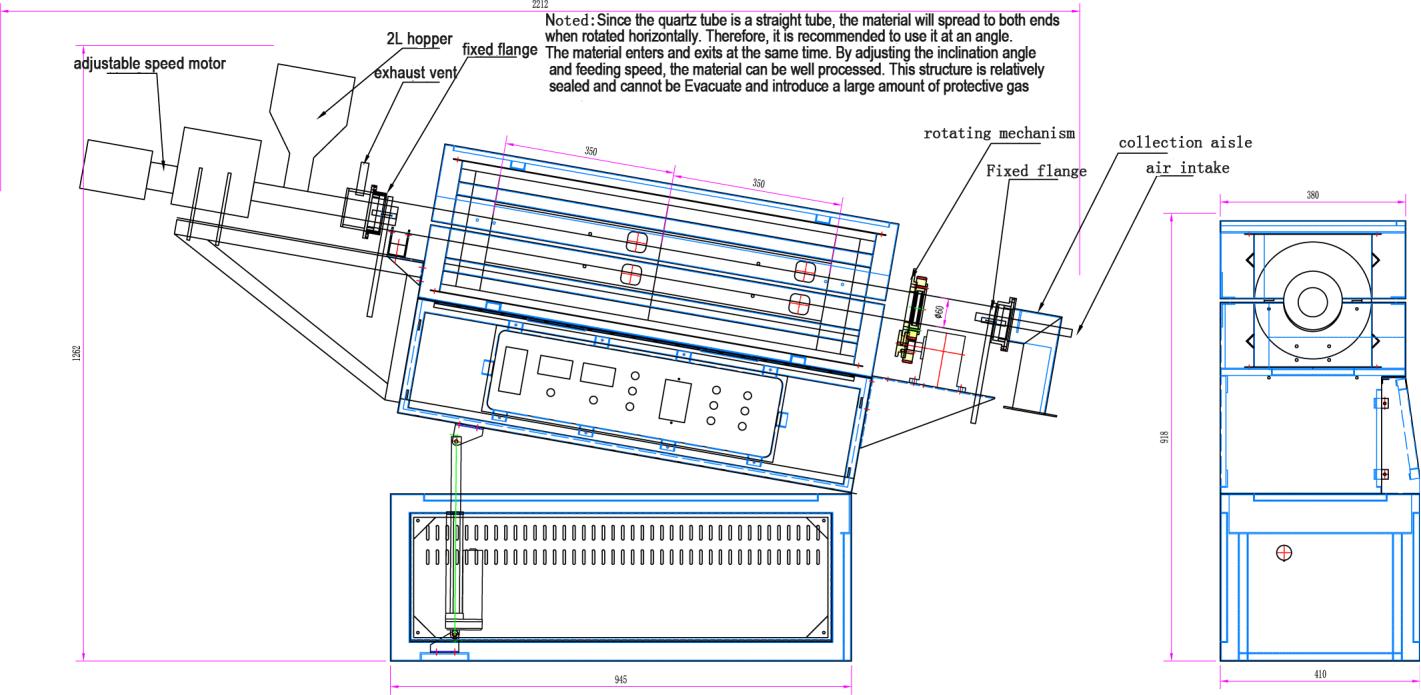

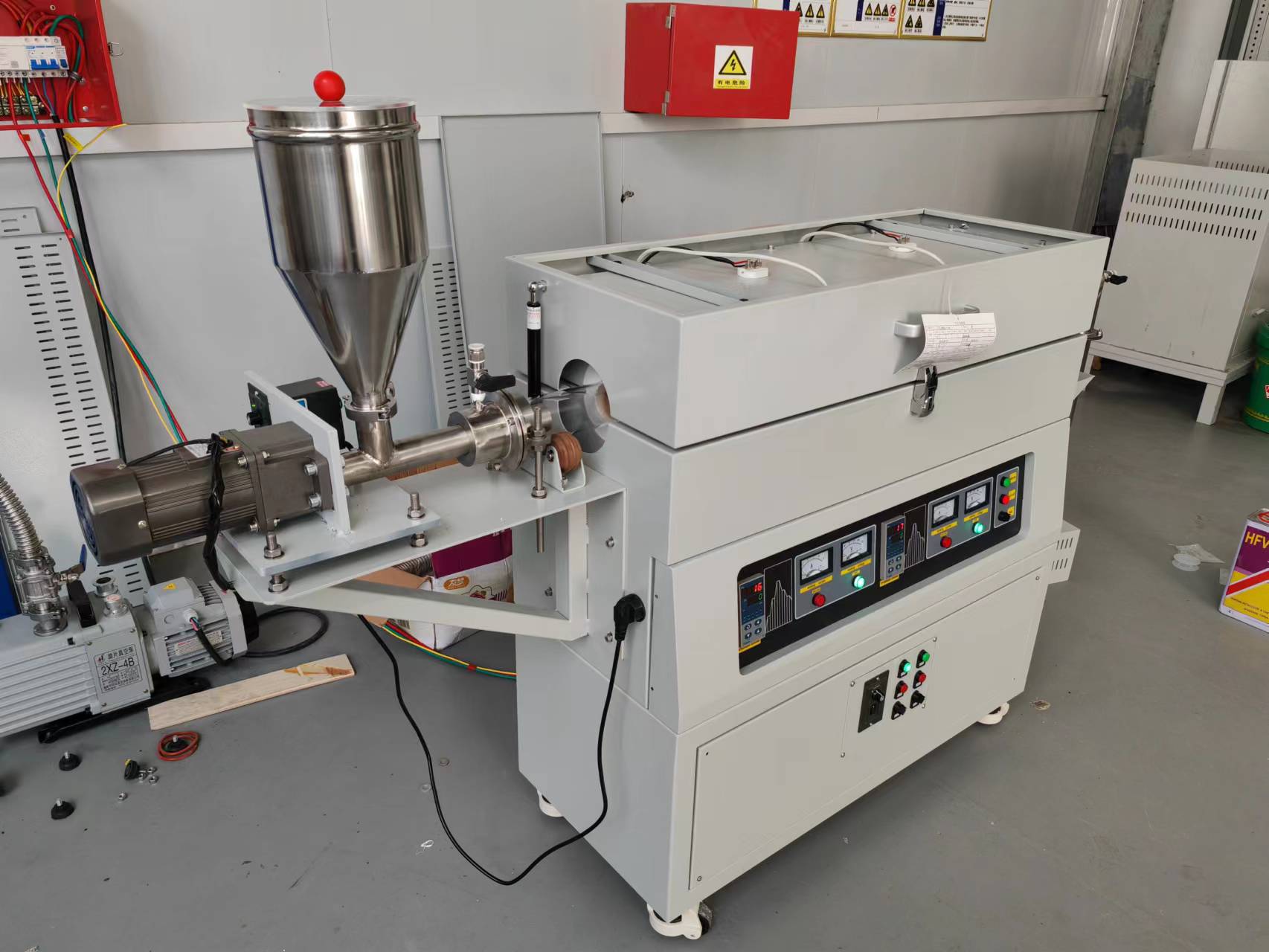

Feed system	The motor drives the screw push rod to push the material into the tube With 2L Material tank

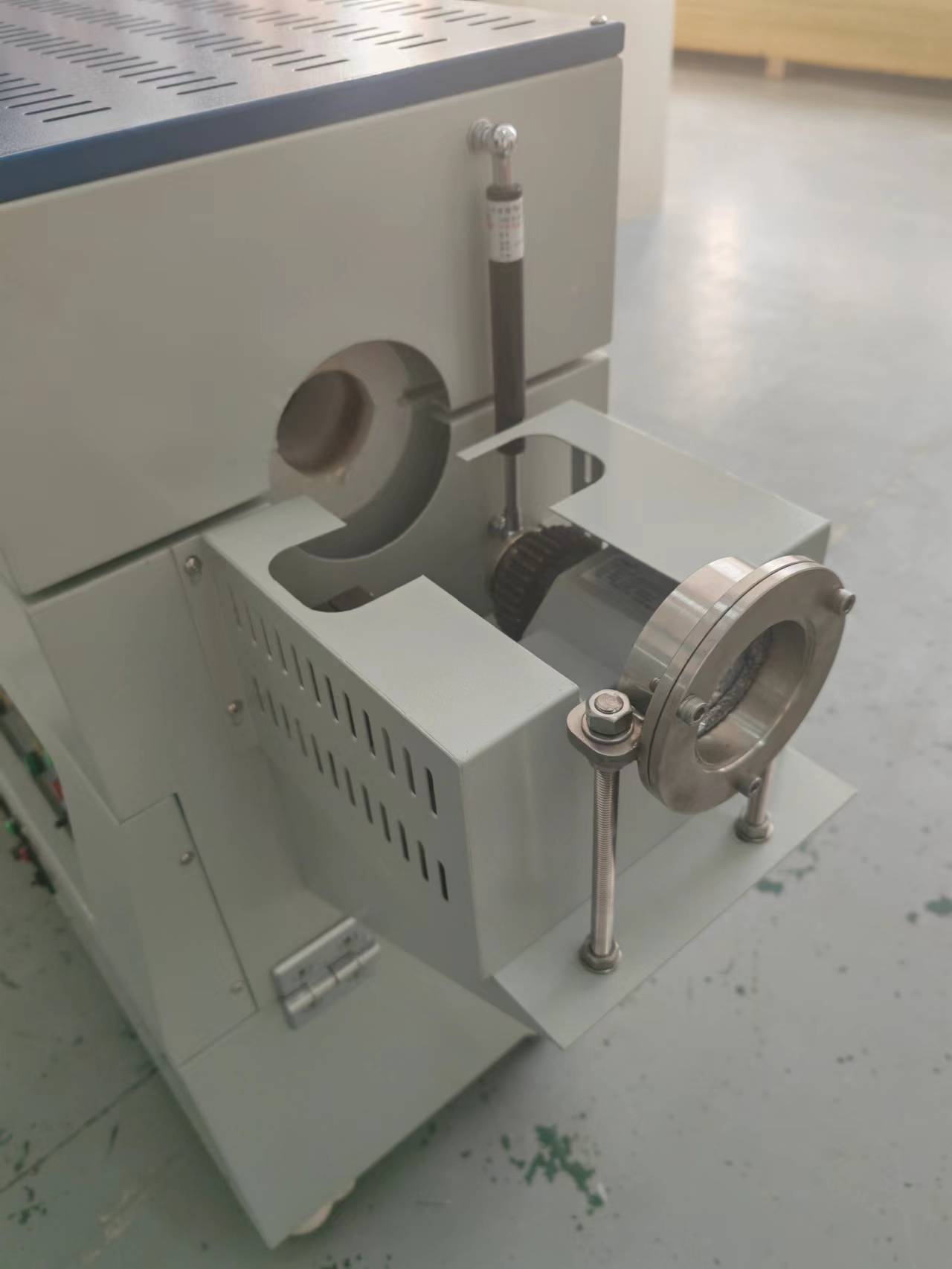

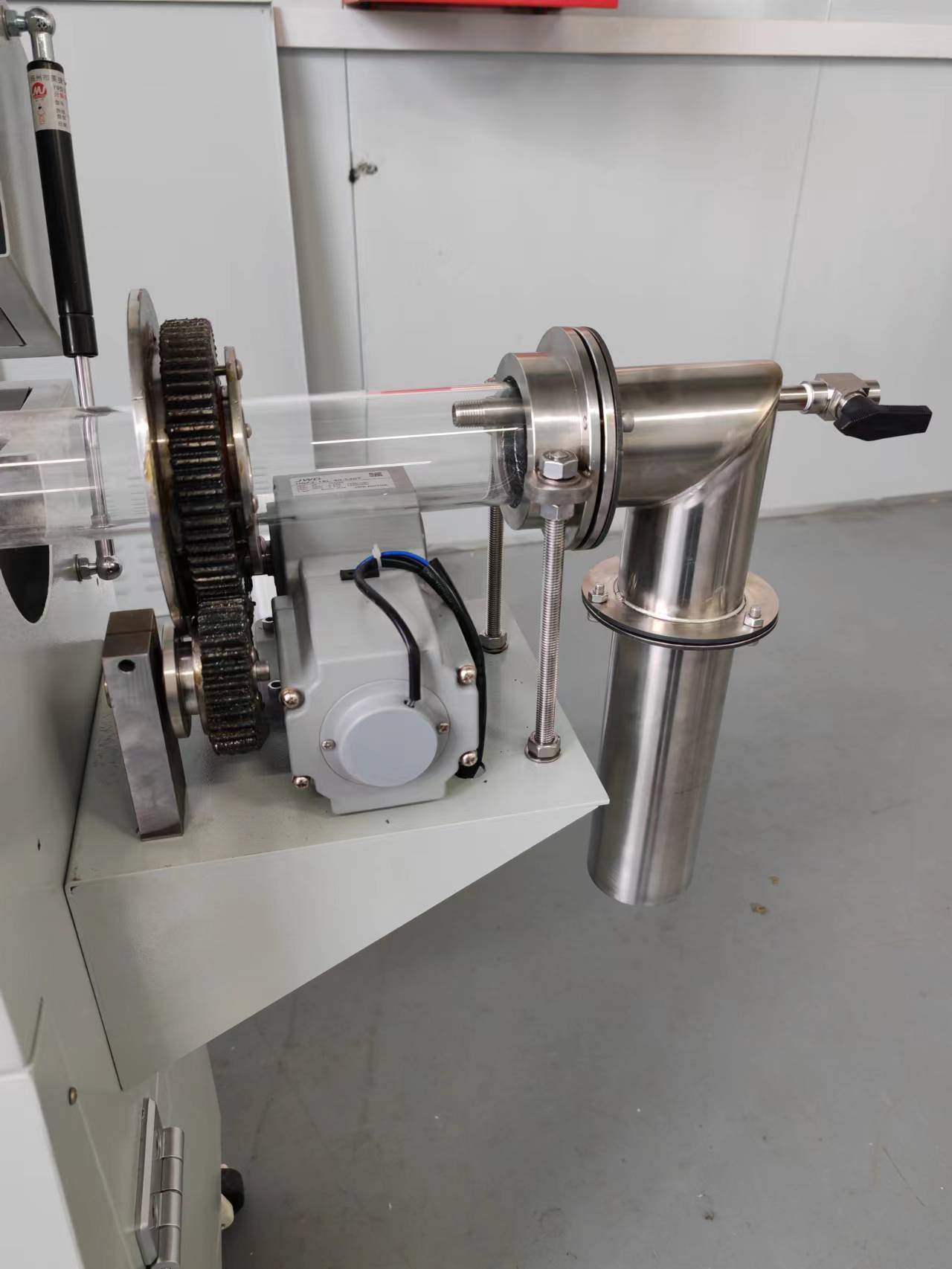

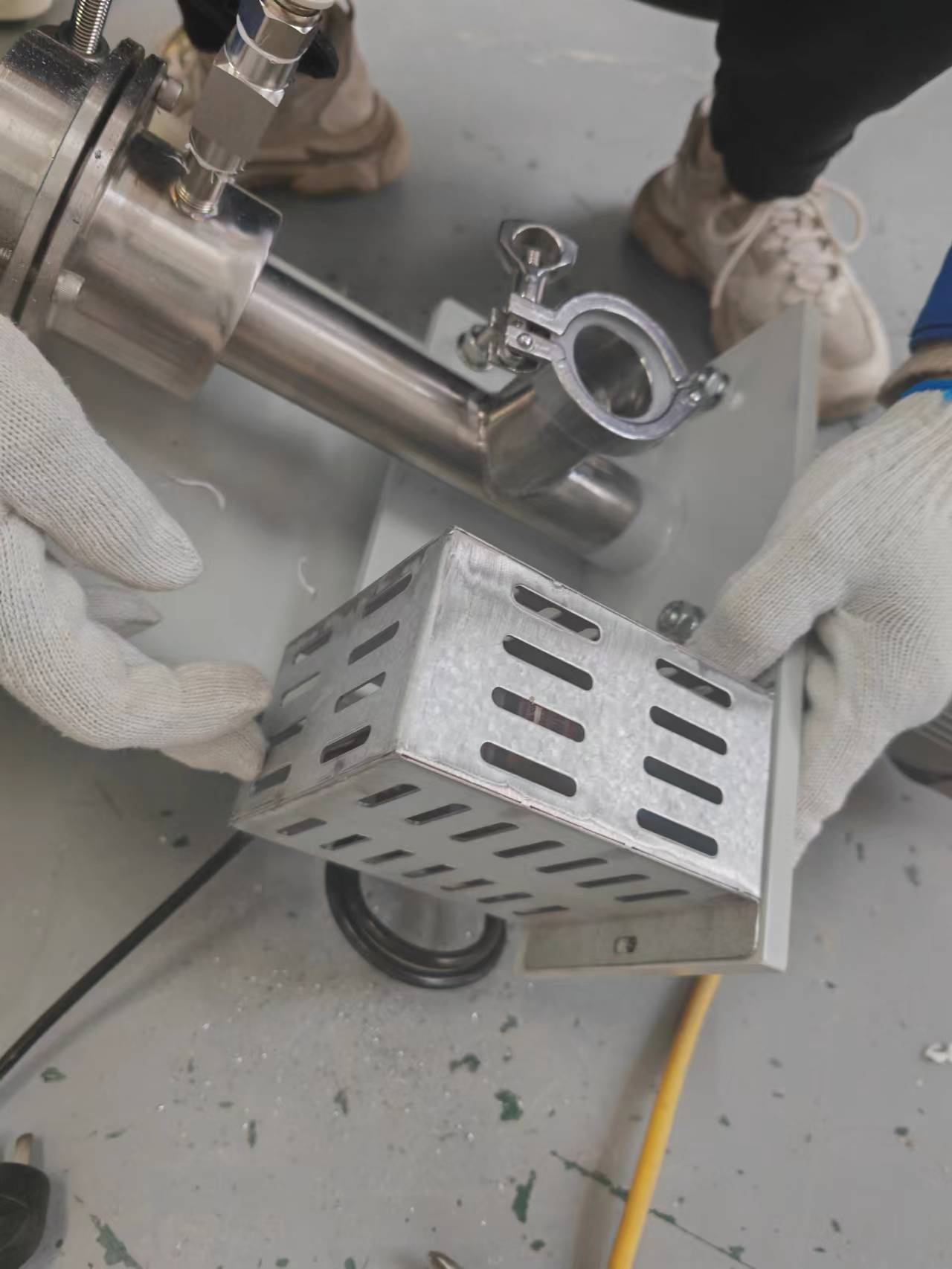

Discharge system	Flange with unloading tank, the furnace body is tilted to stir unloading
Appearance design	The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.
Furnace Chamber material	Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.
Furnace chamber design	Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.
Furnace shell  structure	Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

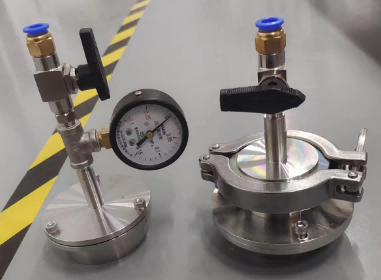

Sealing way	Adopt 304 stainless steel ferrofluid flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

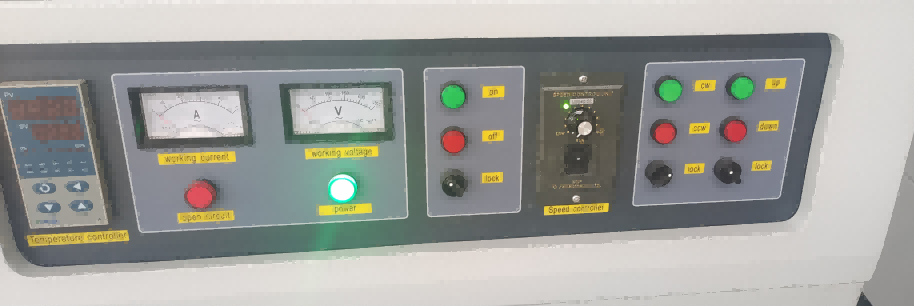

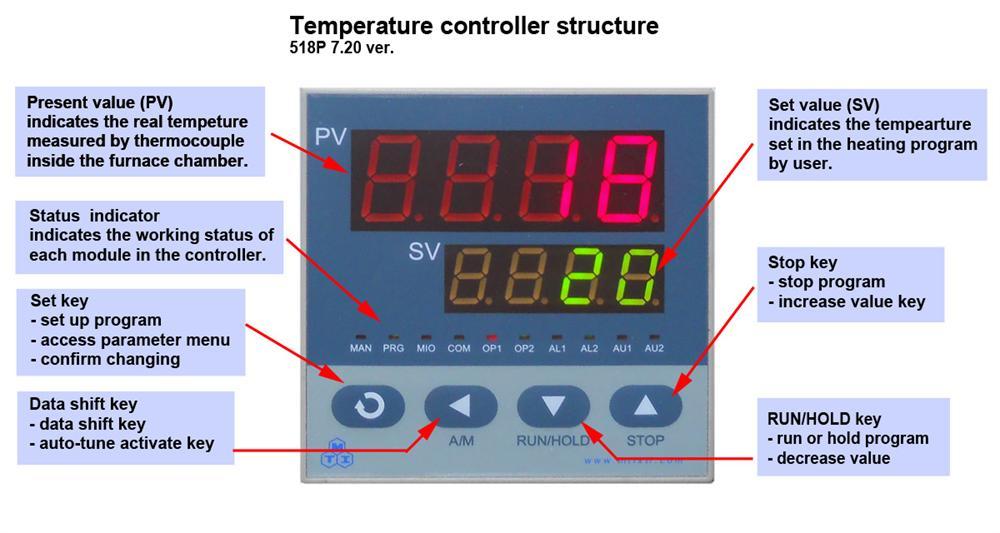

Temperature controlling	Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.
Temperature control security	The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.
Warranty	One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Certificates: CE,ISO&UL
Standard Package Accessories:
Electric Furnace		1 set
High temperature gloves		1 pair
Crucible hook		1 pc
Quartz tube		1 pcs
Stainless steel flange		1 set

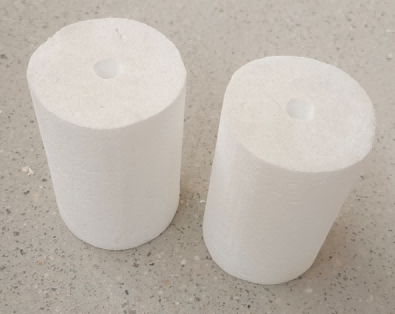

Tube stopper		2pcs
Feed and discharge system		1set
User manual		1 book
