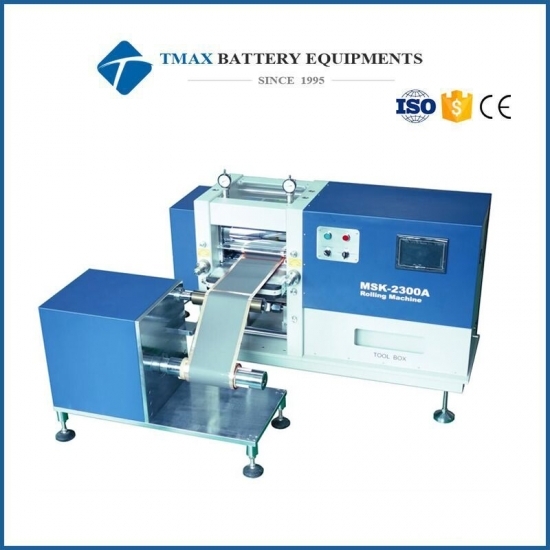

Roll To Roll System Pressure Controlled Heat Calender Rolling Press Machine
Model Number:
TMAX-MSK-E2300BDimension(L*W*H):
Diameter 100/200/300Net Weight:
150kgWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Roll To Roll System Pressure Controlled Heat Calender Rolling Press Machine
TMAX-MSK-E2300B is an Automatic Battery Electrode Rolling Press System with precision digital pressure control in a compact footprint that is less than 6'x6'.
It integrates tension controlled feeding and winding devices together with Pressure Controlled Electric Rolling Machine to achieve attention-free electrode
rolling & pressing up to 80 meters long with the 270mm max width. It is a perfect tool for building prototypes (e.g. pilot scale studies) of new generation
rechargeable batteries to prepare electrode sheets at consistent and repeatable rolling conditions.
SPECIFICATIONS:
|
Working Voltage |
108 - 240 VAC, 50/60Hz, Single Phase 220V AC Power plug is not included |
|
Max. Power Consumption |
2.5kW |
|
Rollers (one pair) |
Dimensions: 200mm (Dia.) x 300mm(W) Material: Hardening Toll Steel with HRC 60-62 Effective Rolling Width: <270mm |
|
Press gap |
0.050 - 1 mm adjustable by Dual micrometer knobs Tolerance: 0.003mm |
|
Motor & Rolling Speed |
550W AC motor with frequency controller 1 - 6 Meter /Minute adjustable by Touch Screen Control Panel |
|
Roller Surface Hardness |
60-62 HRC Never roll materials with hardness >50HRC |
|
Press Planeness |
±0.0025mm |
|
Pressure Control |
Pressure load: 1 - 25 Tons adjustable by Touch Screen Control Panel Real time pressure displays with data recording function |
|
Rectifying Sensor |
Built in Rectifying Sensor to ensure neatly reeling electrode foil after pressing |
|
Compressed air |
60psi required (Air compressor is not included. ) |
|
Rolling Unit Dimensions |
Rolling Machine: 1200mm(L) x450mm(W) x 800mm(H) The system with feeding & winding: |
|
Warranty |
Two years limited warranty with lifetime support |
|
Net Weight |
150 kg |
|
Shipping Weight & Dimensions |
Two Pallets 60"x50"x50" 50"x40"x60" |
