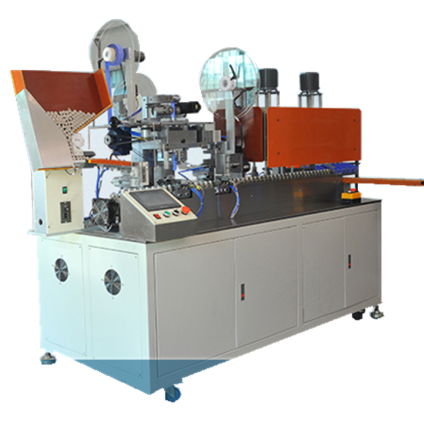

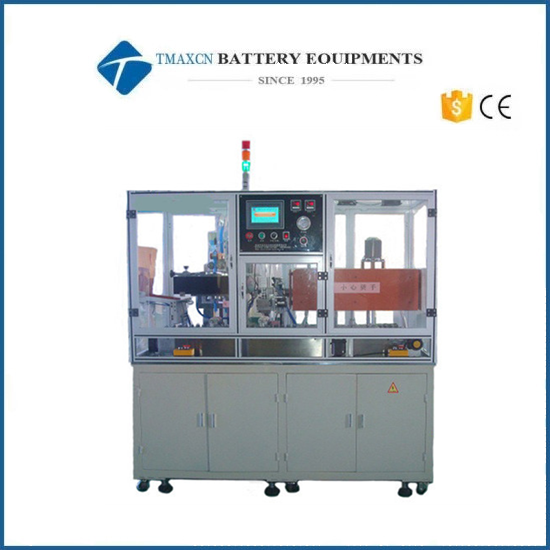

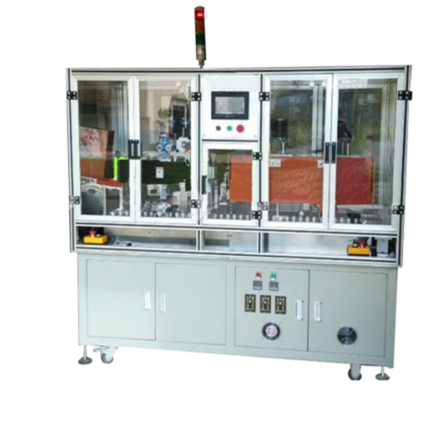

PVC Heat Shrinking Wrapping Machine for 18650 26650 32650 21700 Cylindrical Battery Making
Model Number:
Tmax-ShrinkingInput Power:
9KWDimension(L*W*H):
2100(L)*950(W)*1600(H)Net Weight:
800KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
PVC Heat Shrinking Wrapping Machine for 18650 26650 32650 21700 Cylindrical Battery Making
Features
1. High efficiency: the film efficiency is 50~70PCS/MIN. It is 6~10 times of artificial efficiency;
2. High precision: the precision servo motor and high-precision mechanical structure make the film precision up to ±0.1MM, and the technology is leading the industry;
3. Highly intelligent: the humanized operation interface is convenient for manual operation, the fault is automatically alarmed, and the fault point is clear at a glance;
4. Simple operation and maintenance: the personnel can operate the equipment with a little training, and the maintenance is relatively simple;
5. High flexibility of equipment: After replacing the fixture and mold, it can be adapted to cylindrical batteries such as AA, AAA and 18650.
Specifications
|
Model |
Tmax-Shrinking |
|
Specification |
AA,AAA,18650 |
|
Film speed |
50~70PCS/MIN |
|
Film precision |
±0.1MM |
|
Power supply |
380V/220V |
|
Air pressure |
0.5~0.7Mpa |
|
Power |
9KW |
|
Weight |
800KG |
|

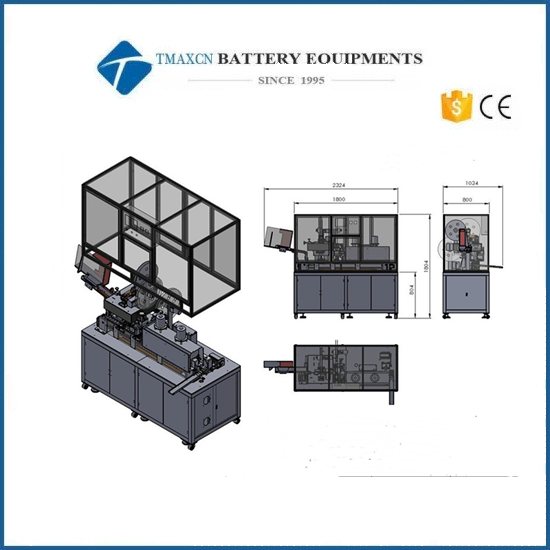

Machine size |
2100(L)*950(W)*1600(H) |
|
Casing requirements |
The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm. |
|
Insulation sheet coil size |
width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil) |
|
Insulation sheet die size |
Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm |
|
Heat shrinkable bottom edge size |
2.5mm ± 0.3mm (size error is related to casing material and baking conditions) |
