Programmable Control Vertical Dip Coater with Heating Plate Reach 120C
Model Number:
TMAX-CT3Dimension(L*W*H):
363*227*416mmCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

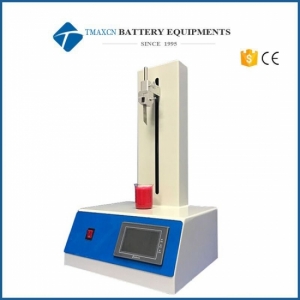

Programmable Control Vertical Dip Coater with Heating Plate Reach 120C
Brief Introduction
TMAX-CT3 is a dipping coater with heating plate which maximum temperature can reach 120 degree. It is suitable for liquid coating preparation in laboratory.
It is controlled by intelligent programmable control, easy to operate.
TMAX-CT3 can be done automatically in coating solution for many times coating requirements, the repeating coating time can reach 999 times.
All of the running parameters such as: running speed, dipping speed, dipping time, interval time, repeating time can be settled on the LCD touch panel.
Heating is controlled by high precision temperature controller.
Features of DIP Coater
1. 4.3" LCD Touch panel, easy to operate
2.High Precision temperature control, Anodic aluminum oxide heating panels
3.Compact structure, can be put inside of the glove box
4.Can set the up/down height manually.
5.Programmable control, can restore 100 sets coating curve
Technical Parameter of Dip Coater
|
Model No. |
TMAX-CT3
|
|
Working Speed |
0.1~600mm/min |
|
Maximum distance |
100mm |
|
Displacement accuracy |
±0.1mm |
|
The Rated Thrust Linear |
> 50N |
|
Dipping time |
0~9999.9s |
|
Repeat number of coating |
0~9999.9s |
|
Maximum wafer diameter |
100mm |
|
Gross Weight |
5KG |
|
Display |
4.3” LCD Color Touch Screen |
|
Control |
Programmable steps control, can store 100steps. |
|
Working voltage |
AC100-230V,50Hz/60Hz |
|
Dimension |
363*227*416mm |
