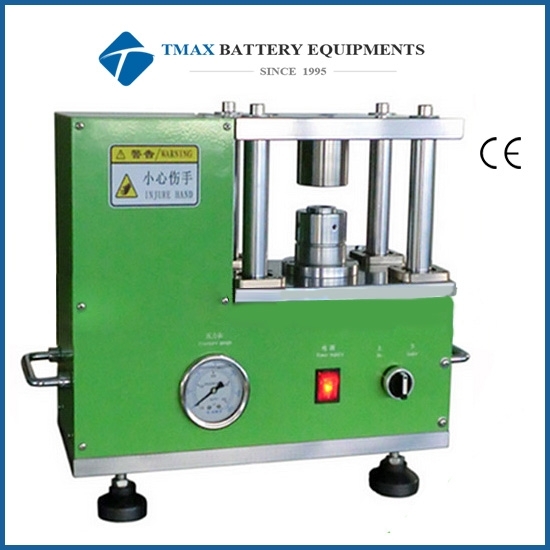

Pressure Adjustable Electric Button Cell Crimping Machine for CR20XX Coin Cells
Model Number:
TMAX-DF160Dimension(L*W*H):
385mm(L) x 160mm(W) x 325mm(H)Net Weight:
55 kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Pressure Adjustable Electric Button Cell Crimping Machine for CR20XX Coin Cells
1.For CR2016,CR2025,CR2032 etc.
2.NW:33kg
3.Small volume,simple operation
4.One-stop service for lithium ion battery
TMAX-DF160 is a CE Certified Electric Crimping Machine crimper machine for the CR20XX series coin cells such as CR2016, CR2025, and CR2032.
It is an ideal tool designed for Laboratory Lithium ion battery R&D. There are two sets of dies included in the standard package for enabling this machine’s crimping or de-crimping capabilities also have the Small volume,simple operation and formation accurately
|
Voltage
|
110 - 240V AC 50/60Hz
|
|
Max pressure
|
200kg/cm2
|
|
Die Set & Compatibility
|
|
|
Structure
|
Heavy Duty Steel Platform
|
|
Product Dimensions |
385mm(L) x 160mm(W) x 325mm(H)
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One Year limited warranty with lifetime support (Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
|
|
Application Notes
|
Maintaince: Electrolytes are highly corrosive materials, and therefore the dies must be cleaned with alcohol after each use to avoid corrosion and change of shape
|
|
Net Weight
|
33 kg
|
|
Shipping Weight
|
55 kg
|
