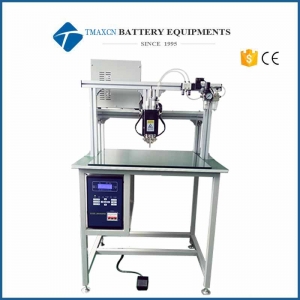

Pneumatic Inverter DC Tab Spot Welder Welding Machine For Battery Pack Assembly
Model Number:
TMAX-DC-01Type:
PneumaticInput Power:
35kwDimension(L*W*H):
185x280x420mmCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Pneumatic Inverter DC Tab Spot Welder Welding Machine For Battery Pack Assembly
FEATURE:
The equipment includes inverter, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.
The spot welder is widely used, and the welding transformer has a small volume and a large output energy.
ADVANTAGE:
1.The current is rectified in order to supply DC welding current.
2.It helps to reduce the energy of iron core material.
3.Transform the electric energy into DC power
4.DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .
Specification:
|
Model |
TMAX-DC-01 |
|
Transformer Maximum Output Power |
35KVA |
|
Maximum Output Short Circuit Current |
5000A |
|
Welding Conditions |
8 |
|
Open Circuit Voltage |
10V |
|
Control Mode |
Constant Current Control |
|
Input Frequency |
AC 220V±10% 50Hz |
|
Weight |
55KG |
|
Welding Thickness |
Maximum thickness of parallel welding:0.03mm~0.5mm |
|
Maximum Thickness of Upper and Lower Butt Welding |
0.3mm+1mm |
|
Size |
185x280x420mm |
