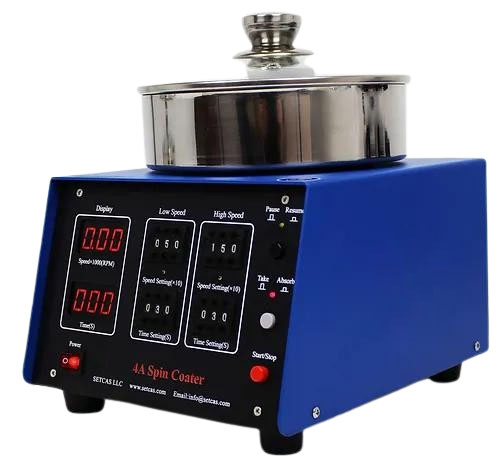

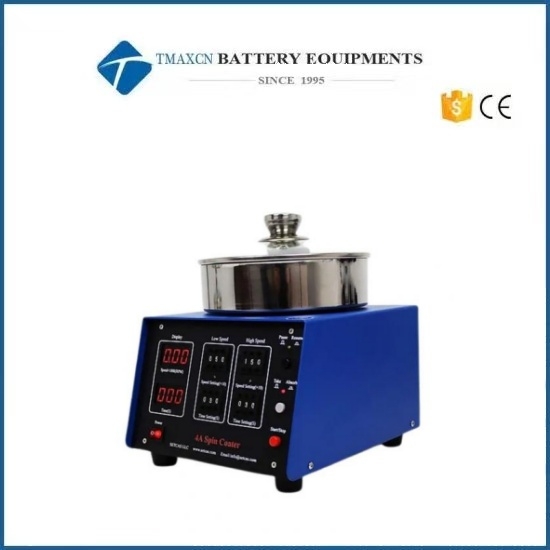

Manual Vacuum Spin Coating Machine with Plate Holder Suitable for 4 Inches Substrate For Perovskite Solar Cell Research
Model Number:
TMAX-4AWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Manual Vacuum Spin Coating Machine with Plate Holder Suitable for 4 Inches Substrate For Perovskite Solar Cell Research
Key Features:
1. Take/Absorb button controls the start and stop of the pump, reduce the pump noise pollution and extend the pump life.
2. With countdown display function: accurate timing, improve repeatability, and ensure the consistency of film thickness in multiple batches.
3. Take/Absorb button and Start/Stop button interlock, prevent the substrate flying out.
4. Prevent the process chemicals and solvents contact with the motor.
5. Support two user-defined program steps for each recipe.
6. Set speed and time with the keypad, convenient and accurate.
7. Pause/Resume button control the pause and resume of the spin.
8. Take/Absorb button controls the start and stop of the pump, reduce the pump.
Spin Coater Specifications
Substrate size |
5mm to 100mm( 4 inches) |
Plate holder type |
Specially designed plate holder to prevent glue from entering |
Low Speed range |
500-8500rpm |
High Speed range |
1000-8500rpm |
Spin time |
0-999s |
Dual LED digital display |
1. Speed display,2. Countdown time display. |
Control method |
Set speed and time with the keypad |
Motor speed stability |
±1RPM |
Spin coating uniformity |
±1% |
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
Pumping speed |
≥60L/MIN |
Max vacuum |
-85KPA |
Sound Level |
≤55db |
Spin coater power |
200W |
Pump power |
180W |
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
Dimensions (Pump) |
185 x 100 x 210 mm (L x W x H) |
Weight(Spin Coater) |
10KG |
Weight(Pump) |
4.5KG |
Relative humidity |
< 85% |
Ambient temperature |
0-40℃ |
Warranty |
1 year |
