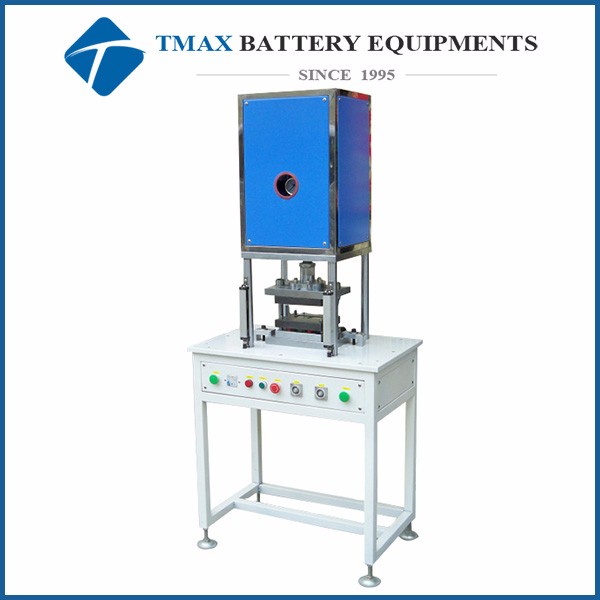

Lithium polymer battery aluminum film punch cell case forming machine
Model Number:
TMAX-JK-CXJType:
Punch Forming MachineDimension(L*W*H):
Max. die size is 160mm (L) x 120mm (W) x 6mm (H)Net Weight:
150kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Lithium polymer battery aluminum film punch cell case forming machine
TMAX-JK-CXJ is a CE Certified cup forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, adjustable depth (spacers is included in standard package) to directly match the electrodes cut by electrode cutting machine.
SPECIFICATIONS:
|
Customized Die Size |
Max. die size is 160mm (L) x 120mm (W) x 3/4/5/6mm (H) |
|
Air Pressure Requirement |
0.6MPa~0.8MPa |
|
Max. Distance between Top and Bottom Die |
75mm |
|
Working Voltage |
110 - 240V AC, single phase |
|
Max. Power Consumption |
100W |
|
Max. Cup Depth to Punch |
< 6.0 mm |
|
Max. Punching Pressure |
10 metric tons |
|
Stroke Frequency |
< 8 seconds per trial |
|
AL Laminated Film |
Thickness of Aluminum Laminated Film: 0.11 - 0.20 mm acceptable |
|
Acessories |
All necessary accessories are included for immediate use |
|
Net Weight |
150kg |
|
Product Dimensions |
800x500x1850mm |
|
Compliance |
CE Certificate |
|
Warranty |
Two Year limited warranty with lifetime support |
