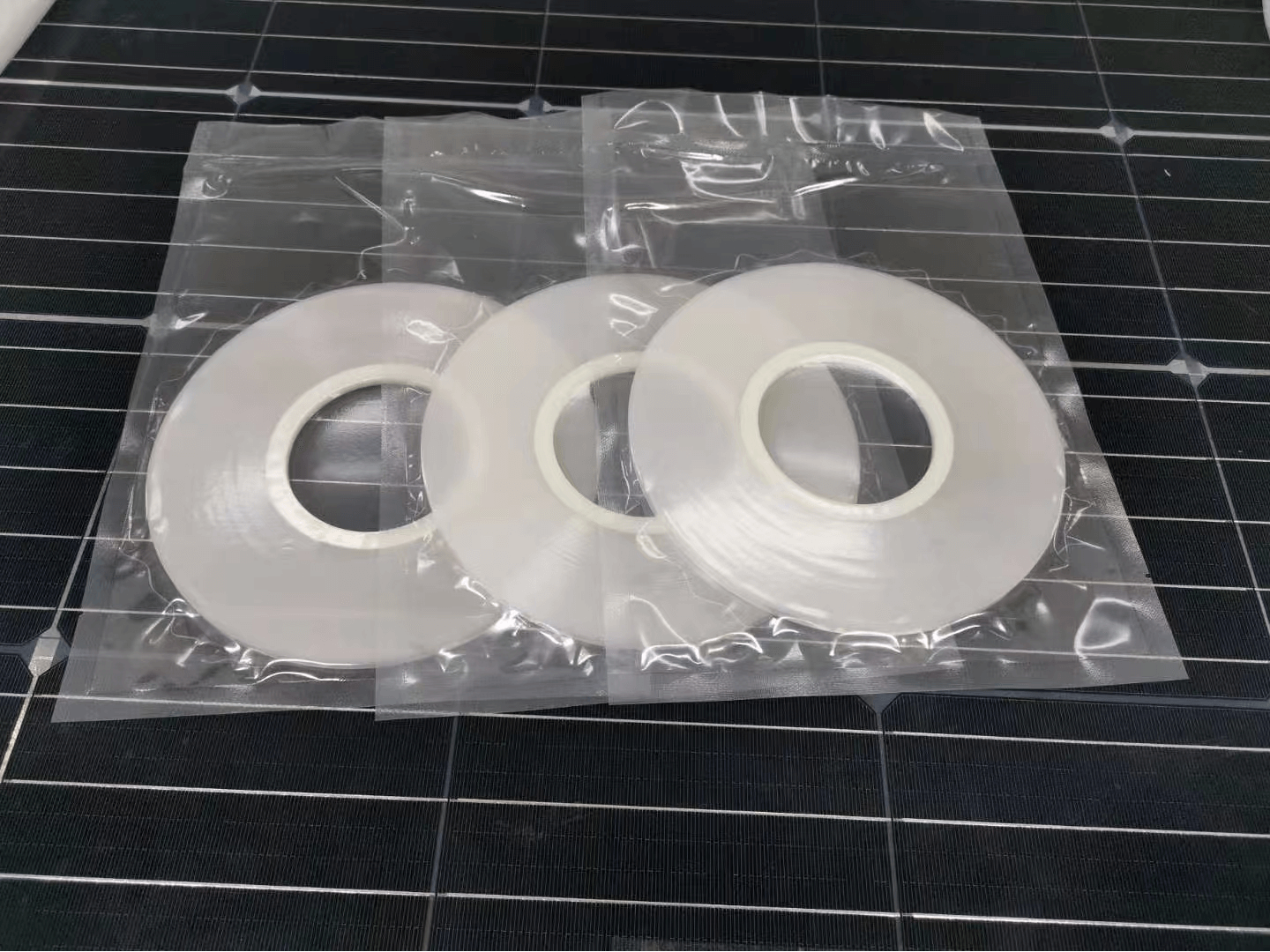

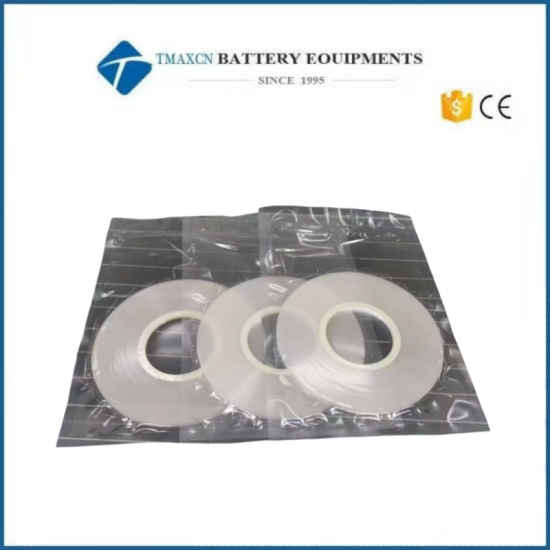

Lithium Battery Materials Hot Melt Adhesive Tape For Battery Tab
Model Number:
TMAX-HMACompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Lithium Battery Materials Hot Melt Adhesive Tape For Battery Tab
Product Structure
|
Layer Composition |
Connectivity Layer 25μ Functional Layer 50μ Connectivity Layer 25μ |
|
Total Thickness |
100μm |
|
Layer Ratio |
25/50/25μm |
|
Melting Point |
145/165/145℃ |
Product Performance Parameters
|
Project |
Standard |
Measurement Tools |
|
Width |
X±0.1 Mm |
Light Microscope |
|
Thickness |
100±10%Μm |
Digimatic Micrometer |
|
The Thickness Ratio Of Each Layer |
A:B:C =1:2:1 |
Metallographic Microscope |
|
Tensile Strength |
≥ 30Mpa |
Universal Test Machine |
|
Extensibility |
≥ 500% |
Universal Test Machine |
|
Packaging Strength With Tab (Metal Band) |
≥2.1N/Mm |
Universal Test Machine |
|
Packaging Strength With Aluminum-Laminated Film |
≥4N/Mm |
Universal Test Machine |
|
Packaging Strength After Soaking With Tab (Metal Band) |
≥1.8N/Mm |
Universal Test Machine |
DSC
