Lithium Battery Electrode Sheet Cutter Machine for Battery Big Electrode Cutting after Coating Process

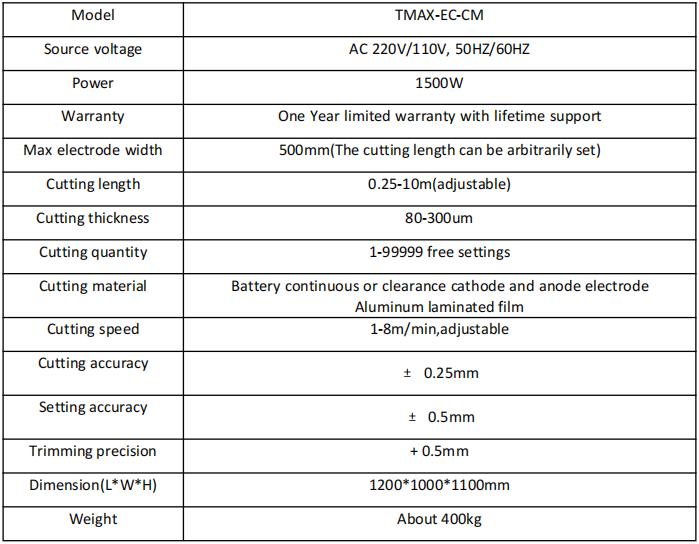

Model Number:
TMAX-EC-CMInput Power:
1500WDimension(L*W*H):
1200*1000*1100mmNet Weight:
about 400kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION

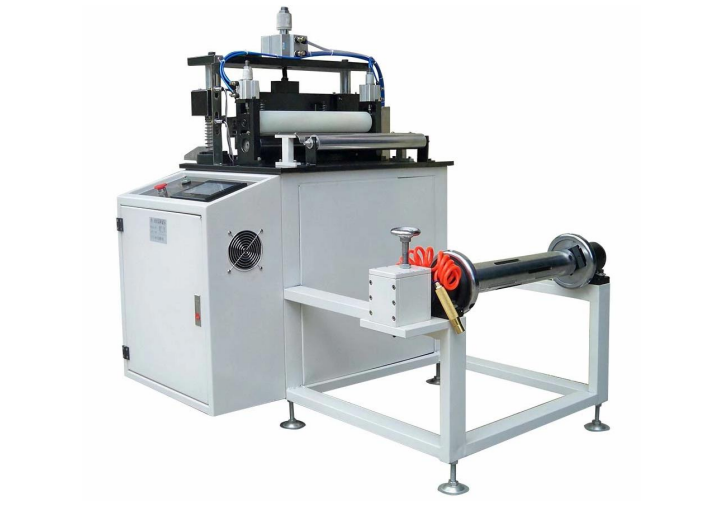

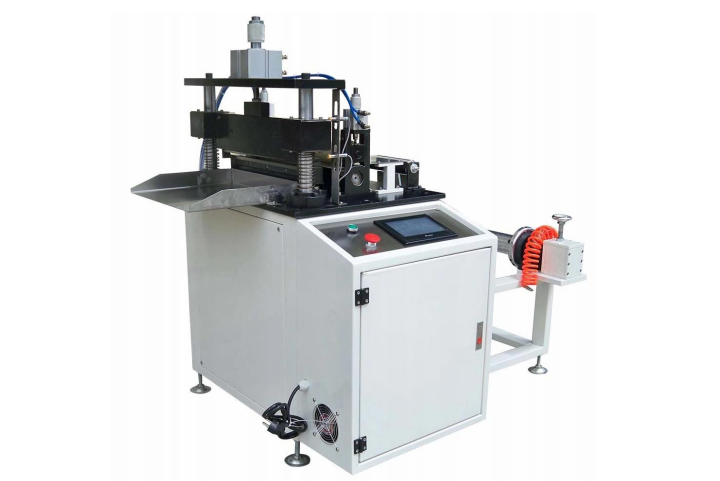

Lithium Battery Electrode Sheet Cutter Machine for Battery Big Electrode Cutting after Coating Process
1. The Automatic shear cutting machine is used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cut big electrode is more easy for slitting or punching to small pieces for battery making.
2.This cutter machine can also used for aluminum laminated film cutting.
3. TMAX-EC-CM model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.
